Key Features
- 2505mAh lithium-ion cell optimized for high output
- 22A continuous discharge capability
- Dual Stripping (DS) process for reduced internal resistance
- Supports fast charging up to 4.14A
- Second-generation cathode tag with reinforced poly seal
Overview

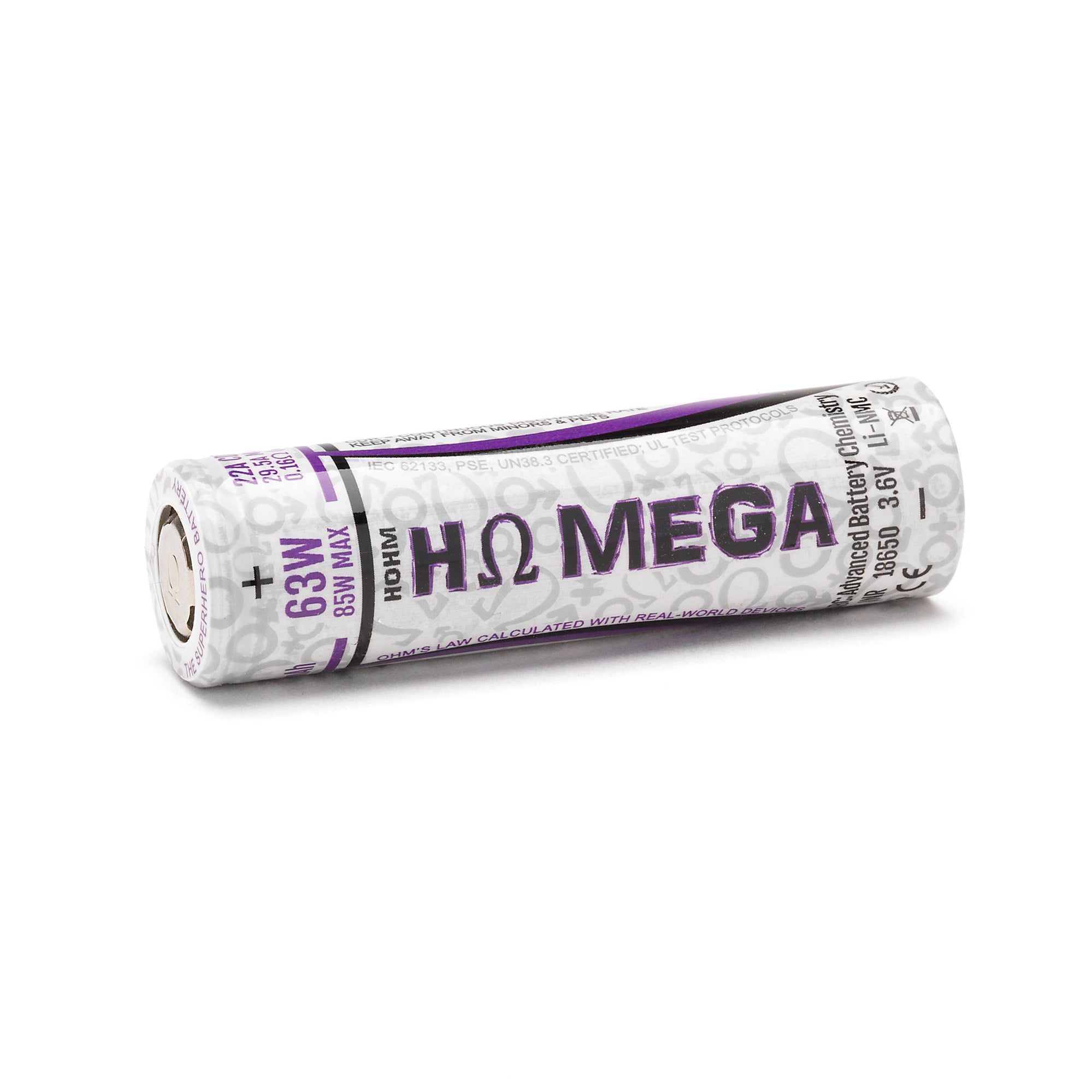

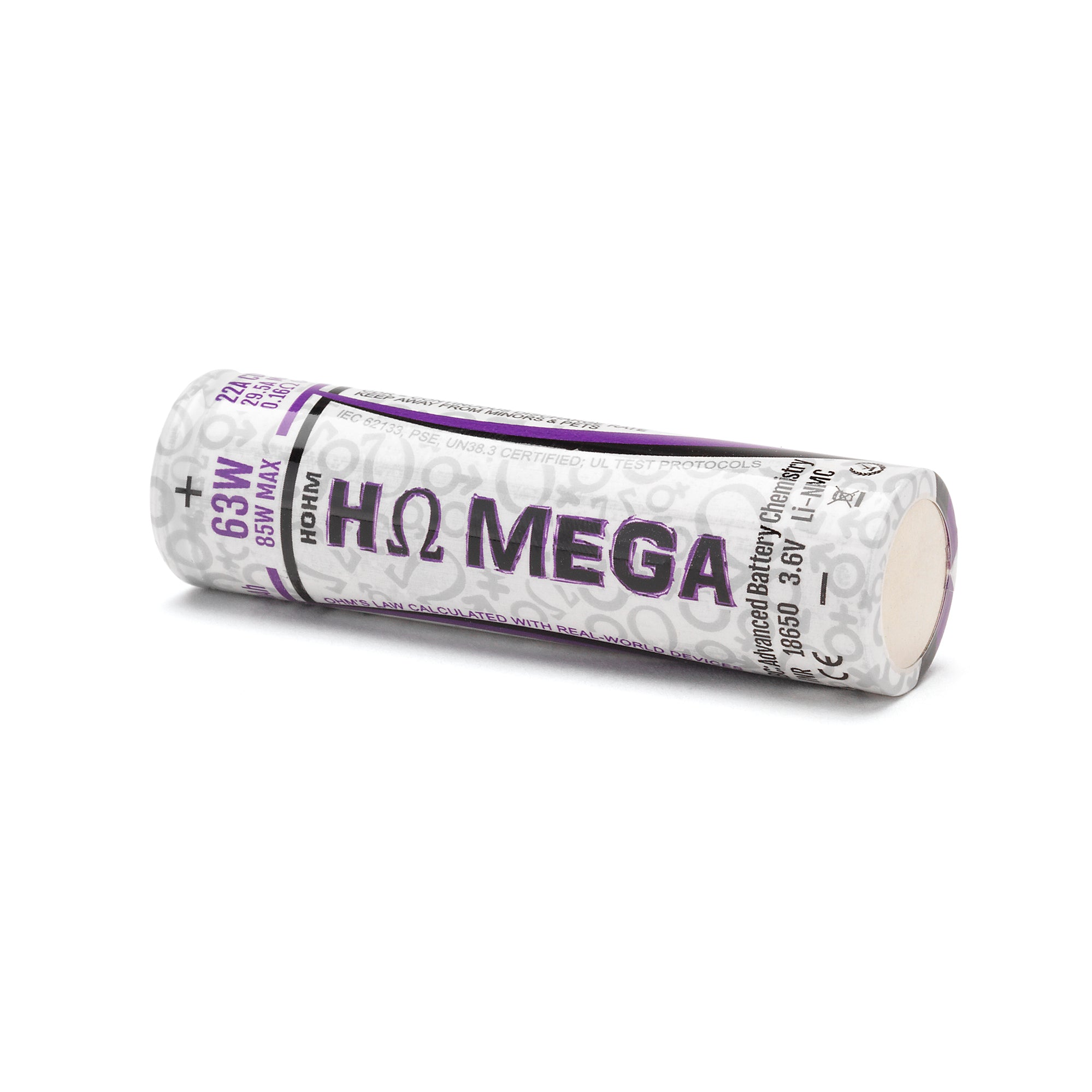

The Hohm Tech Mega 18650 is a high-performance lithium-ion cell engineered for applications requiring strong continuous output and dependable thermal stability. With a nominal capacity of 2505mAh and a 22A continuous discharge rating, this cell delivers consistent power under demanding conditions. Advanced manufacturing processes, including Dual Stripping and an upgraded cathode interface, contribute to improved efficiency, durability, and long-term performance.
Applications / Uses
- High-output battery pack assemblies
- Portable power equipment
- Custom rechargeable energy systems
- High-load electronic devices
- Performance-oriented power builds
SPECIFICATIONS
| Manufacturer | Hohm Tech |
| Model | Mega |
| Size | 18650 |
| Positive Terminal | Flat Top |
| Nominal Capacity | 2505mAh |
| Continuous Discharge Rating | 22A |
| Nominal Voltage | 3.65V |
| Maximum Voltage | 4.2V |
| Discharge Cut-Off Voltage | 2.5V |
| Protected | No |
| Rechargeable | Yes |
| Approx. Dimensions | 18mm × 65.5mm |
| Approx. Weight | 49.6g |
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or for e-cigarettes, vaporizers, or similar devices.
-
Thermal Runaway: A chain reaction where heat from a failing battery
causes further overheating, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid damage, and store batteries in a cool, dry place.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. Continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger specifically designed for lithium-ion batteries and ensure the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to extreme heat, fire, or liquids.
- Do not short circuit, puncture, crush, or modify the battery.
- Do not charge or discharge beyond the manufacturer’s voltage range.
- Do not dispose of in regular trash—always recycle at approved facilities.
- Emergency Response: If the battery overheats, emits smoke, or swells, move it to a non-flammable surface (e.g., sand or concrete) and stop use immediately. In case of fire, use a Class D fire extinguisher or sand. Do not use water.
