Description

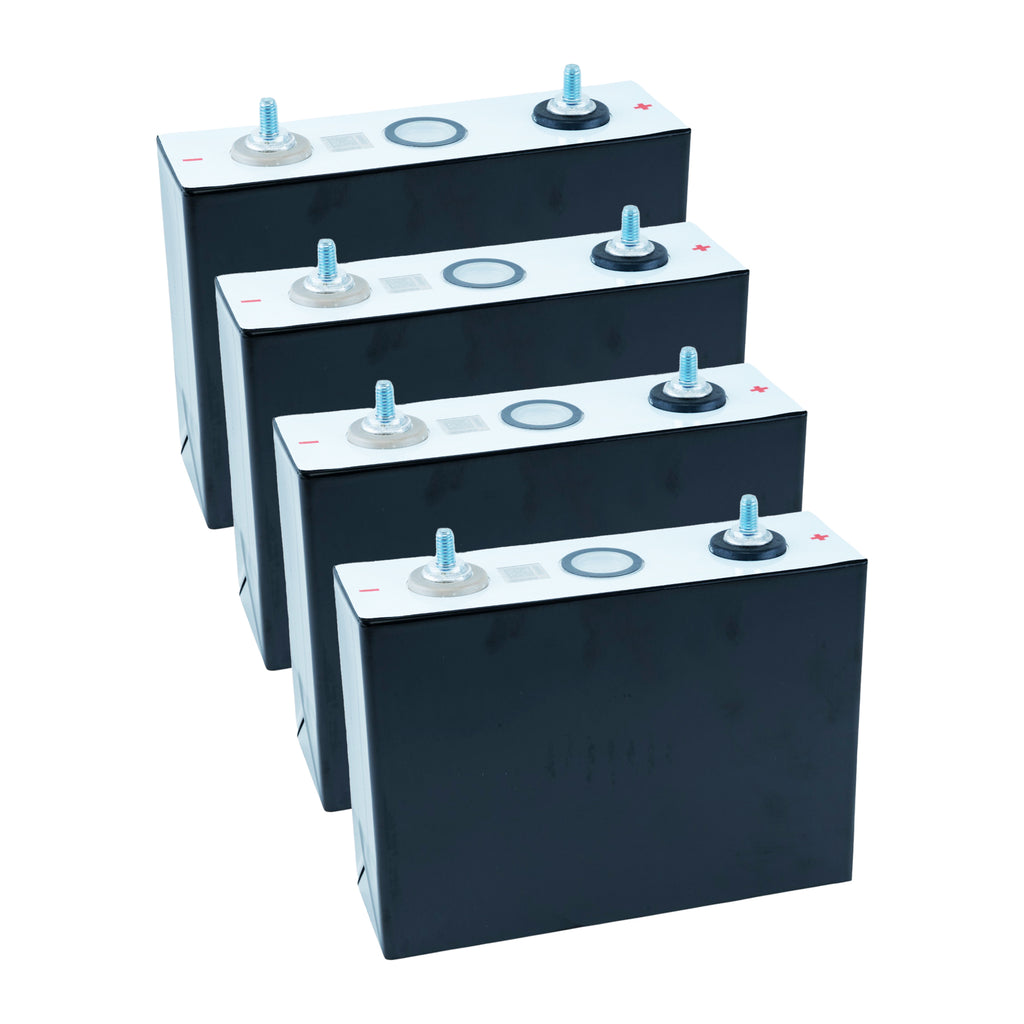

Designed for high-demand applications, the BYD 3.2V 102Ah LiFePO4 Prismatic Cell – Pack of 4 offers reliable, long-term energy storage for a range of systems including solar setups, electric vehicles, RV battery banks, and custom power projects. Manufactured by BYD, a global leader in lithium battery technology, these prismatic cells deliver dependable performance and exceptional longevity.

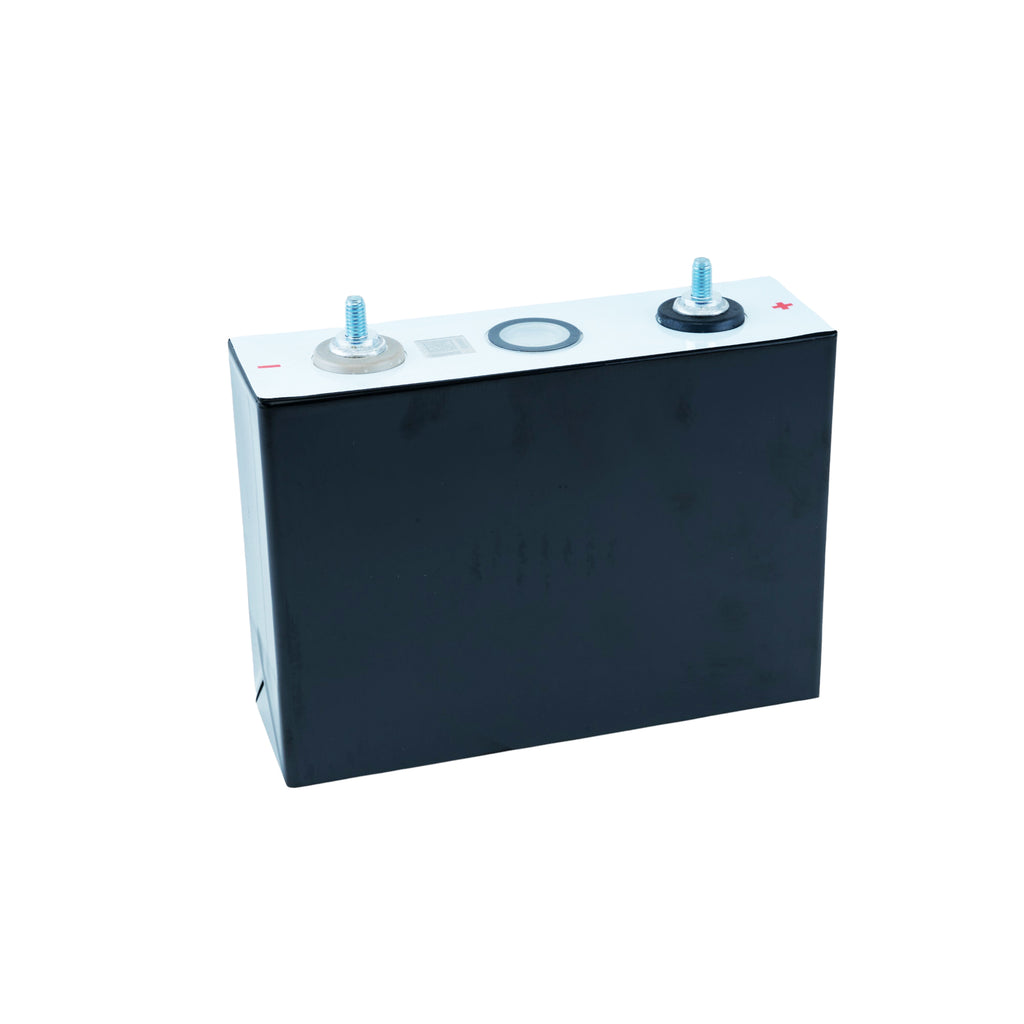

Each cell is rated at a nominal voltage of 3.2V with a capacity of 102Ah, optimized for both energy density and footprint. Capable of more than 3000 charge-discharge cycles, and supporting a maximum pulse discharge current of 400A, this cell is engineered for efficiency and durability in continuous use.

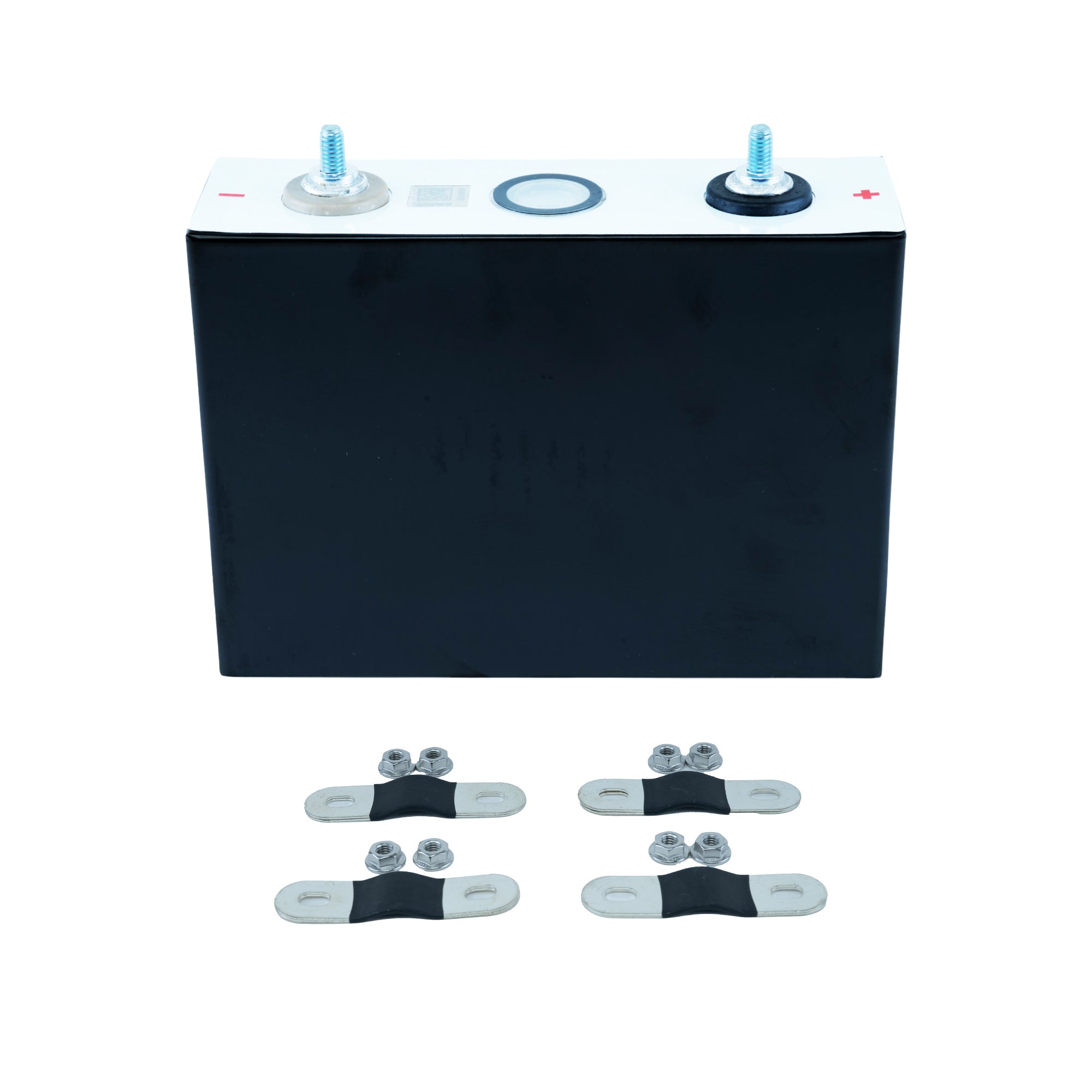

- Included: 4 x BYD LiFePO4 Prismatic Cells – 102Ah, 3.2V each
- Capacity & Voltage: 102Ah nominal capacity, 3.2V per cell
- Cycle Life: Rated for over 3000 cycles at 80% depth of discharge
- Discharge Current: Continuous up to 1C; Pulse up to 400A (30s)
- Charging Support: Maximum 1C charge rate with standard 0.2C recommended
- Thermal & Electrical Safety: Stable operation with low internal resistance and integrated safeguards

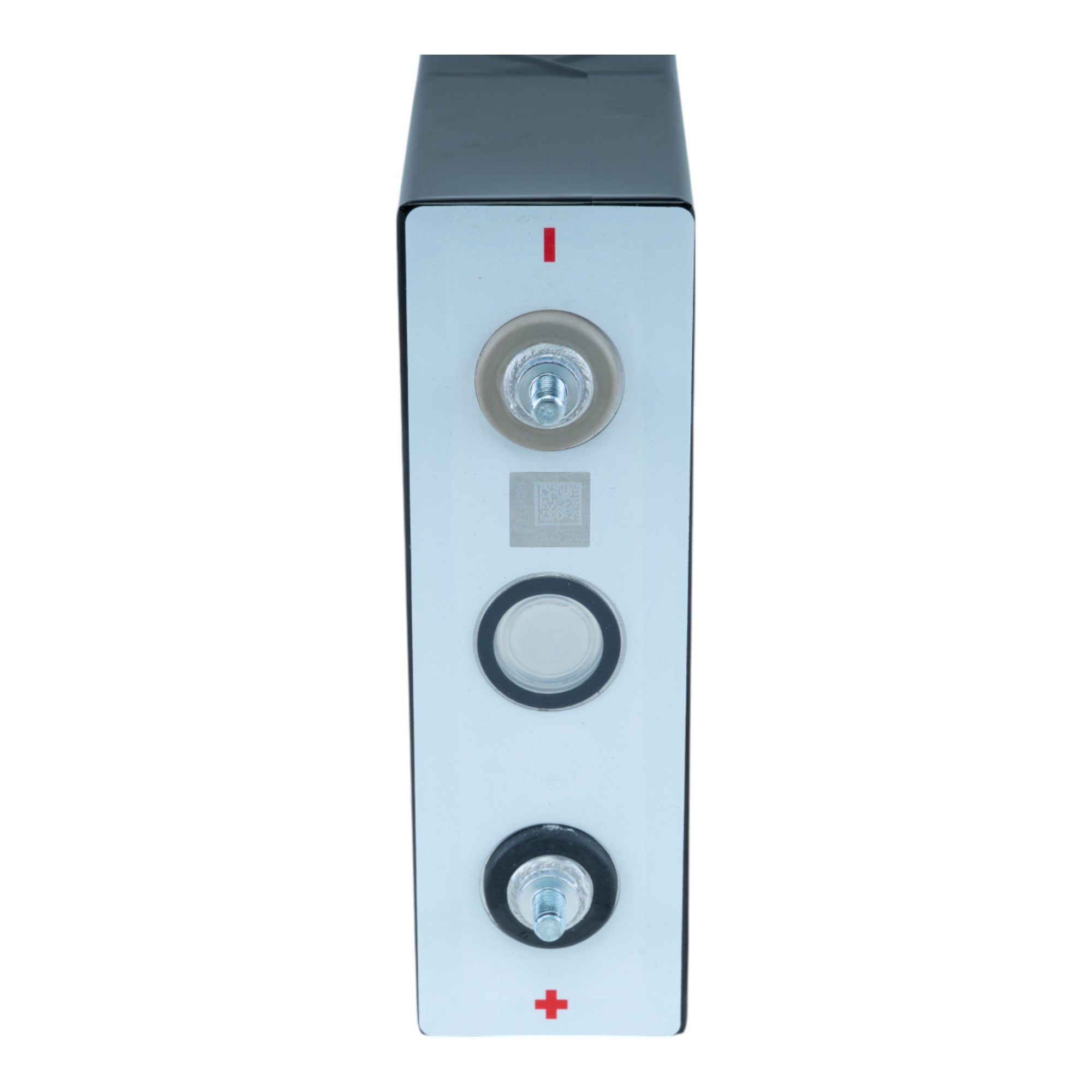

- Physical Dimensions: 160mm (W) x 49.9mm (T) x 116mm (H); 118.5mm including terminal bolts
- Cell Weight: Approximately 1.98 ± 0.1kg
- Eco-Friendly Composition: Free of mercury, leak-resistant, recyclable materials
Ideal for both professional and DIY battery pack builders, these BYD 102Ah LiFePO4 cells are engineered to support demanding power applications while maintaining stability, longevity, and efficiency throughout their service life.
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or for e-cigarettes, vaporizers, or similar devices.
-
Thermal Runaway: A chain reaction where heat from a failing battery
causes further overheating, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid damage, and store batteries in a cool, dry place.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. Continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger specifically designed for lithium-ion batteries and ensure the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to extreme heat, fire, or liquids.
- Do not short circuit, puncture, crush, or modify the battery.
- Do not charge or discharge beyond the manufacturer’s voltage range.
- Do not dispose of in regular trash—always recycle at approved facilities.
- Emergency Response: If the battery overheats, emits smoke, or swells, move it to a non-flammable surface (e.g., sand or concrete) and stop use immediately. In case of fire, use a Class D fire extinguisher or sand. Do not use water.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
