Description
Grade A Cells with 1 year in-house warranty for manufacturer defects
1 Busbar and set of 2 nuts/bolts included with each cell.
- High Capacity and Efficiency: Offers a standard capacity of 230 Ah at 1C discharge, ensuring robust performance and extended lifespan for dependable power delivery.
- Advanced Safety Features: Includes comprehensive safety tests such as crush, thermal stability, and overcharge tests, achieving EUCAR safety levels to ensure secure operation under various conditions.
- Durable Construction: Constructed with a sturdy Al3003 H14 can and PET insulation tape, it is designed for resilience in demanding environments, with a focus on longevity and stability.
- Optimized for Environmental Extremes: Capable of functioning effectively between -20°C to 55°C, making it suitable for diverse climates and challenging operational conditions.
- Longevity and Reliability: Proven to exceed 4000 charge/discharge cycles at 25°C, highlighting its durability and reliability for long-term applications.
SPECIFICATIONS
| Manufacturer: | CALB |
| Model: | L172F230B |
| Form: | Prismatic |
| Nominal Capacity: | 230Ah |
| Continuous Discharge Rating (max): | 1C/1C |
| Nominal Voltage: | 3.2V |
| Discharge cut-off Voltage: | 3.65V/2.5V |
| Cycle Life: | 4,000 cycles |
| Protected: | NO, UNPROTECTED. |
| Rechargeable: | Yes |
| Approx. Dimensions: | 173.93mm x 53.72mm x 217.9mm |
| Approx. Weight: | 4200g |
| Country of Origin: | China |

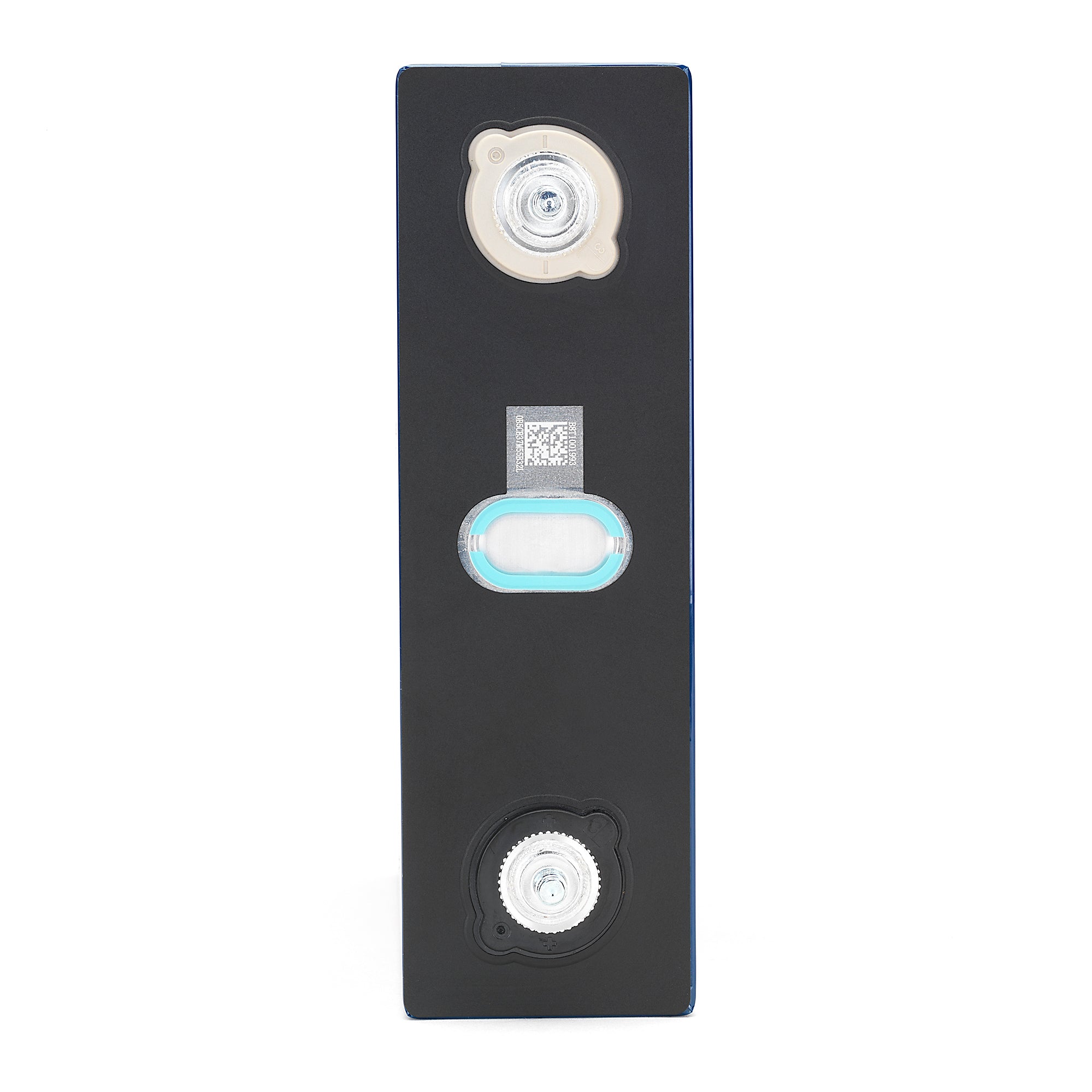

| Data Specification Sheet: | CALB 230Ah 3.2V LiFePO4 Prismatic Battery - Grade A |
You MUST read the safety warnings and resources before purchasing, using, and/or handling batteries.
⚠ WARNING:
Use caution as misusing or mishandling the battery may cause a FIRE or EXPLOSION which may result in personal injury, property damage, or death. The user must have an appropriate understanding of the potential dangers of LITHIUM ION BATTERIES before purchase and usage. No express or implied guarantee of compatibility, suitability, or fitness for any particular purpose or device can be made. This battery is manufactured and sold for the intended use of system integrations with proper protection circuitry or battery packs with a BMS (battery management system) or PCB (circuit board/module). This battery is neither designed nor intended to be used with an E-CIGARETTE, VAPORIZER, or similar device and MUST NOT be used with such devices due to RISK OF FIRE or EXPLOSION. If purchasing this battery for resale purposes, you MUST forward ALL warnings to ALL customers for their reference and safety!
This cell is unprotected and intended for use in protected battery packs only and NOT individually or as a standalone product. In order to operate safely it must have additional protection in the form of a PCB (printed circuit board) or BMS (battery management system), which is not included.
🔒 1-Year Warranty
We stand behind the quality of our LiFePO₄ (LFP) cells and offer a 1-Year Warranty that covers manufacturer defects. If your battery experiences a verified factory defect within this period, we will provide a replacement.
Terms:
Warranties apply only to the original purchaser and are non-transferable.
Warranty claims require proof of purchase, serial number verification, and test results.
A properly configured BMS is mandatory. Warranty is void if a BMS is not used or misconfigured.
✅ Covered Manufacturer Defects:
Internal short circuits due to factory defects.
Electrolyte leakage (not caused by physical damage).
Cells failing to meet advertised capacity under proper use.
Factory defects in welds or terminals.
❌ Not Covered:
Overcharging, over-discharging, or exceeding rated current.
Failure due to lack of a proper BMS or incorrect BMS settings.
Cells installed into pre-existing battery packs where failure results from pack imbalance or BMS issues.
Physical damage, including punctures, crushing, or exposure to heat/water.
Natural capacity fade due to aging and cycle life.
⚠ Important Safety Warnings
Improper handling or misuse of this Lithium Iron Phosphate (LFP) battery can result in ELECTRICAL DAMAGE, FIRE, or THERMAL RUNAWAY, causing personal injury, property damage, or equipment failure. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Voltage Limits: Always operate within the recommended voltage range (2.5V–3.65V). Exceeding these limits can degrade performance, damage the cell, or pose safety risks.
- Thermal Stability: LFP cells are thermally stable, but short circuits, overcharging, or physical damage can still cause overheating or failure.
- Storage & Transport: Always store cells in protective cases or fully assembled battery packs with proper protection circuitry (BMS). Never store loose cells in bags or near conductive materials (e.g., tools, wires, or metal objects) that could contact the terminals and cause a short circuit. Store in cool, dry conditions away from physical or electrical hazards.
- Inspection: Do not use if the battery casing, wrapper, or terminal is damaged, dented, leaking, or bulging. These are signs of instability and potential failure.
- Charging: Use a smart charger specifically designed for LFP cells and ensure that the charger's voltage matches the battery's specifications. Monitor charging and avoid leaving batteries unattended.
-
Prohibited Activities:
- Do not expose the battery to high heat, fire, or liquid.
- Do not short circuit, puncture, crush, or modify the cell.
- Do not charge or discharge beyond the manufacturer’s specified voltage range.
- Do not dispose of in regular trash—always recycle responsibly.
- Emergency Response: If the battery overheats, emits smoke, or swells, move it to a non-flammable surface (e.g., sand or concrete) and stop use immediately. In case of fire, use a Class D fire extinguisher or sand. Do not use water.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium Iron Phosphate (LFP) cells are designed for specific applications and must be integrated into systems with proper protection circuitry. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to their customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
