Key Features
- 2000mAh lithium-ion cell optimized for high current output
- 30A continuous discharge capability with thermal cut-off
- Fast charge support up to 4A (CCCV)
- Stable performance across wide temperature ranges
- Designed for durability with strong cycle life retention
Overview

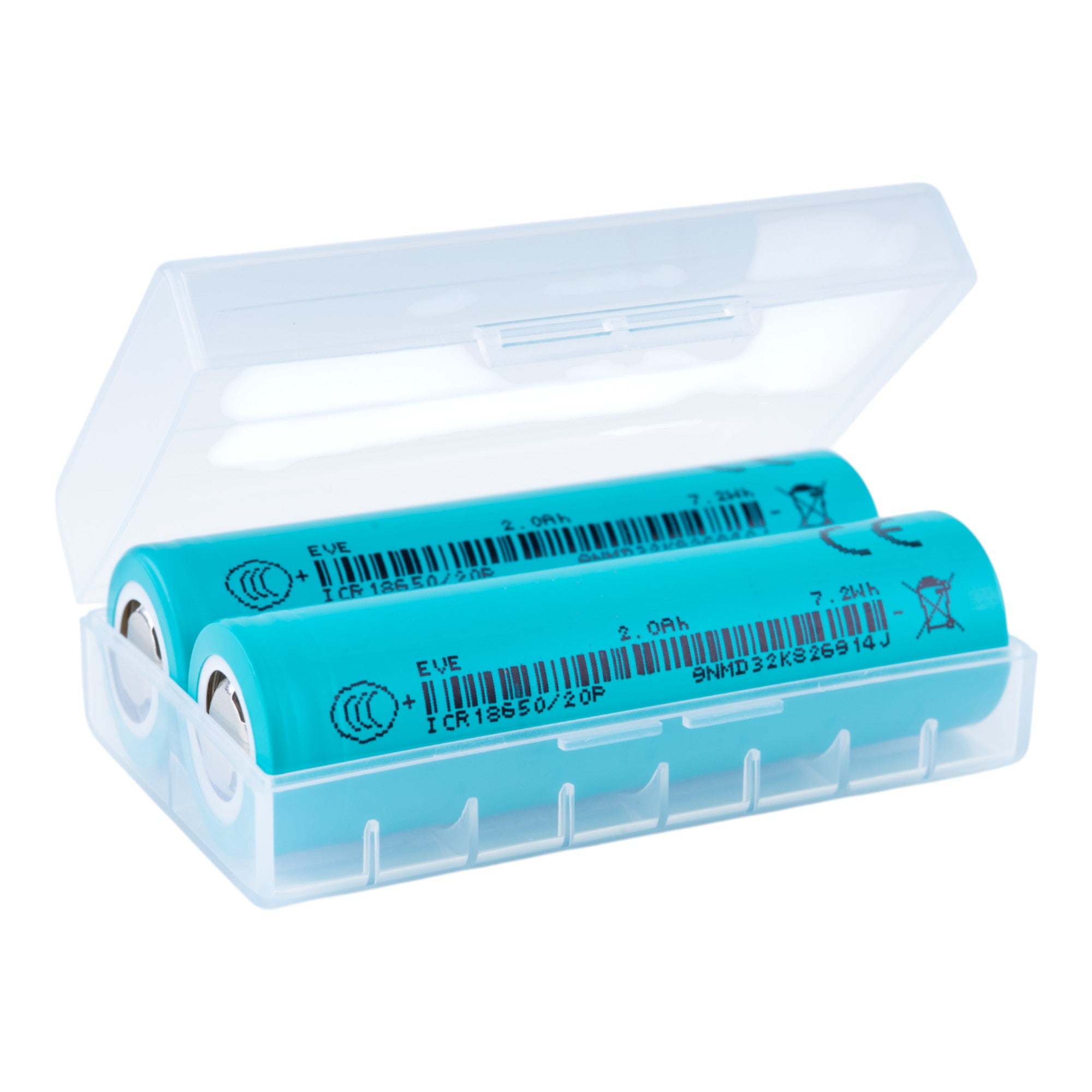

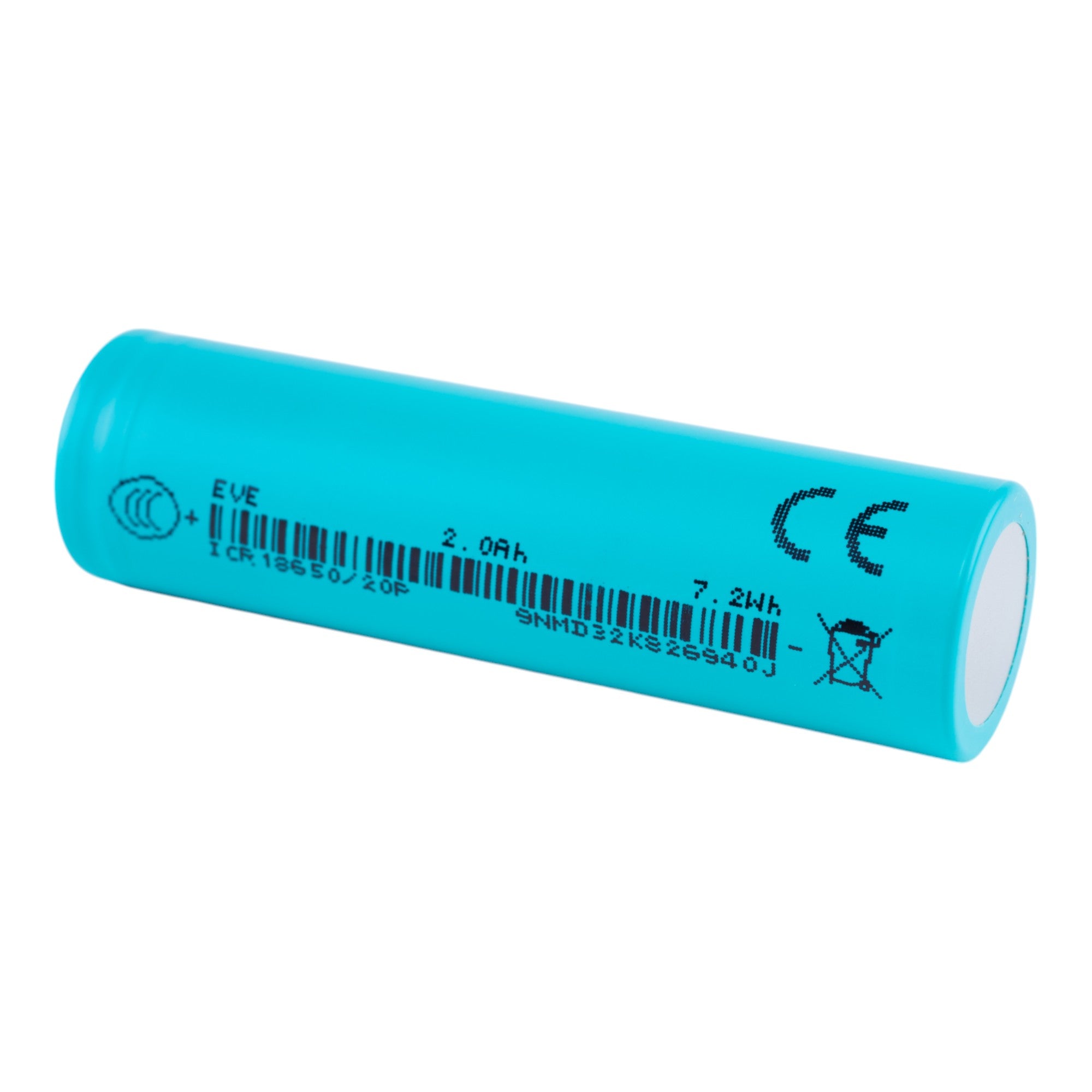

The EVE 20P 18650 is a high-output lithium-ion battery engineered for applications that require strong current delivery and dependable thermal stability. With a nominal capacity of 2000mAh and a continuous discharge rating of up to 30A under controlled temperature conditions, this cell delivers consistent performance in demanding rechargeable power systems. Its fast-charging capability and proven safety compliance make it a reliable choice for high-load energy applications.
Applications / Uses
- High-output battery pack assemblies
- Power tools and industrial equipment
- Custom rechargeable energy systems
- Portable high-current electronics
- Performance-focused power builds
SPECIFICATIONS
| Manufacturer | EVE |
| Model | ICR18650-20P |
| Size | 18650 |
| Positive Terminal | Flat Top |
| Nominal Capacity | 2000mAh |
| Continuous Discharge Rating | 30A (80°C cut-off) |
| Nominal Voltage | 3.6V |
| Maximum Voltage | 4.2V |
| Discharge Cut-Off Voltage | 2.5V |
| Protected | No |
| Rechargeable | Yes |
| Approx. Dimensions | 18.35mm × 65.05mm |
| Approx. Weight | 48g |
| Data Specification Sheet | EVE 20P Datasheet |
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or for e-cigarettes, vaporizers, or similar devices.
-
Thermal Runaway: A chain reaction where heat from a failing battery
causes further overheating, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid damage, and store batteries in a cool, dry place.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. Continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger specifically designed for lithium-ion batteries and ensure the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to extreme heat, fire, or liquids.
- Do not short circuit, puncture, crush, or modify the battery.
- Do not charge or discharge beyond the manufacturer’s voltage range.
- Do not dispose of in regular trash—always recycle at approved facilities.
- Emergency Response: If a cell shows signs of thermal runaway (e.g., smoke, swelling, hissing, or heat), stop use immediately and, if it can be done safely, move it to a non-flammable surface (e.g., concrete or sand) away from combustible materials. Lithium-ion cells burn as Class B fires — use an ABC / dry-chemical fire extinguisher, or douse with large amounts of water to cool the cell and prevent the fire from spreading. Do not rely on a small spray; thorough cooling is required, and cells can reignite from residual heat, so monitor the area afterward. (Class D extinguishers are intended for lithium-metal batteries, not lithium-ion.) For any fire beyond a single small cell, evacuate and call emergency services.
