Description

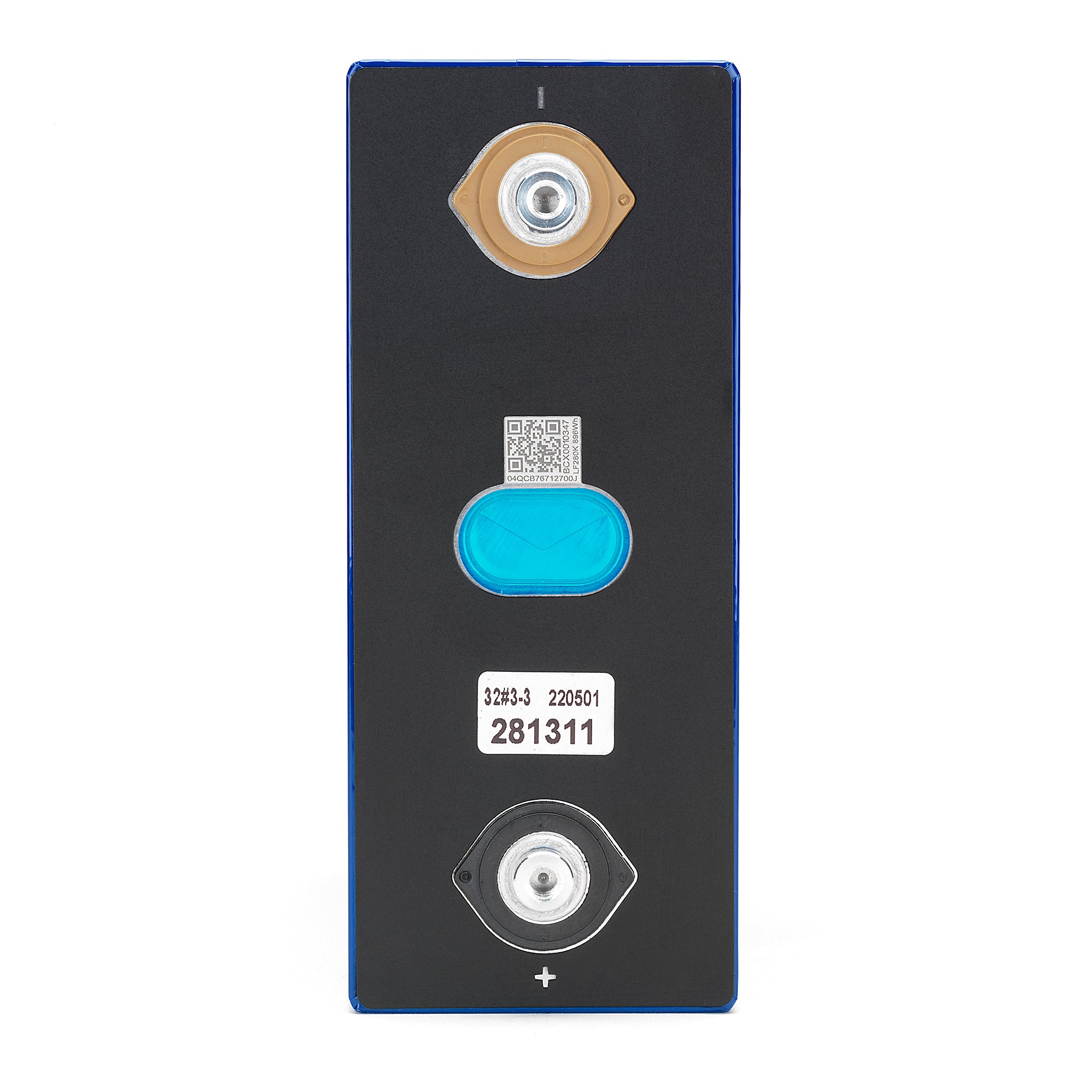

Discover the power of EVE LF280K 280Ah 3.2V LiFePO4 Prismatic Battery, a pinnacle of innovation and reliability designed by EVE Energy. Tailored for high-demand applications such as electric vehicles, solar energy storage, and backup power systems, this Grade A battery offers an impressive nominal capacity of 280Ah. It provides robust power with a continuous charge/discharge rating of 1C (280A) and can handle up to 2C (560A) for short bursts, ensuring versatility across various high-load environments. Engineered for longevity, it boasts up to 6,000 cycles at a nominal voltage of 3.2V, making it an eco-friendly choice for sustained usage. The battery's compact design and relatively low weight make it an excellent choice for systems where space and weight efficiency are crucial.
Grade A Cells with 1 year in-house warranty for manufacturer defects
1 Busbar and set of 2 nuts/bolts included with each cell.
- High Capacity: 280Ah of energy storage to power demanding applications, ensuring long-term reliability and efficiency.
- Robust Performance: Continuous charge/discharge at 1C (280A) with peak capabilities of 2C (560A) for high-power applications.
- Extended Cycle Life: Offers up to 6,000 charge/discharge cycles, making it a durable choice for renewable energy systems.
- Optimal Design: Prismatic form factor with dimensions of 173.7mm x 72.0mm x 207.5mm, optimized for compact installations.
- Low Impedance: Superior electrical conductivity with an AC impedance resistance of ≤0.25mΩ, enhancing overall efficiency.
SPECIFICATIONS
| Manufacturer: | EVE Energy |
| Model: | LF280K |
| Form: | Prismatic |
| Nominal Capacity: | 280Ah |
| Nominal Voltage: | 3.2V |
| Cutoff Voltage Charge/Discharge: | 3.65V/2.5V |
| Max Continuous Charge/Discharge Current: | 1C/1C |
| Max Pulse (30s) Charge/Discharge Current: | 2C/2C |
| Cycle Life: | 6,000 cycles |
| Protected: | NO, UNPROTECTED. |
| Approx. Dimensions: | 173.7mm x 72.0mm x 207.5mm |
| Approx. Weight: | 5420g |
| Country of Origin: | China |
| Data Specification Sheet: | EVE LF280K Datasheet |
🔒 1-Year Warranty
We stand behind the quality of our LiFePO₄ (LFP) cells and offer a 1-Year Warranty that covers manufacturer defects. If your battery experiences a verified factory defect within this period, we will provide a replacement.
Terms:
Warranties apply only to the original purchaser and are non-transferable.
Warranty claims require proof of purchase, serial number verification, and test results.
A properly configured BMS is mandatory. Warranty is void if a BMS is not used or misconfigured.
✅ Covered Manufacturer Defects:
Internal short circuits due to factory defects.
Electrolyte leakage (not caused by physical damage).
Cells failing to meet advertised capacity under proper use.
Factory defects in welds or terminals.
❌ Not Covered:
Overcharging, over-discharging, or exceeding rated current.
Failure due to lack of a proper BMS or incorrect BMS settings.
Cells installed into pre-existing battery packs where failure results from pack imbalance or BMS issues.
Physical damage, including punctures, crushing, or exposure to heat/water.
Natural capacity fade due to aging and cycle life.
⚠ Important Safety Warnings
Improper handling or misuse of this Lithium Iron Phosphate (LFP) battery can result in ELECTRICAL DAMAGE, FIRE, or THERMAL RUNAWAY, causing personal injury, property damage, or equipment failure. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Voltage Limits: Always operate within the recommended voltage range (2.5V–3.65V). Exceeding these limits can degrade performance, damage the cell, or pose safety risks.
- Thermal Stability: LFP cells are thermally stable, but short circuits, overcharging, or physical damage can still cause overheating or failure.
- Storage & Transport: Always store cells in protective cases or fully assembled battery packs with proper protection circuitry (BMS). Never store loose cells in bags or near conductive materials (e.g., tools, wires, or metal objects) that could contact the terminals and cause a short circuit. Store in cool, dry conditions away from physical or electrical hazards.
- Inspection: Do not use if the battery casing, wrapper, or terminal is damaged, dented, leaking, or bulging. These are signs of instability and potential failure.
- Charging: Use a smart charger specifically designed for LFP cells and ensure that the charger's voltage matches the battery's specifications. Monitor charging and avoid leaving batteries unattended.
-
Prohibited Activities:
- Do not expose the battery to high heat, fire, or liquid.
- Do not short circuit, puncture, crush, or modify the cell.
- Do not charge or discharge beyond the manufacturer’s specified voltage range.
- Do not dispose of in regular trash—always recycle responsibly.
- Emergency Response: If the battery overheats, emits smoke, or swells, move it to a non-flammable surface (e.g., sand or concrete) and stop use immediately. In case of fire, use a Class D fire extinguisher or sand. Do not use water.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium Iron Phosphate (LFP) cells are designed for specific applications and must be integrated into systems with proper protection circuitry. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to their customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
