Key Features
- 314Ah LiFePO4 Capacity: Built for large-scale energy storage and extended runtime.
- 8,000-Cycle Lifespan: Optimized for long-term reliability.
- 0.5C Continuous / 1C Peak Output: Balanced power delivery for demanding systems.
- Ultra-Low Impedance: ≤0.18mΩ for efficient energy transfer.

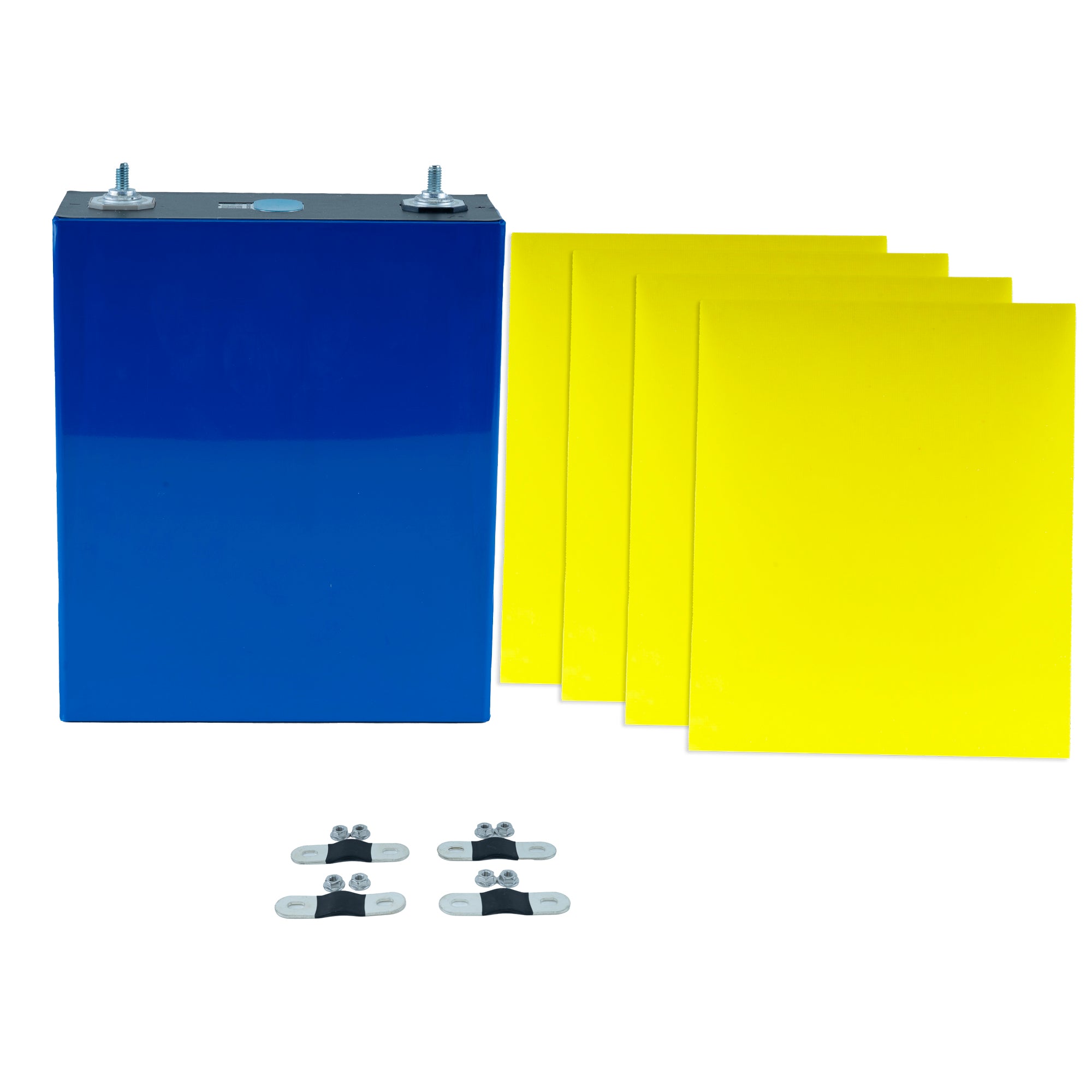

- Prismatic Cell with Busbars: Designed for robust, low-resistance pack assembly.
Overview

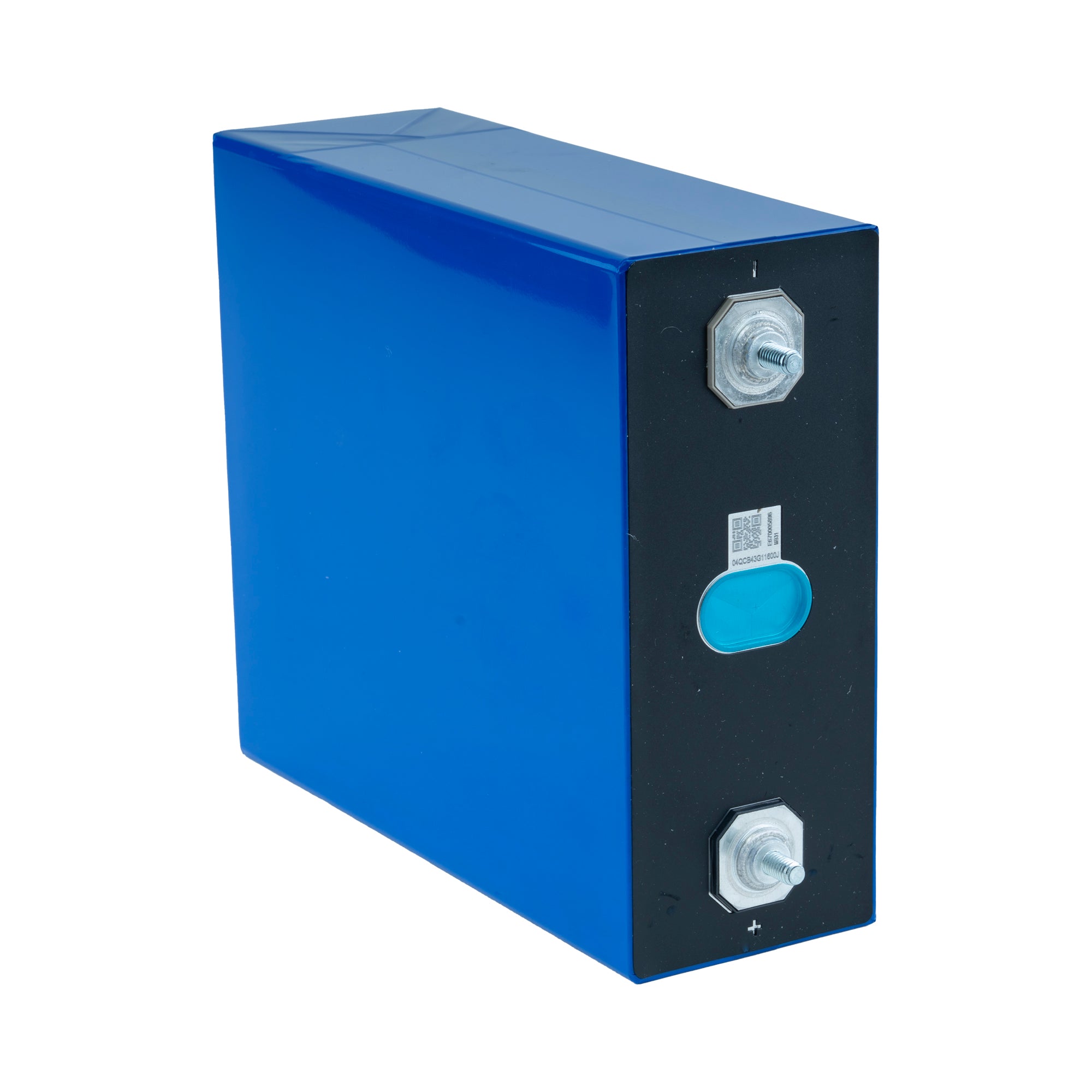

The EVE MB31 314Ah 3.2V prismatic lithium iron phosphate battery cell delivers high capacity, exceptional cycle life, and efficient power handling. Designed for large battery banks and long-term energy systems, this Grade A cell provides a dependable foundation for advanced energy storage solutions.
Applications / Uses
- High-capacity solar and renewable energy banks
- Electric mobility and transport platforms
- Backup and off-grid power systems
- Industrial energy storage installations
- Custom LiFePO4 battery assemblies
Specifications
| Manufacturer: | EVE Energy |
| Model: | MB31 |
| Form: | Prismatic |
| Nominal Capacity: | 314Ah |
| Nominal Voltage: | 3.2V |
| AC Impedance Resistance (1kHz): | ≤0.18mΩ |
| Continuous Charge / Discharge Rating: | 0.5C (157A) |
| Maximum Charge / Discharge (30s): | 1C (314A) |
| Max Pulse (30s) Charge / Discharge Current: | 2C / 2C |
| Cycle Life: | 8,000 cycles |
| Protected: | No |
| Approx. Dimensions: | 173.7mm x 71.7mm x 204.6mm |
| Approx. Weight: | 5600g |
⚠ Important Safety Warnings
Improper handling or misuse of this Lithium Iron Phosphate (LFP) battery can result in ELECTRICAL DAMAGE, FIRE, or THERMAL RUNAWAY, causing personal injury, property damage, or equipment failure. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Voltage Limits: Always operate within the recommended voltage range (2.5V–3.65V). Exceeding these limits can degrade performance, damage the cell, or pose safety risks.
- Thermal Stability: LFP cells are thermally stable, but short circuits, overcharging, or physical damage can still cause overheating or failure.
- Storage & Transport: Always store cells in protective cases or fully assembled battery packs with proper protection circuitry (BMS). Never store loose cells in bags or near conductive materials (e.g., tools, wires, or metal objects) that could contact the terminals and cause a short circuit. Store in cool, dry conditions away from physical or electrical hazards.
- Inspection: Do not use if the battery casing, wrapper, or terminal is damaged, dented, leaking, or bulging. These are signs of instability and potential failure.
- Charging: Use a smart charger specifically designed for LFP cells and ensure that the charger's voltage matches the battery's specifications. Monitor charging and avoid leaving batteries unattended.
-
Prohibited Activities:
- Do not expose the battery to high heat, fire, or liquid.
- Do not short circuit, puncture, crush, or modify the cell.
- Do not charge or discharge beyond the manufacturer’s specified voltage range.
- Do not dispose of in regular trash—always recycle responsibly.
- Emergency Response: If the battery overheats, emits smoke, or swells, move it to a non-flammable surface (e.g., sand or concrete) and stop use immediately. In case of fire, use a Class D fire extinguisher or sand. Do not use water.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium Iron Phosphate (LFP) cells are designed for specific applications and must be integrated into systems with proper protection circuitry. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to their customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
