Key Features
- Professional-Grade Cell: 1000mAh 18500 lithium-ion battery for compact assemblies.
- High Output Performance: Up to 10A maximum continuous discharge; 15A maximum pulse (manufacturer rated).
- Flat Top Format: Optimized for integrated battery systems and pack builds.
- Unprotected Configuration: Best for applications with system-level protection.
- Consistent Operation: Designed to perform from -10°C to 60°C.
Overview

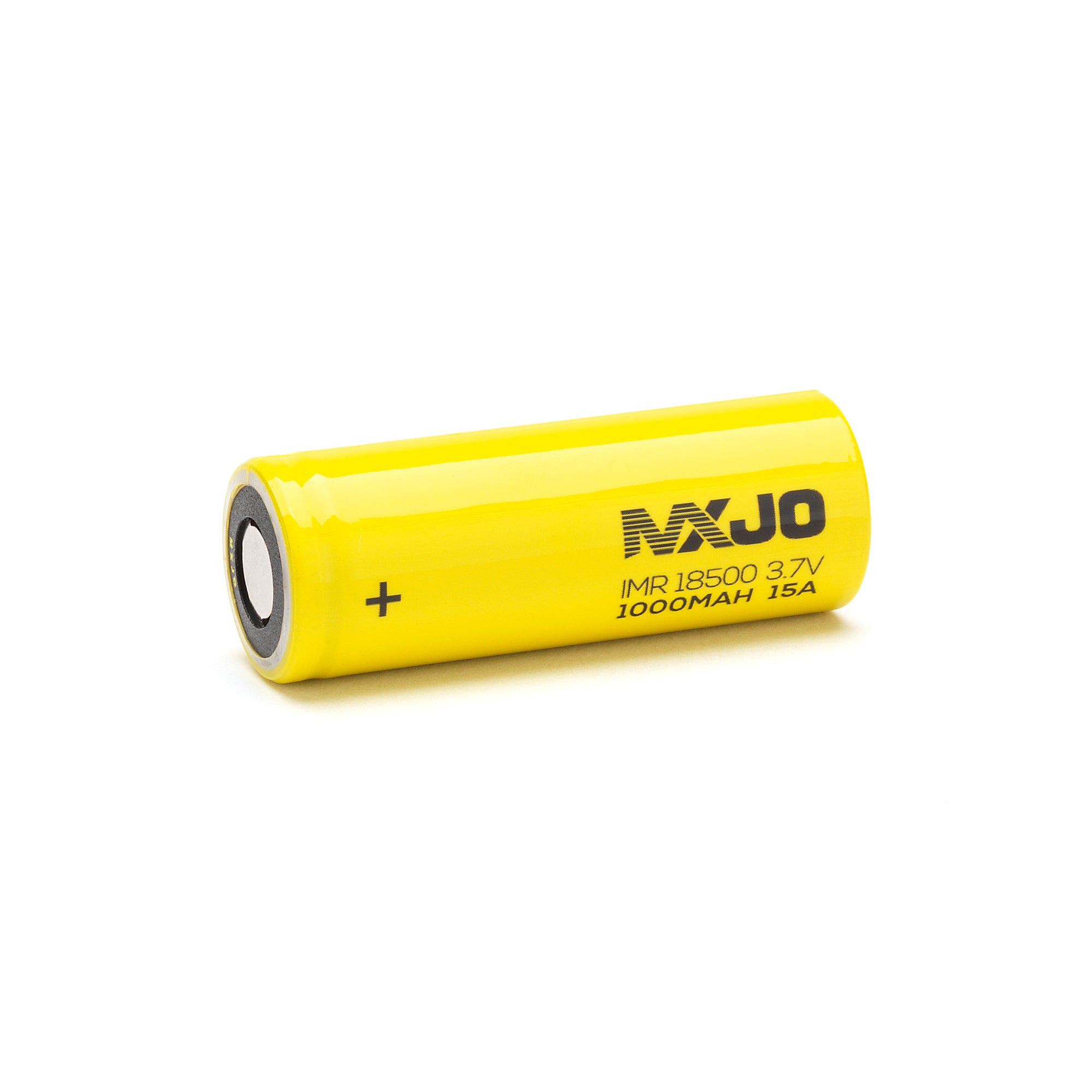

The MXJO 18500 1000mAh Battery is a compact lithium-ion power solution built for professional applications requiring reliable output in a reduced size. With a nominal voltage of 3.7V and manufacturer-rated high discharge capability, it supports demanding loads in properly engineered devices and battery packs. This cell is unprotected and must be used with appropriate safeguards and battery management.
Applications / Uses
- OEM battery pack assemblies
- Commercial electronic devices
- Power systems with integrated protection circuitry
- Laboratory and R&D environments
- Specialized portable equipment
SPECIFICATIONS
| Manufacturer: | MXJO |
| Size: | 18500 |
| Positive Terminal: | Flat Top |
| Nominal Capacity: | 1000mAh |
| Continuous Discharge Rating (max): | 10A Maximum Continuous / 15A Maximum Pulse (Manufacturer Rated) |
| Nominal Voltage: | 3.7V |
| Maximum Voltage: | 4.2V |
| Protected: | No (Unprotected) |
| Rechargeable: | Yes |
| Approx. Dimensions: | 18.11mm x 49.94mm |
| Approx. Weight: | 33.1g (Max) |
MXJO 18500 1000mAh Data Specification Sheet
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or for e-cigarettes, vaporizers, or similar devices.
-
Thermal Runaway: A chain reaction where heat from a failing battery
causes further overheating, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid damage, and store batteries in a cool, dry place.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. Continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger specifically designed for lithium-ion batteries and ensure the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to extreme heat, fire, or liquids.
- Do not short circuit, puncture, crush, or modify the battery.
- Do not charge or discharge beyond the manufacturer’s voltage range.
- Do not dispose of in regular trash—always recycle at approved facilities.
- Emergency Response: If a cell shows signs of thermal runaway (e.g., smoke, swelling, hissing, or heat), stop use immediately and, if it can be done safely, move it to a non-flammable surface (e.g., concrete or sand) away from combustible materials. Lithium-ion cells burn as Class B fires — use an ABC / dry-chemical fire extinguisher, or douse with large amounts of water to cool the cell and prevent the fire from spreading. Do not rely on a small spray; thorough cooling is required, and cells can reignite from residual heat, so monitor the area afterward. (Class D extinguishers are intended for lithium-metal batteries, not lithium-ion.) For any fire beyond a single small cell, evacuate and call emergency services.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
