Key Features
- High-Capacity 14500 Cell: 1000mAh rechargeable lithium-ion battery.
- Integrated Protection: Built-in PCB and pressure relief valve for enhanced safety.
- Button Top Configuration: Designed for professional and consumer devices requiring extended terminals.
- Robust Metal Housing: Nickel-plated stainless steel shell improves durability and conductivity.
- Long Lifecycle: Engineered for over 500 charge cycles.
Overview

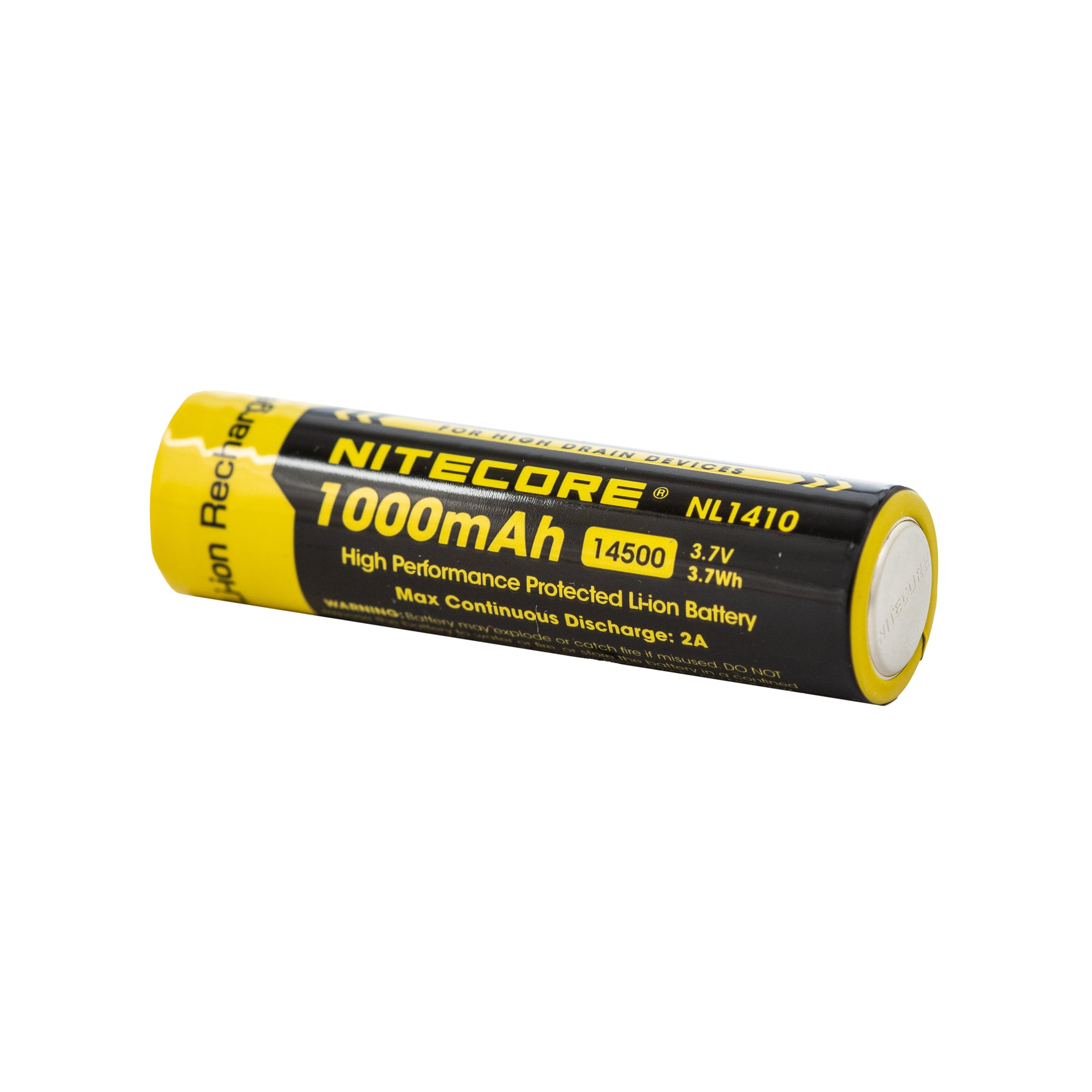

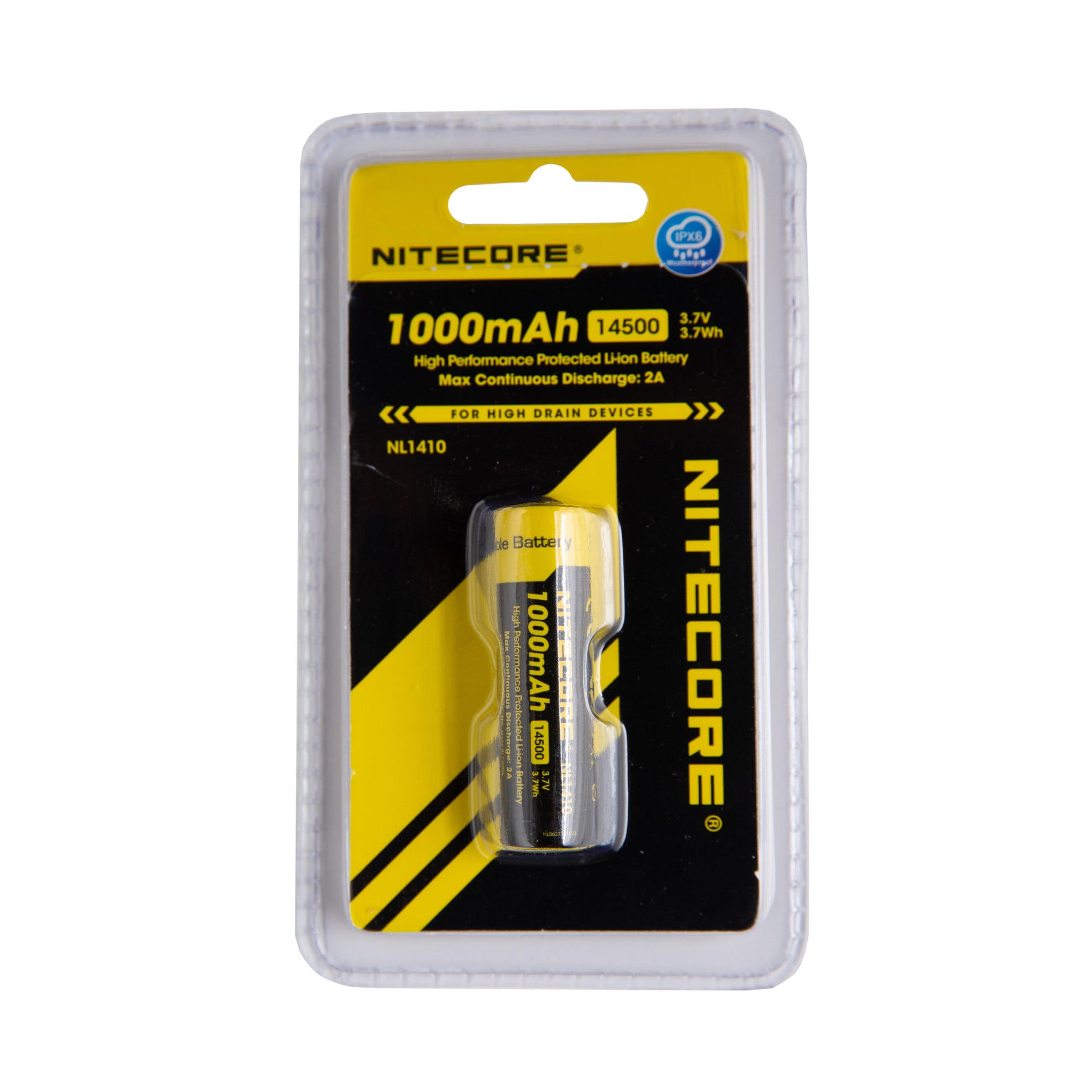

The Nitecore NL1410 is a protected 14500 lithium-ion battery built for commercial and professional applications where safety and reliability are critical. Its 1000mAh capacity and stable 3.7V output support extended runtimes, while integrated protection circuitry ensures safe operation. This button top cell is ideal for systems designed around protected lithium-ion batteries.
Applications / Uses
- Commercial electronic equipment
- Medical and laboratory devices
- OEM and R&D applications
- Professional portable electronics
- Rechargeable AA-format power systems
SPECIFICATIONS
| Manufacturer: | Nitecore |
| Model: | NL1410 |
| Size: | 14500 |
| Positive Terminal: | Button Top |
| Nominal Capacity: | 1000mAh |
| Continuous Discharge Rating (max): | 2A |
| Nominal Voltage: | 3.7V |
| Maximum Voltage: | 4.2V |
| Discharge Cut-off Voltage: | 2.75V |
| Protected: | Yes (Protected) |
| Rechargeable: | Yes |
| Approx. Dimensions: | 14.2mm x 52.7mm |
| Approx. Weight: | 22g |
Nitecore NL1410 14500 1000mAh Data Specification Sheet
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If a cell shows signs of thermal runaway (e.g., smoke, swelling, hissing, or heat), stop use immediately and, if it can be done safely, move it to a non-flammable surface (e.g., concrete or sand) away from combustible materials. Lithium-ion cells burn as Class B fires — use an ABC / dry-chemical fire extinguisher, or douse with large amounts of water to cool the cell and prevent the fire from spreading. Do not rely on a small spray; thorough cooling is required, and cells can reignite from residual heat, so monitor the area afterward. (Class D extinguishers are intended for lithium-metal batteries, not lithium-ion.) For any fire beyond a single small cell, evacuate and call emergency services.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
