Key Features
- Optimized Energy Capacity: 850mAh nominal capacity designed for reliable runtime in compact devices.
- Integrated Protection Circuit: Built-in PCB safeguards against overcharge, over-discharge, and short circuits.
- Stable Power Output: Rated for up to 0.8A maximum continuous discharge.
- Durable Cell Construction: Nickel-plated stainless steel protectors and internal microporous barrier enhance safety.
- Extended Service Life: Engineered for more than 500 charge and discharge cycles.
Overview

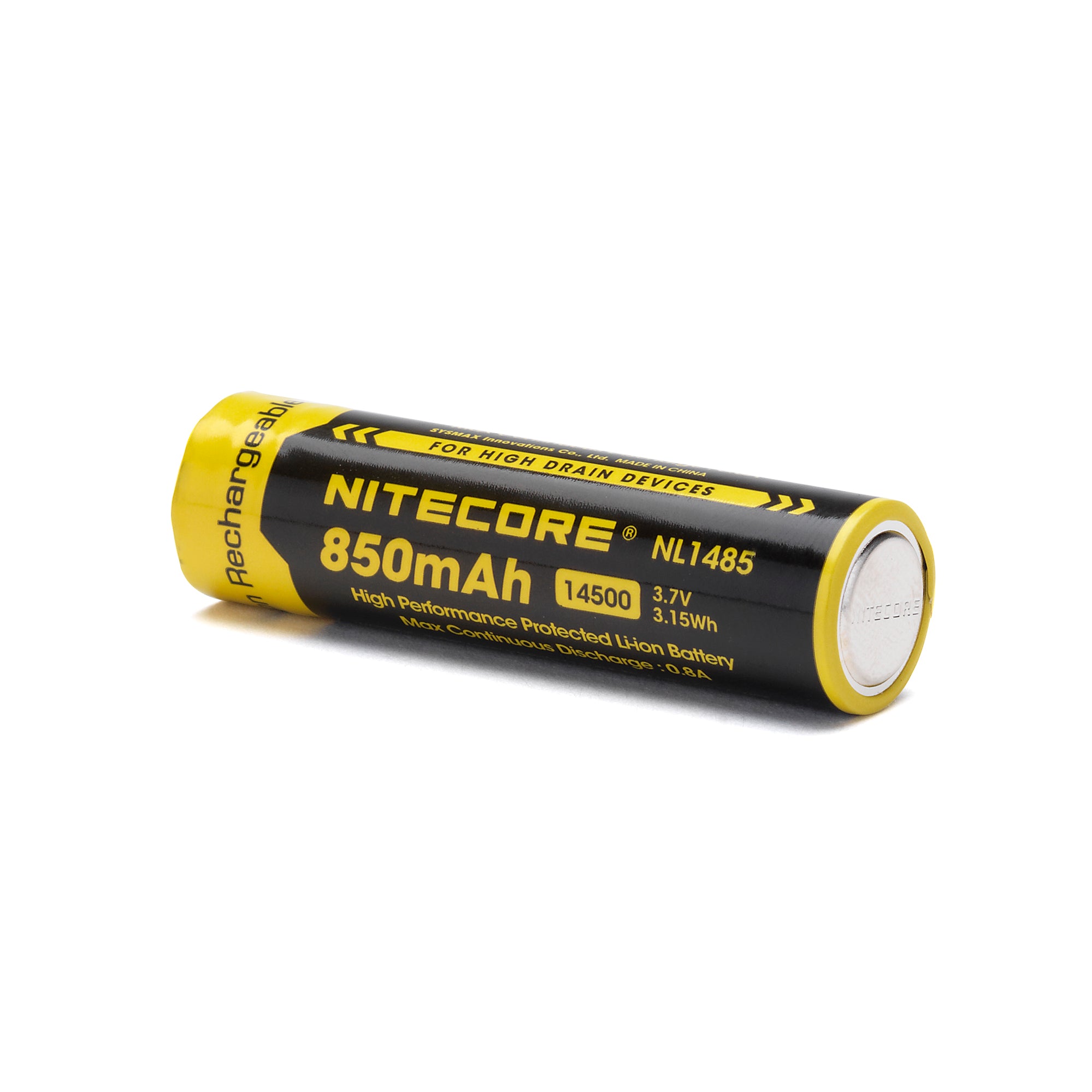

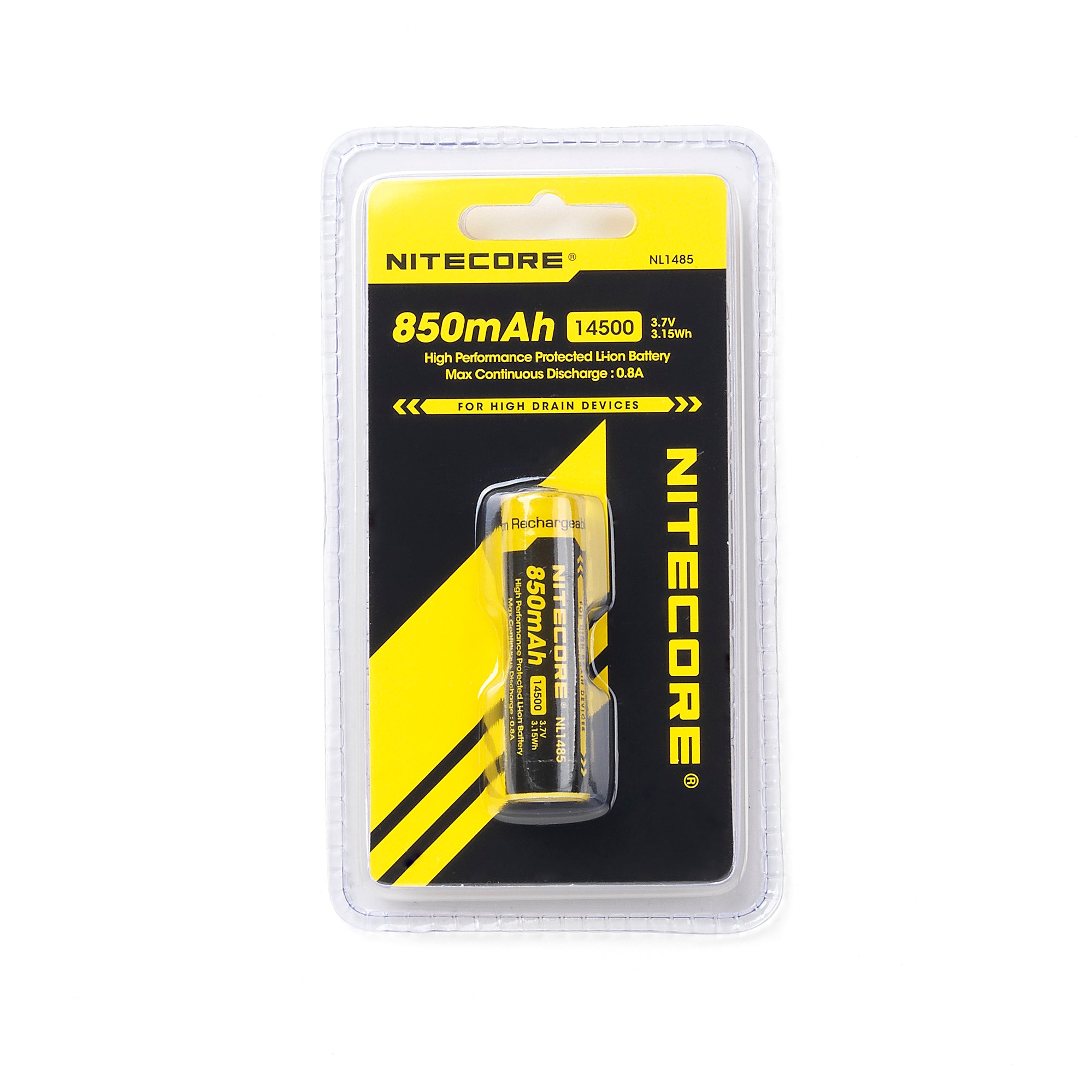

The Nitecore NL1485 is a protected 14500 lithium-ion battery engineered for dependable performance in high-demand electronics. With a nominal capacity of 850mAh and a stable 3.7V output, this button top cell delivers consistent power while incorporating advanced internal safety protections. Its durable construction and long cycle life make it a reliable rechargeable solution for compact, performance-driven devices.
Applications / Uses
- High-output flashlights and headlamps
- Portable electronic devices
- Battery-powered instruments
- Rechargeable AA-sized lithium-ion applications
- Professional and consumer electronics
SPECIFICATIONS
| Manufacturer: | Nitecore |
| Model: | NL1485 |
| Size: | 14500 |
| Positive Terminal: | Button Top |
| Nominal Capacity: | 850mAh |
| Continuous Discharge Rating (max): | 0.8A |
| Nominal Voltage: | 3.7V |
| Maximum Voltage: | 4.2V |
| Discharge Cut-off Voltage: | 2.75V |
| Protected: | Yes (PCB) |
| Rechargeable: | Yes |
| Approx. Dimensions: | 14.2mm x 52.9mm |
| Approx. Weight: | 21.16g |
Nitecore NL1485 14500 850mAh Data Specification Sheet
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If the battery overheats, emits smoke, or shows other signs of failure, stop using it immediately. Move the battery to a safe, non-flammable surface (e.g., sand or concrete) and follow emergency protocols.
