Key Features
- High-Capacity 16340 Battery: 950mAh lithium-ion cell for extended performance.
- Protected Button Top Configuration: Designed for systems requiring integrated safety controls.
- Consistent Output: Rated for controlled 2A continuous discharge.
- Reinforced Construction: Nickel-plated stainless steel shell enhances durability.
- Long Lifecycle: Engineered for more than 500 recharge cycles.
Overview

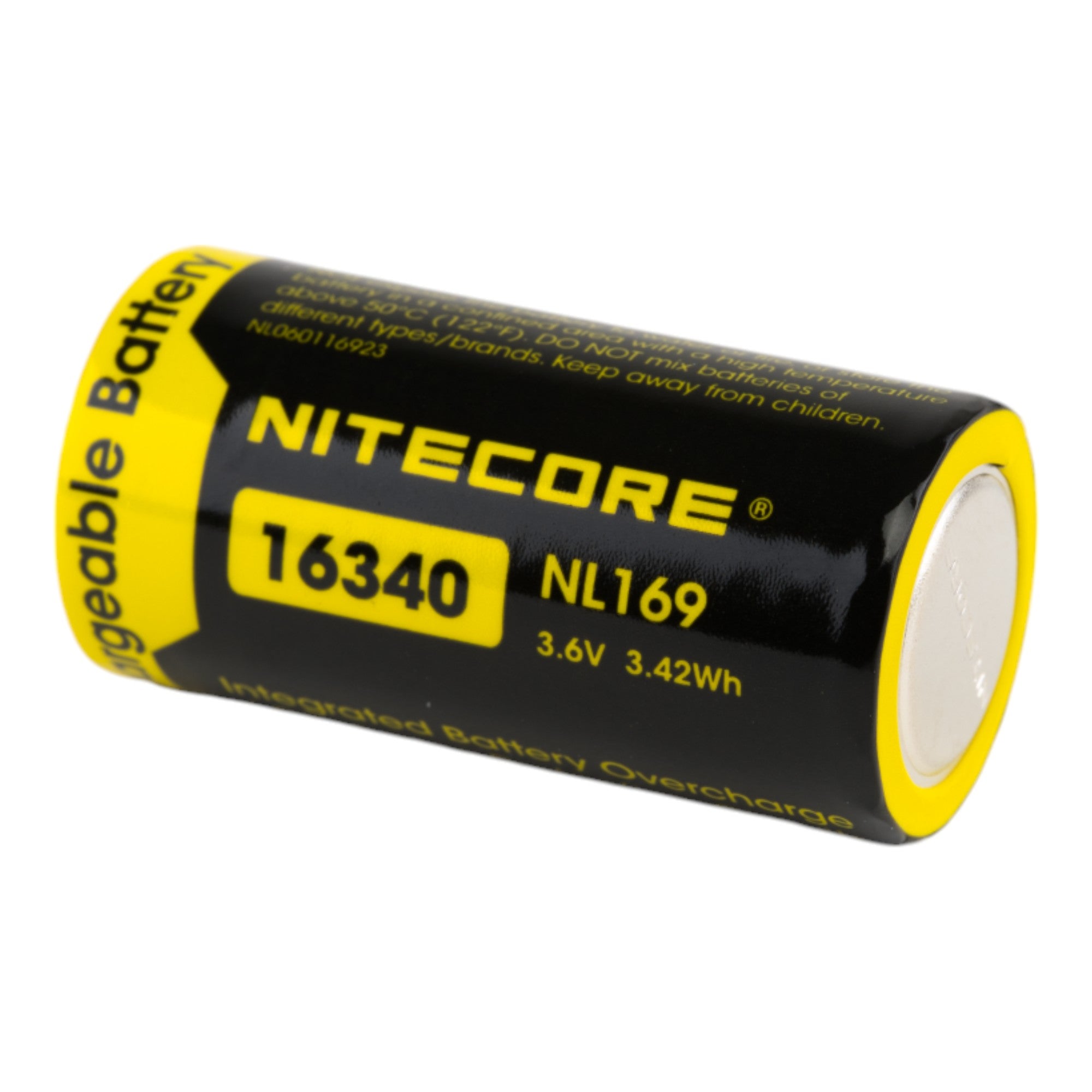

The Nitecore NL169 is a protected RCR123 / 16340 lithium-ion battery developed for professional and consumer applications where reliability and safety are critical. With an upgraded 950mAh capacity and integrated protection circuitry, it delivers dependable power in a compact form factor. This battery is ideal for devices designed to operate with protected lithium-ion cells.
Applications / Uses
- Commercial electronic equipment
- Portable lighting systems
- Professional and consumer electronics
- OEM and R&D projects
- Rechargeable 16340 battery systems
SPECIFICATIONS
| Manufacturer: | Nitecore |
| Model: | NL169 |
| Size: | RCR123 / 16340 |
| Positive Terminal: | Button Top |
| Nominal Capacity: | 950mAh |
| Continuous Discharge Rating (max): | 2A |
| Protected: | Yes (PCB) |
| Rechargeable: | Yes |
| Approx. Dimensions: | 16.5mm x 36.2mm |
| Approx. Weight: | 20g |
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If a cell shows signs of thermal runaway (e.g., smoke, swelling, hissing, or heat), stop use immediately and, if it can be done safely, move it to a non-flammable surface (e.g., concrete or sand) away from combustible materials. Lithium-ion cells burn as Class B fires — use an ABC / dry-chemical fire extinguisher, or douse with large amounts of water to cool the cell and prevent the fire from spreading. Do not rely on a small spray; thorough cooling is required, and cells can reignite from residual heat, so monitor the area afterward. (Class D extinguishers are intended for lithium-metal batteries, not lithium-ion.) For any fire beyond a single small cell, evacuate and call emergency services.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
