Key Features
- Extended Runtime: 950mAh capacity supports longer use between charges.
- USB-C Rechargeable: Recharge directly from common USB-C power sources.
- Built-In Safety Protections: Integrated PCB helps safeguard both battery and device.
- Compact 16340 Format: Fits a wide range of compatible electronics.
- Rechargeable Convenience: Designed for frequent use with long-term value.
Overview

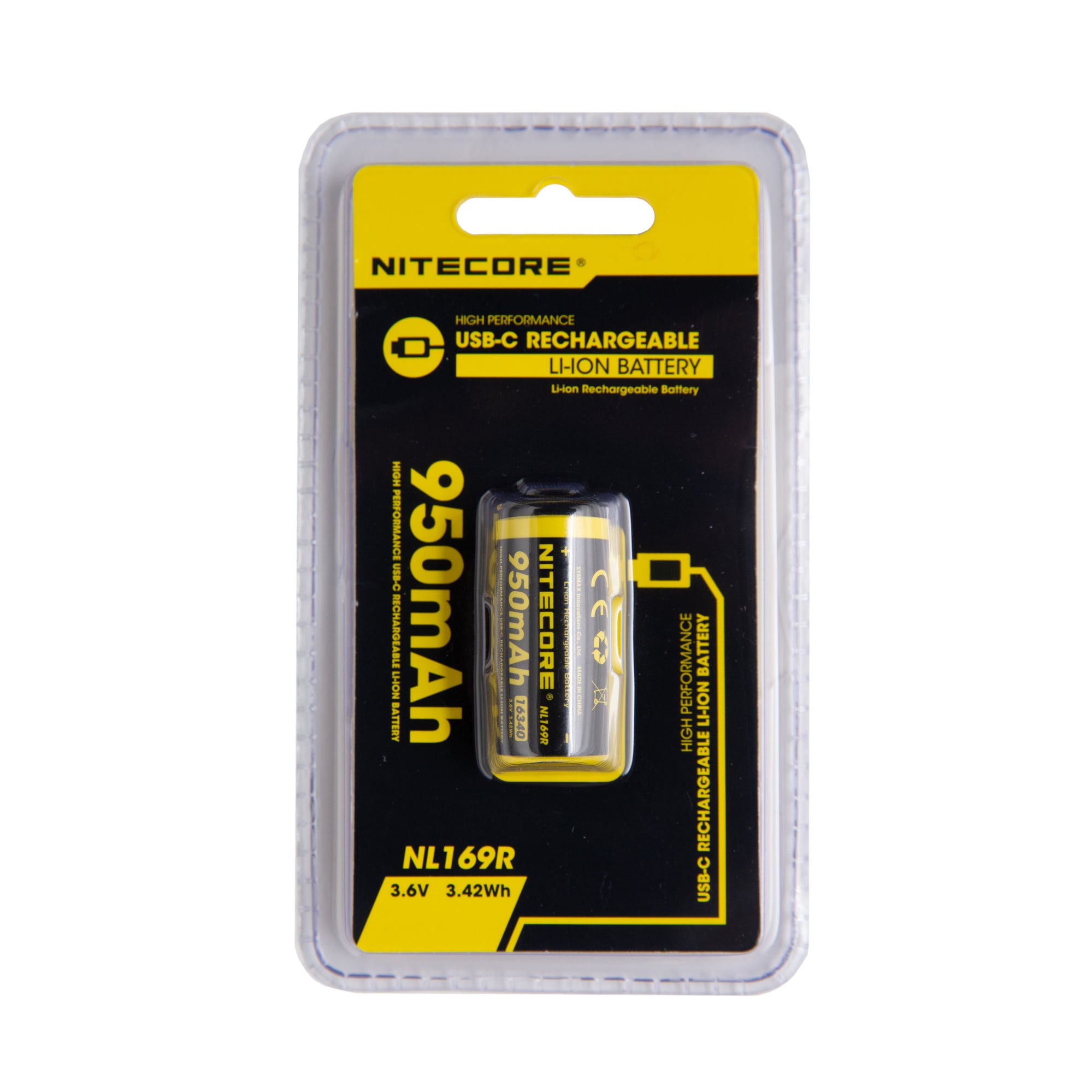

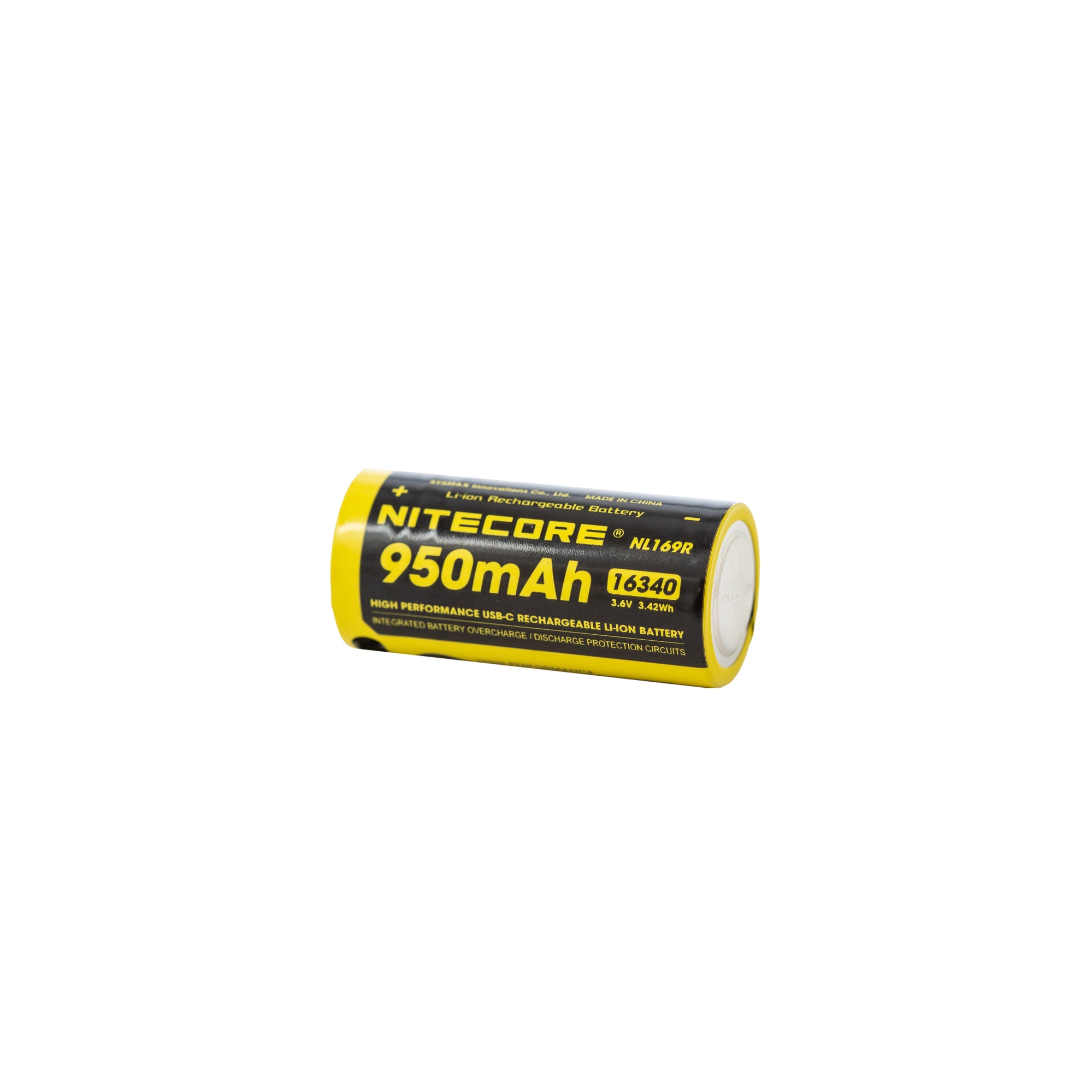

The Nitecore NL169R rechargeable battery combines upgraded capacity with modern USB-C charging for maximum convenience. Designed as an evolution of earlier 16340 batteries, it delivers longer runtime while maintaining Nitecore’s high safety and quality standards. Its protected button top design ensures compatibility with devices requiring secure lithium-ion power solutions.
Applications / Uses
- Rechargeable flashlights
- Portable electronics
- Travel and field-use devices
- USB-powered charging setups
- RCR123 / 16340 rechargeable replacements
SPECIFICATIONS
| Manufacturer: | Nitecore |
| Model: | NL169R |
| Size: | RCR123 / 16340 |
| Positive Terminal: | Button Top |
| Nominal Capacity: | 950mAh |
| Continuous Discharge Rating (max): | 2A |
| Input (USB-C): | 5V / 1A |
| Protected: | Yes (PCB) |
| Rechargeable: | Yes |
| Approx. Dimensions: | 16.5mm x 36.2mm |
| Approx. Weight: | 20g |
Nitecore NL169R 16340 950mAh Data Specification Sheet
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If the battery overheats, emits smoke, or shows other signs of failure, stop using it immediately. Move the battery to a safe, non-flammable surface (e.g., sand or concrete) and follow emergency protocols.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
