Key Features
- 2600mAh nominal capacity for consistent runtime
- Integrated PCB protection for over-charge and over-discharge safety
- 6A continuous discharge limit controlled by protection circuit
- Button top terminal for compatibility with protected-cell devices
- Rated for over 500 charge and discharge cycles
Note: This is a button top protected 18650 battery which is longer than a standard flat top unprotected 18650 battery.
Overview

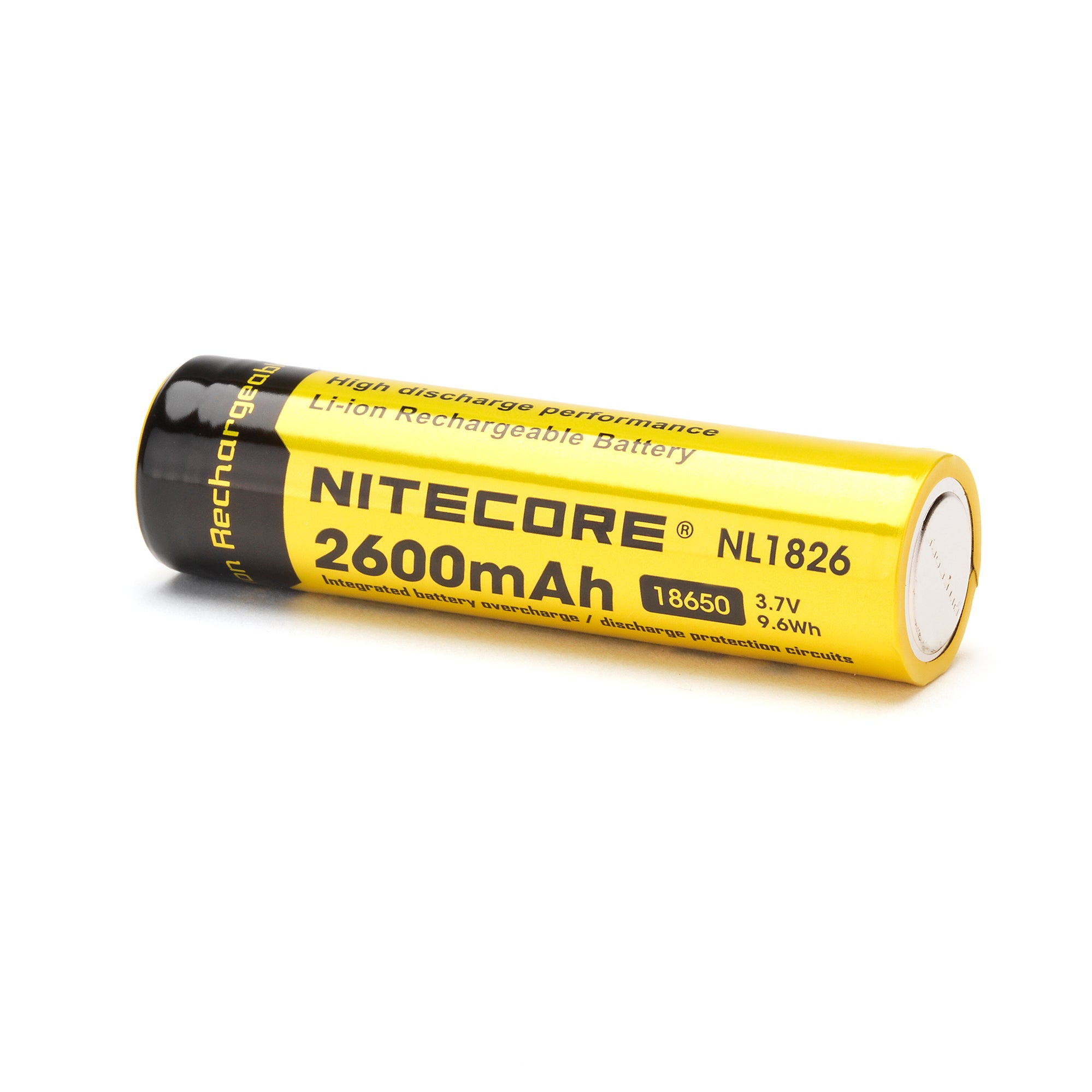

The Nitecore NL1826 is a protected 18650 lithium-ion rechargeable battery designed for devices that require stable output and built-in safety protection. Featuring a 2600mAh capacity and a PCB-limited 6A continuous discharge rate, this cell delivers reliable performance while safeguarding against electrical faults during operation.
Applications / Uses
- High-output LED flashlights
- Portable lighting equipment
- Battery-powered tools with protection requirements
- Emergency and backup lighting systems
- Devices requiring protected button-top 18650 cells
SPECIFICATIONS
| Manufacturer | Nitecore |
| Model | NL1826 |
| Size | 18650 |
| Positive Terminal | Button Top |
| Nominal Capacity | 2600mAh |
| Continuous Discharge Rating | 6A Max Continuous (PCB Limited) |
| Nominal Voltage | 3.7V |
| Maximum Voltage | 4.2V |
| Protected | Yes, PCB |
| Rechargeable | Yes |
| Approx. Dimensions | 18.3mm × 68.9mm |
| Approx. Weight | 46.26g |
| Data Specification Sheet | Nitecore NL1826 Datasheet |
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If a cell shows signs of thermal runaway (e.g., smoke, swelling, hissing, or heat), stop use immediately and, if it can be done safely, move it to a non-flammable surface (e.g., concrete or sand) away from combustible materials. Lithium-ion cells burn as Class B fires — use an ABC / dry-chemical fire extinguisher, or douse with large amounts of water to cool the cell and prevent the fire from spreading. Do not rely on a small spray; thorough cooling is required, and cells can reignite from residual heat, so monitor the area afterward. (Class D extinguishers are intended for lithium-metal batteries, not lithium-ion.) For any fire beyond a single small cell, evacuate and call emergency services.
