Key Features
- 3200mAh nominal capacity for extended runtime
- Protected button top design with integrated PCB safety
- 6A max continuous discharge (PCB limitation)
- Over-voltage and under-voltage protection for safer operation
- Optimized length for devices requiring protected 18650 cells
Note: This is a button top protected 18650 battery which is longer than a standard flat top unprotected 18650 battery.
Overview

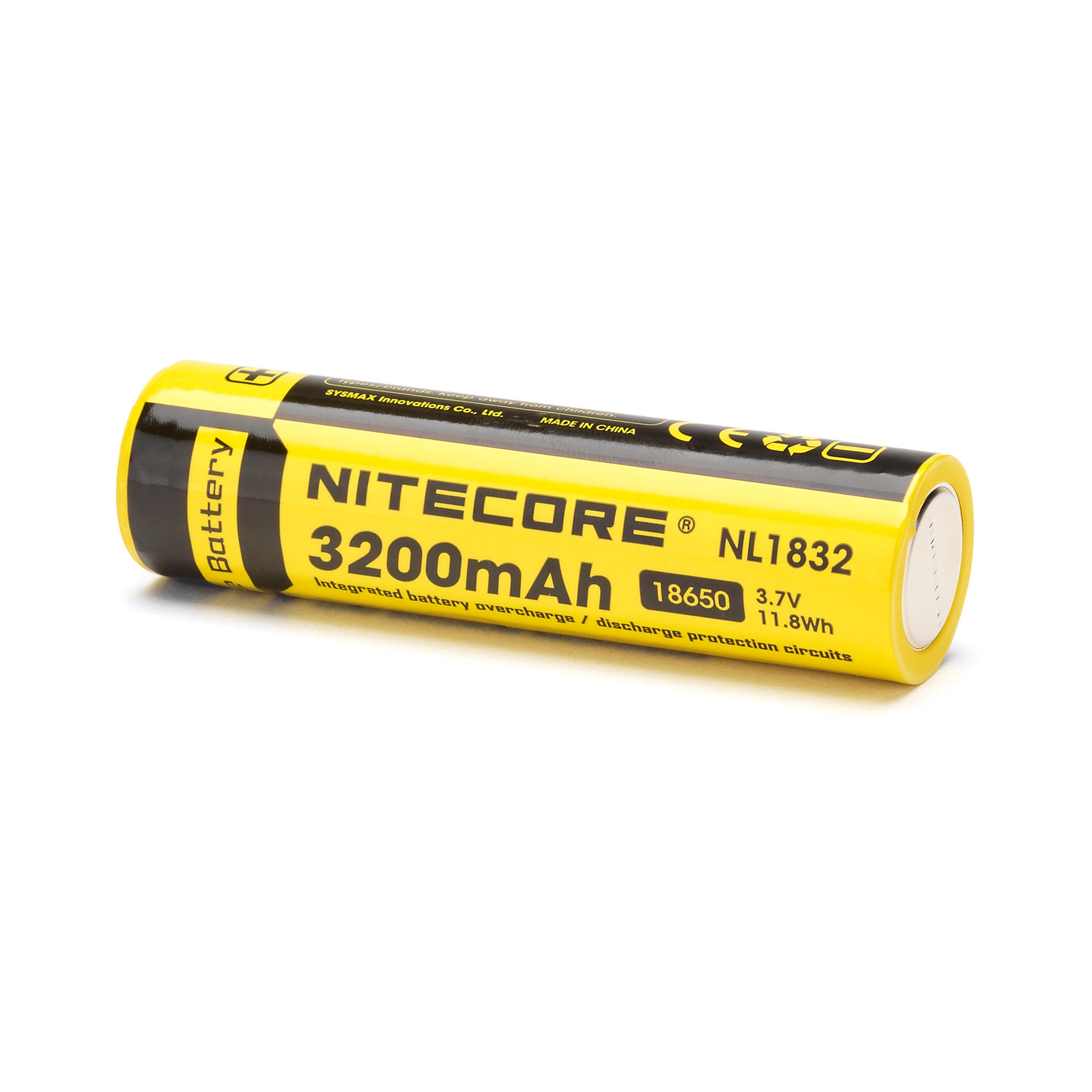

The Nitecore NL1832 is a protected 18650 lithium-ion battery built for dependable performance in high-output flashlights and other demanding electronics. Featuring a 3200mAh capacity and an integrated protection circuit board (PCB), it helps safeguard against abnormal charging and discharging conditions. The button top terminal improves compatibility with devices that require a raised positive contact, while the protected design increases overall safety for everyday use.
Applications / Uses
- High-output LED flashlights and searchlights
- Tactical lighting systems
- Portable electronics requiring button top 18650 cells
- Emergency / backup lighting setups
- Battery-operated devices that benefit from protected cells
SPECIFICATIONS
| Manufacturer | Nitecore |
| Model | NL1832 |
| Size | 18650 |
| Positive Terminal | Button Top |
| Nominal Capacity | 3200mAh |
| Continuous Discharge Rating (max) | 6A Max Continuous (PCB limitation) |
| Nominal Voltage | 3.7V |
| Maximum Voltage | 4.2V |
| Protected | Yes, PCB |
| Rechargeable | Yes |
| Approx. Dimensions | 18.6mm × 68.9mm |
| Approx. Weight | 50g |
| Data Specification Sheet | Nitecore NL1832 Datasheet |
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If a cell shows signs of thermal runaway (e.g., smoke, swelling, hissing, or heat), stop use immediately and, if it can be done safely, move it to a non-flammable surface (e.g., concrete or sand) away from combustible materials. Lithium-ion cells burn as Class B fires — use an ABC / dry-chemical fire extinguisher, or douse with large amounts of water to cool the cell and prevent the fire from spreading. Do not rely on a small spray; thorough cooling is required, and cells can reignite from residual heat, so monitor the area afterward. (Class D extinguishers are intended for lithium-metal batteries, not lithium-ion.) For any fire beyond a single small cell, evacuate and call emergency services.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
