Description

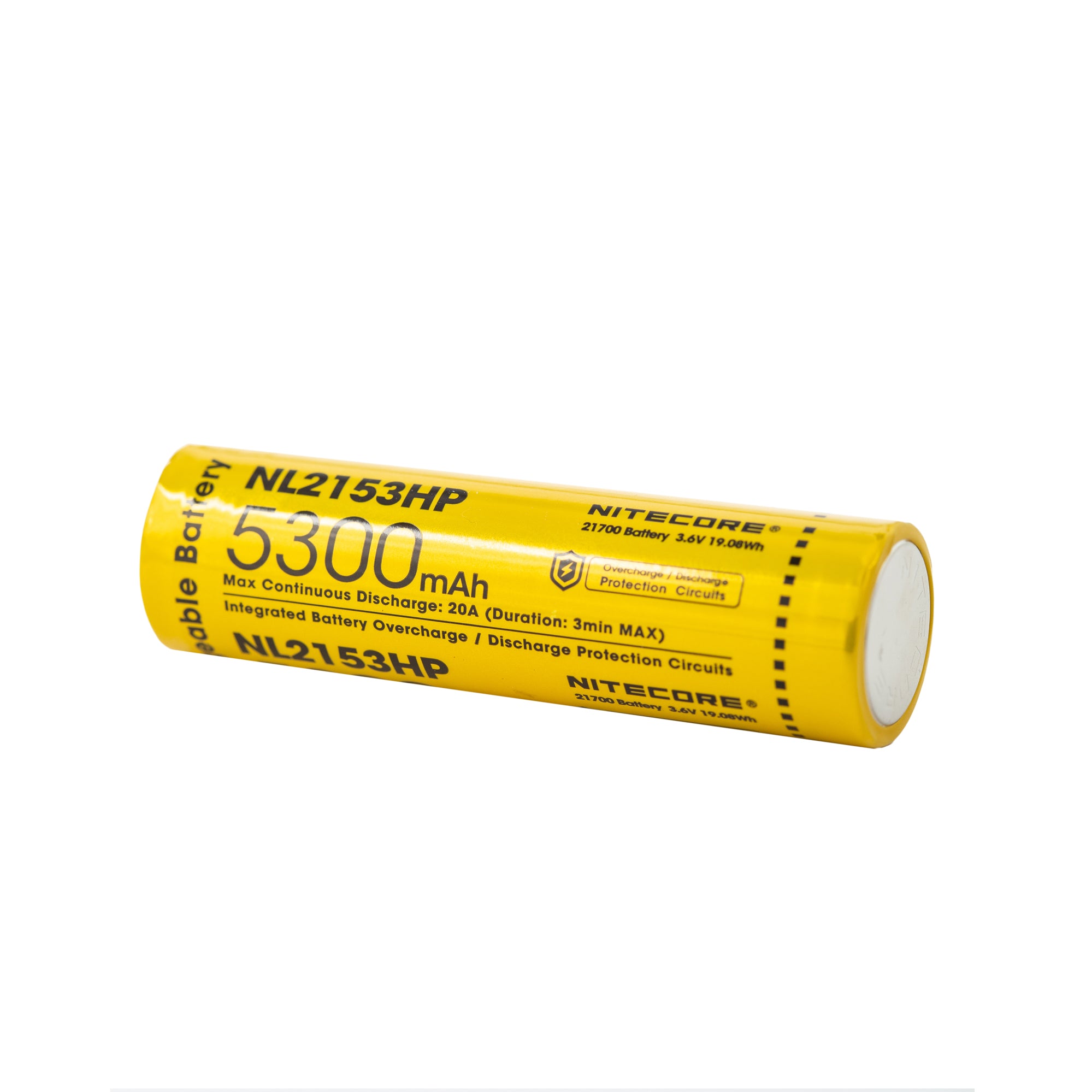

Introducing the Nitecore NL2153HP, a next-generation 21700 lithium-ion battery designed for the most demanding electronic devices. With a significant 5300mAh capacity and a high 20A continuous discharge, this battery excels in high-drain environments, offering superior performance and durability. The NL2153HP integrates cutting-edge technology and advanced safety features, including a built-in pressure relief valve and nickel-plated components for improved impact resistance and conductivity. This makes it an ideal choice for high-performance flashlights, portable power devices, and other critical applications where reliable power is a must.
- Exceptional Capacity: 5300mAh provides extensive run times and powerful output, perfect for high-drain devices.
- High Discharge Rate: Delivers a continuous 20A output to meet the needs of demanding applications, ensuring consistent performance.
- Advanced Safety Features: Equipped with an intelligent protective circuit and a pressure relief valve to enhance safety during use and charging.
- Durable Construction: Features nickel-plated stainless steel cathode and anode for enhanced durability and efficient energy transfer.
- Eco-Friendly Design: Capable of over 500 recharge cycles, reducing waste and promoting environmental sustainability.
SPECIFICATIONS
Manufacturer: | Nitecore |
Model: | NL2153HP |
Size: | 21700 |
Positive Terminal: | Button Top |
Nominal Capacity: | 5000mAh |
Continuous Discharge Rating (max): | 20A |
Nominal Voltage: | 3.6V |
Maximum Voltage: | 4.2V |
Protected: | YES, PCB. |
Rechargeable: | Yes |
Approx. Dimensions: | 21.2mm x 75.1mm |
Approx. Weight: | 72g |
Country of Origin: | China |
Data Specification Sheet: | Nitecore NL2153HP 21700 5300mAh 20A Battery Datasheet |
You MUST read the safety warnings and resources before purchasing, using, and/or handling batteries.
⚠ WARNING:
Use caution as misusing or mishandling the battery may cause a FIRE or EXPLOSION which may result in personal injury, property damage, or death. The user must have an appropriate understanding of the potential dangers of LITHIUM ION BATTERIES before purchase and usage. No express or implied guarantee of compatibility, suitability, or fitness for any particular purpose or device can be made. This battery is manufactured and sold for the intended use of system integrations with proper protection circuitry or battery packs with a BMS (battery management system) or PCB (circuit board/module). This battery is neither designed nor intended to be used with an E-CIGARETTE, VAPORIZER, or similar device and MUST NOT be used with such devices due to RISK OF FIRE or EXPLOSION. If purchasing this battery for resale purposes, you MUST forward ALL warnings to ALL customers for their reference and safety!
- DO NOT USE WITH E-CIGARETTE, VAPORIZER, OR SIMILAR DEVICE
- Additional battery manufacturer and battery industry association warnings for using lithium-ion batteries in e-cigarette or vaping devices can be viewed here: Be-CigaretteSafe.org
- BATTERY IS ONLY FOR USE IN PROTECTED BATTERY PACKS
- ONLY ASSEMBLE A BATTERY PACK IF YOU ARE COMPETENT IN DOING SO
- DO NOT STORE BATTERY/CELL LOOSE OR IN A POCKET, PURSE, ETC. ALWAYS USE A PROTECTIVE CASE OR BOX FOR STORAGE AND TRANSPORT
- WHEN NOT IN USE, ALWAYS STORE LITHIUM ION BATTERIES IN THE PROTECTIVE CASE/BOX IN WHICH BATTERIES WERE DELIVERED
- Misusing or mishandling lithium ion batteries can pose a SERIOUS RISK of PERSONAL INJURY, PROPERTY DAMAGE, OR DEATH
- BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
- Usage of batteries is AT YOUR OWN RISK!
- ONLY use with proper protection circuitry
- DO NOT short circuit intentionally or unintentionally
- KEEP AWAY from metal/conductive objects to prevent short circuiting
- DO NOT use if PVC wrapper or terminal insulator is damaged or torn
- DO NOT use if battery is damaged in any way
- DO NOT over-charge or charge above the maximum voltage rating
- DO NOT over-discharge or exceed the continuous discharge rating
- DO NOT modify, disassemble, puncture, cut, crush, or incinerate
- DO NOT expose to liquids or high temperatures
- DO NOT solder onto battery, spot weld only
- DO NOT use force to install or install in reverse/backwards
- ONLY use within manufacturer’s specification
- KEEP AWAY from pets and children
- ALWAYS charge in or on a fire-proof surface and never leave batteries charging unattended
- ONLY use a smart charger designed for this specific type of battery
- DO NOT mix and match brands and models, old and new, used and unused batteries
- STOP immediately if while charging/storing/using the battery it emits an unusual smell, feels hot, changes color or shape, or appears abnormal in any way
- It is your responsibility to determine that your charger or device is functioning properly
- If exposed to battery electrolyte, flush with water immediately and/or immediately contact a physician or emergency services
- DO NOT throw away in trash; contact your local jurisdiction for proper recycling or disposal
- Resellers MUST forward ALL warnings to ALL customers for their reference and safety
