Key Features
- 6000mAh High-Capacity Output: Maximizes runtime for power-hungry devices.
- 20A Continuous Discharge: Supports modern high-drain electronics.
- Protected Button Top Configuration: Integrated PCB ensures controlled, safe operation.
- Professional-Grade Construction: Built for durability, reliability, and repeated use.
- Long-Term Value: Rechargeable for 500+ cycles with consistent performance.
Overview

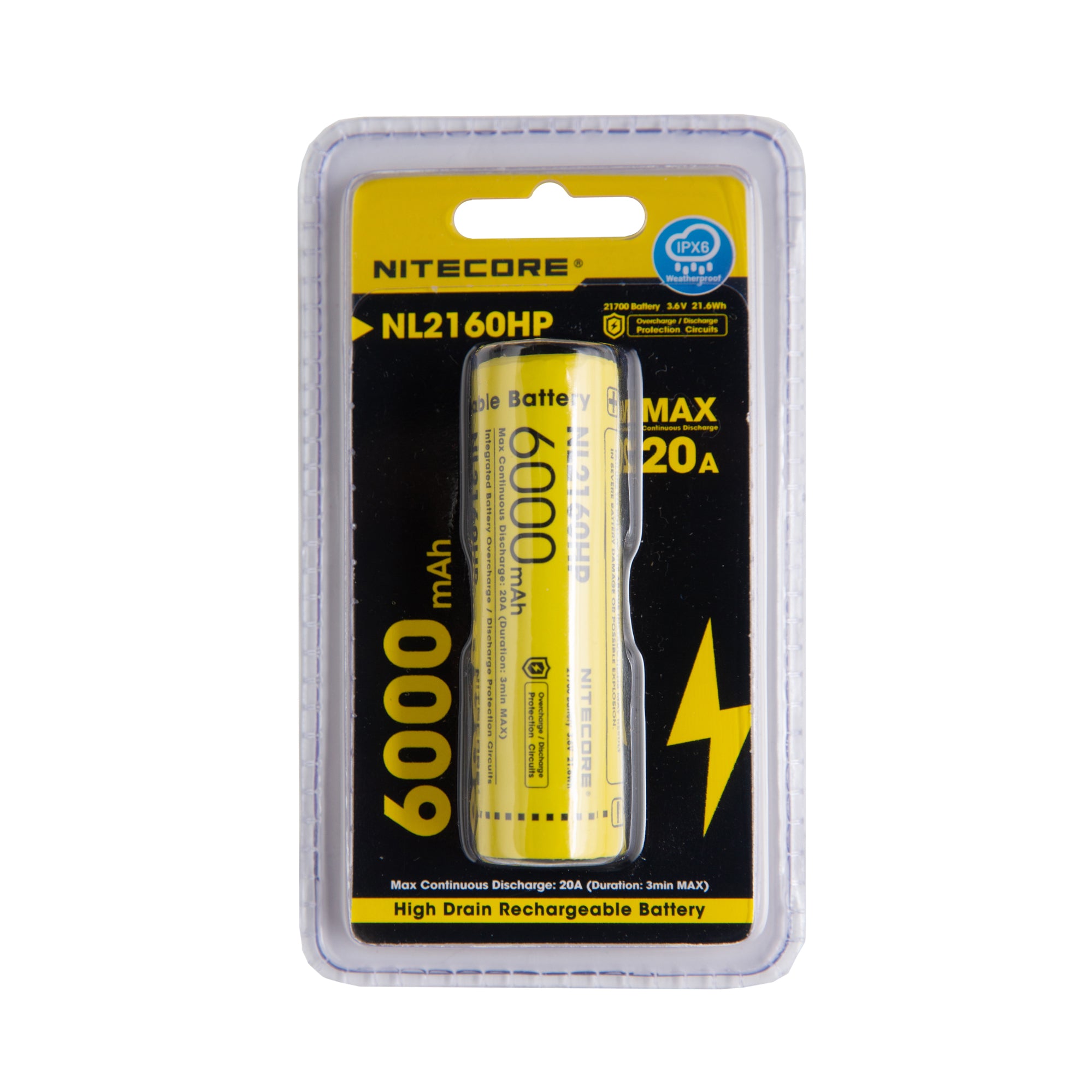

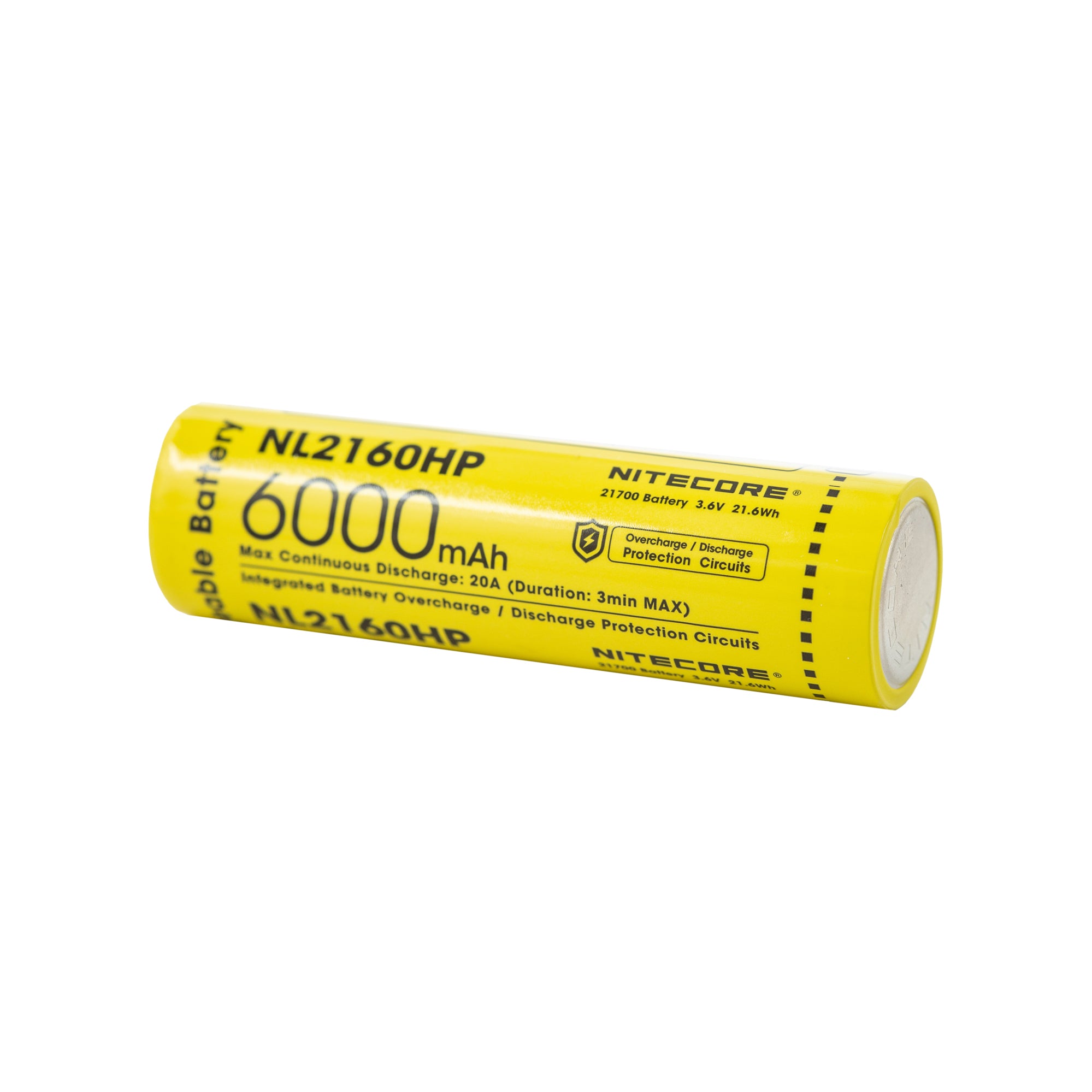

The Nitecore NL2160HP is a premium protected 21700 lithium-ion battery designed for professional and consumer applications where maximum capacity and high current delivery are critical. Combining advanced safety systems with exceptional power output, it delivers reliable energy for demanding environments and mission-critical devices.
Applications / Uses
- Professional and tactical lighting systems
- High-performance portable electronics
- Emergency and backup power equipment
- Commercial electronic devices
- Protected 21700 battery applications
SPECIFICATIONS
| Manufacturer: | Nitecore |
| Model: | NL2160HP |
| Size: | 21700 |
| Positive Terminal: | Button Top |
| Nominal Capacity: | 6000mAh |
| Continuous Discharge Rating (max): | 20A |
| Nominal Voltage: | 3.6V |
| Maximum Voltage: | 4.2V |
| Protected: | Yes, PCB |
| Rechargeable: | Yes |
| Approx. Dimensions: | 21.6mm x 75.42mm |
| Approx. Weight: | 76g |
Nitecore NL2160HP 6000mAh Data Specification Sheet
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If a cell shows signs of thermal runaway (e.g., smoke, swelling, hissing, or heat), stop use immediately and, if it can be done safely, move it to a non-flammable surface (e.g., concrete or sand) away from combustible materials. Lithium-ion cells burn as Class B fires — use an ABC / dry-chemical fire extinguisher, or douse with large amounts of water to cool the cell and prevent the fire from spreading. Do not rely on a small spray; thorough cooling is required, and cells can reignite from residual heat, so monitor the area afterward. (Class D extinguishers are intended for lithium-metal batteries, not lithium-ion.) For any fire beyond a single small cell, evacuate and call emergency services.
