Key Features
- High-capacity 3450mAh lithium-ion cell for extended runtime
- 10A maximum continuous discharge for demanding applications
- Button top terminal for compatibility with select devices
- High energy density: 693 Wh/L volumetric, 224 Wh/kg gravimetric
- Wide operating temperature range from -20°C to +60°C
Overview

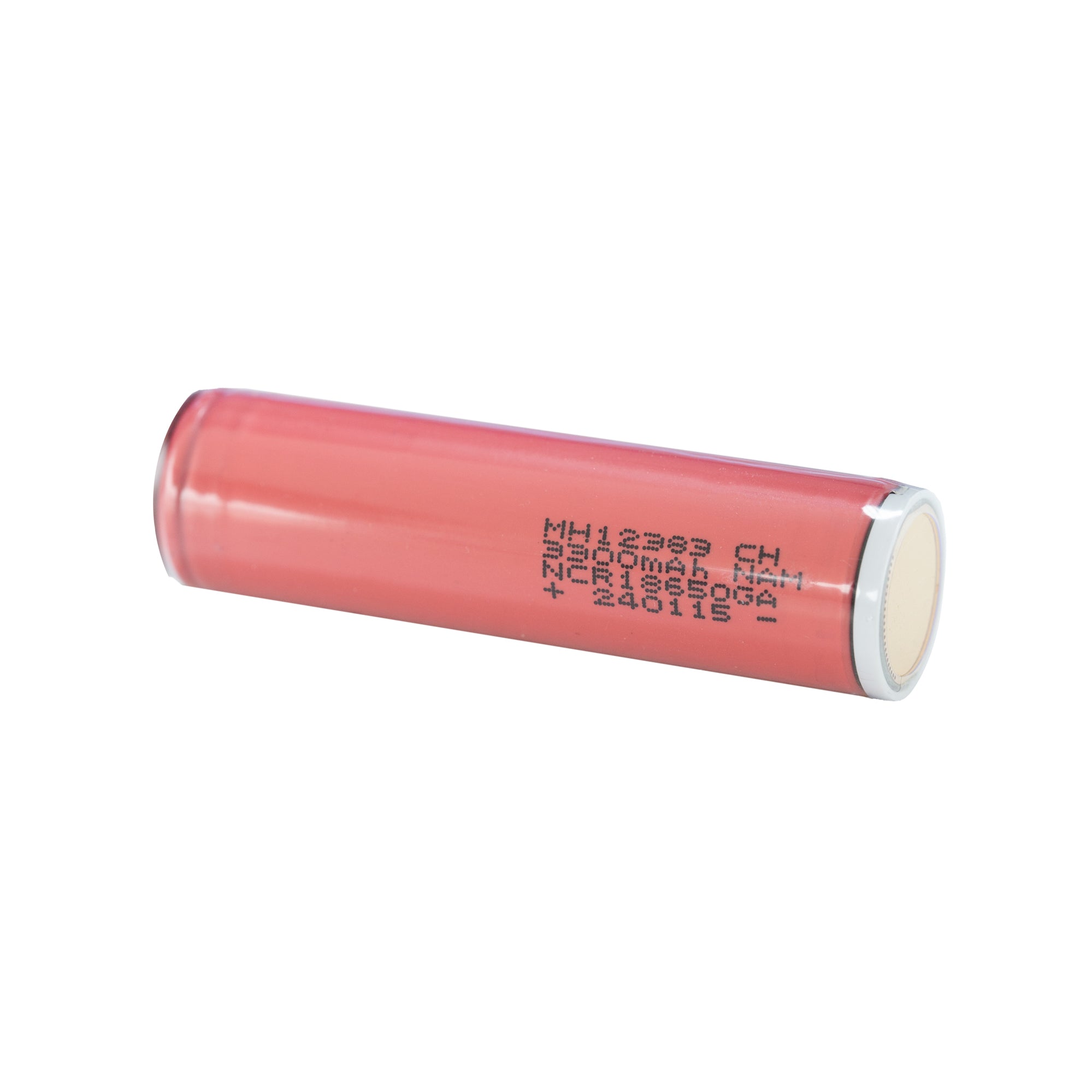

The Panasonic NCR18650GA is a premium high-capacity lithium-ion battery engineered for applications that require long runtime and stable power delivery. With a typical capacity of 3450mAh and a 10A continuous discharge rating, this cell strikes an excellent balance between energy density and output capability. This version features a button top terminal and is unprotected, making it suitable for devices or battery packs with built-in protection circuitry.
Applications / Uses
- Portable power tools with internal protection
- E-bike battery packs
- High-capacity battery assemblies
- Energy storage systems
- Professional-grade electronics
SPECIFICATIONS
| Manufacturer | Panasonic |
| Model | NCR18650GA |
| Size | 18650 |
| Positive Terminal | Button Top |
| Nominal Capacity | 3450mAh (Typical) |
| Continuous Discharge Rating | 10A Maximum Continuous |
| Nominal Voltage | 3.6V |
| Maximum Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.5V |
| Protected | No, Unprotected |
| Rechargeable | Yes |
| Approx. Dimensions | 18.5mm × 66.8mm |
| Approx. Weight | 48.2g |
| Country of Origin | China or Japan |
| Data Specification Sheet | Panasonic NCR18650GA Datasheet |
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or for e-cigarettes, vaporizers, or similar devices.
-
Thermal Runaway: A chain reaction where heat from a failing battery
causes further overheating, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid damage, and store batteries in a cool, dry place.

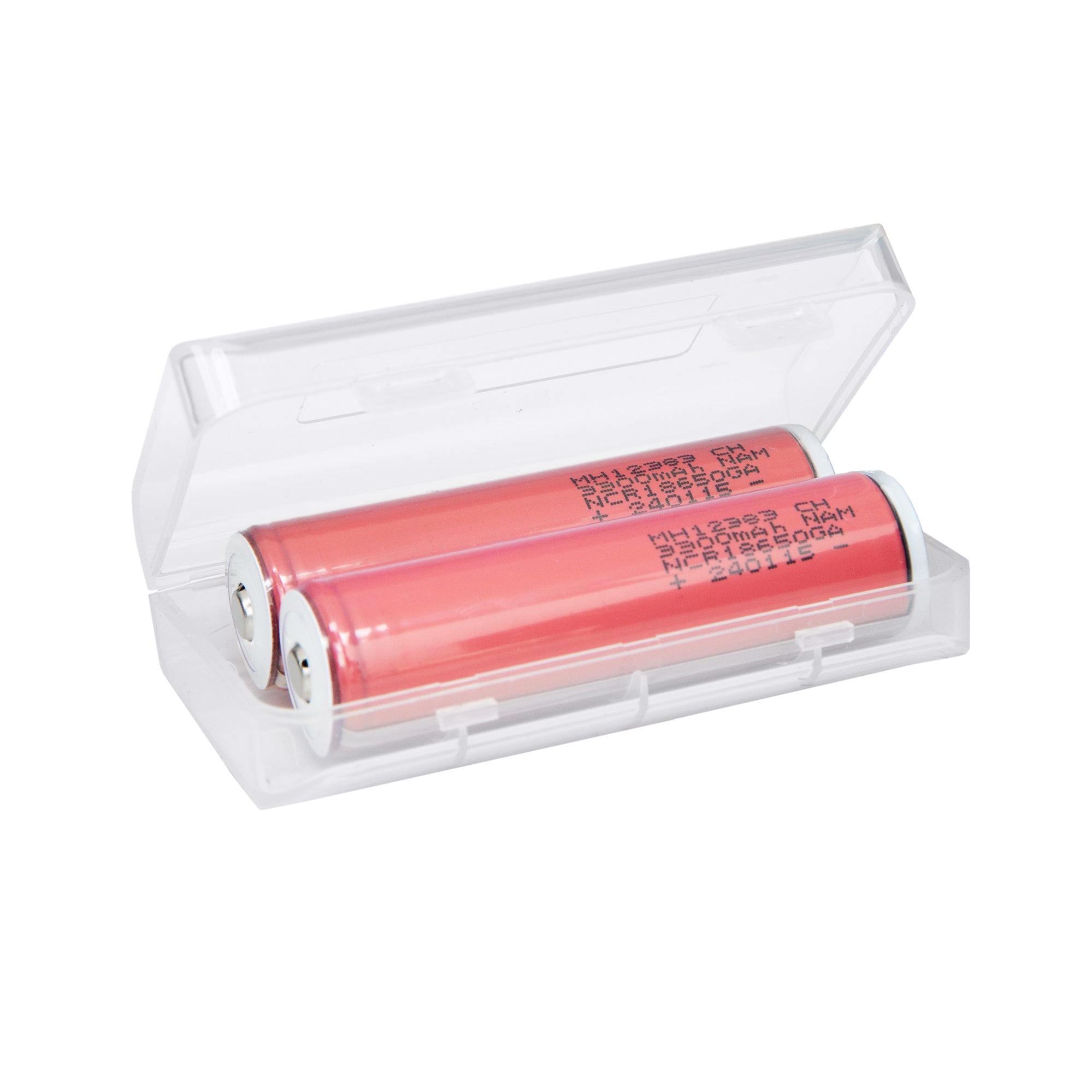

- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. Continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger specifically designed for lithium-ion batteries and ensure the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to extreme heat, fire, or liquids.
- Do not short circuit, puncture, crush, or modify the battery.
- Do not charge or discharge beyond the manufacturer’s voltage range.
- Do not dispose of in regular trash—always recycle at approved facilities.
- Emergency Response: If the battery overheats, emits smoke, or swells, move it to a non-flammable surface (e.g., sand or concrete) and stop use immediately. In case of fire, use a Class D fire extinguisher or sand. Do not use water.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
