Description
Experience unparalleled power with the Panasonic NCR18650GA, a high-capacity 3450mAh lithium-ion battery that offers exceptional performance for demanding applications. Designed to deliver a continuous 10A discharge, this battery is ideal for high-performance devices such as portable power tools, e-bikes, and other energy-intensive electronic devices. Its high energy density and robust build ensure reliable performance and longevity, making it a top choice for users seeking a powerful and durable power solution.
- High Capacity: 3450mAh provides extended power delivery, ensuring longer run times and fewer charges needed for busy users.
- Powerful Discharge: Capable of a 10A continuous discharge rate, perfect for high-drain applications requiring robust energy output.
- Advanced Charging Technology: Utilizes a CC-CV charging method to optimize battery performance and extend lifespan.
- Wide Operating Temperatures: Efficient operation in a broad range of temperatures from -20 to +60°C, suitable for various environmental conditions.
- Exceptional Energy Density: Offers 693 Wh/l volumetric and 224 Wh/kg gravimetric energy densities, packing more power into a compact form factor.
SPECIFICATIONS
| Manufacturer: | Panasonic |
| Model: | NCR18650GA |
| Size: | 18650 |
| Positive Terminal: | Button Top |
| Nominal Capacity: | 3450mAh typical |
| Continuous Discharge Rating (max): | 5A Maximum Continuous (PCB Limit), 10A Maximum Continuous |
| Nominal Voltage: | 3.6V |
| Maximum Voltage: | 4.2V |
| Discharge cut-off Voltage: | 2.5V |
| Protected: | Yes, PCB |
| Rechargeable: | Yes |
| Approx. Dimensions: | 18.5mm x 69.5mm |
| Approx. Weight: | 49.4g |
| Country of Origin: | China or Japan, PCB (China) |
| Data Specification Sheet: | Panasonic NCR18650GA Datasheet |
You MUST read the safety warnings and resources before purchasing, using, and/or handling batteries.
⚠ WARNING:
Use caution as misusing or mishandling the battery may cause a FIRE or EXPLOSION which may result in personal injury, property damage, or death. The user must have an appropriate understanding of the potential dangers of LITHIUM ION BATTERIES before purchase and usage. No express or implied guarantee of compatibility, suitability, or fitness for any particular purpose or device can be made. This battery is manufactured and sold for the intended use of system integrations with proper protection circuitry or battery packs with a BMS (battery management system) or PCB (circuit board/module). This battery is neither designed nor intended to be used with an E-CIGARETTE, VAPORIZER, or similar device and MUST NOT be used with such devices due to RISK OF FIRE or EXPLOSION. If purchasing this battery for resale purposes, you MUST forward ALL warnings to ALL customers for their reference and safety!

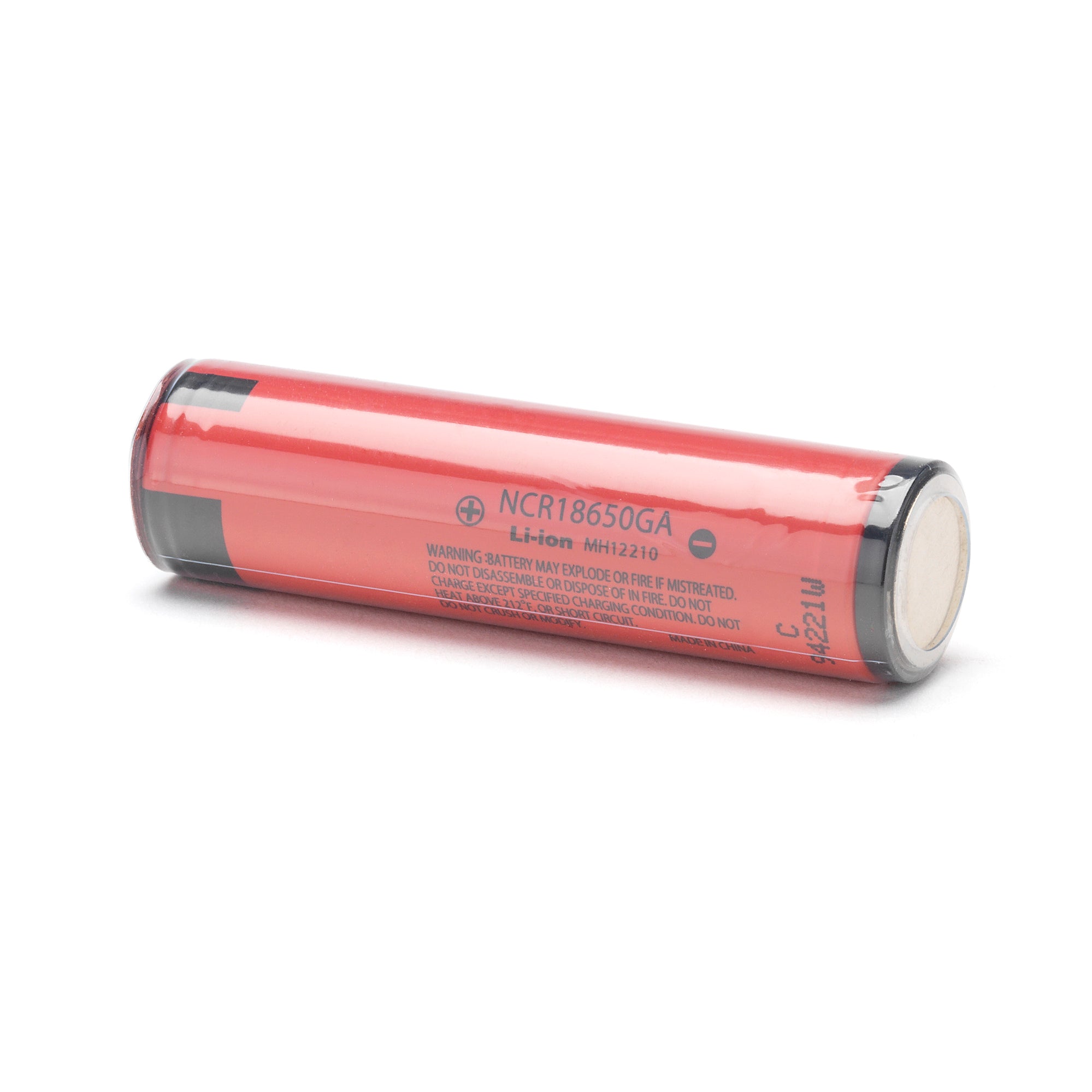

Please note this is an original flat top Panasonic/Sanyo NCR18650GA 18650 battery with an added button top and PCB (protection circuit board) by a third party manufacturer and is longer than a standard flat top 18650 battery. The PCB offers protection from over charge, over discharge, over current, and short circuit. This cell has an additional outer wrapper and insulator which must not be removed.
- DO NOT USE WITH E-CIGARETTE, VAPORIZER, OR SIMILAR DEVICE
- Additional battery manufacturer and battery industry association warnings for using lithium-ion batteries in e-cigarette or vaping devices can be viewed here: Be-CigaretteSafe.org
- BATTERY IS ONLY FOR USE IN PROTECTED BATTERY PACKS
- ONLY ASSEMBLE A BATTERY PACK IF YOU ARE COMPETENT IN DOING SO
- DO NOT STORE BATTERY/CELL LOOSE OR IN A POCKET, PURSE, ETC. ALWAYS USE A PROTECTIVE CASE OR BOX FOR STORAGE AND TRANSPORT

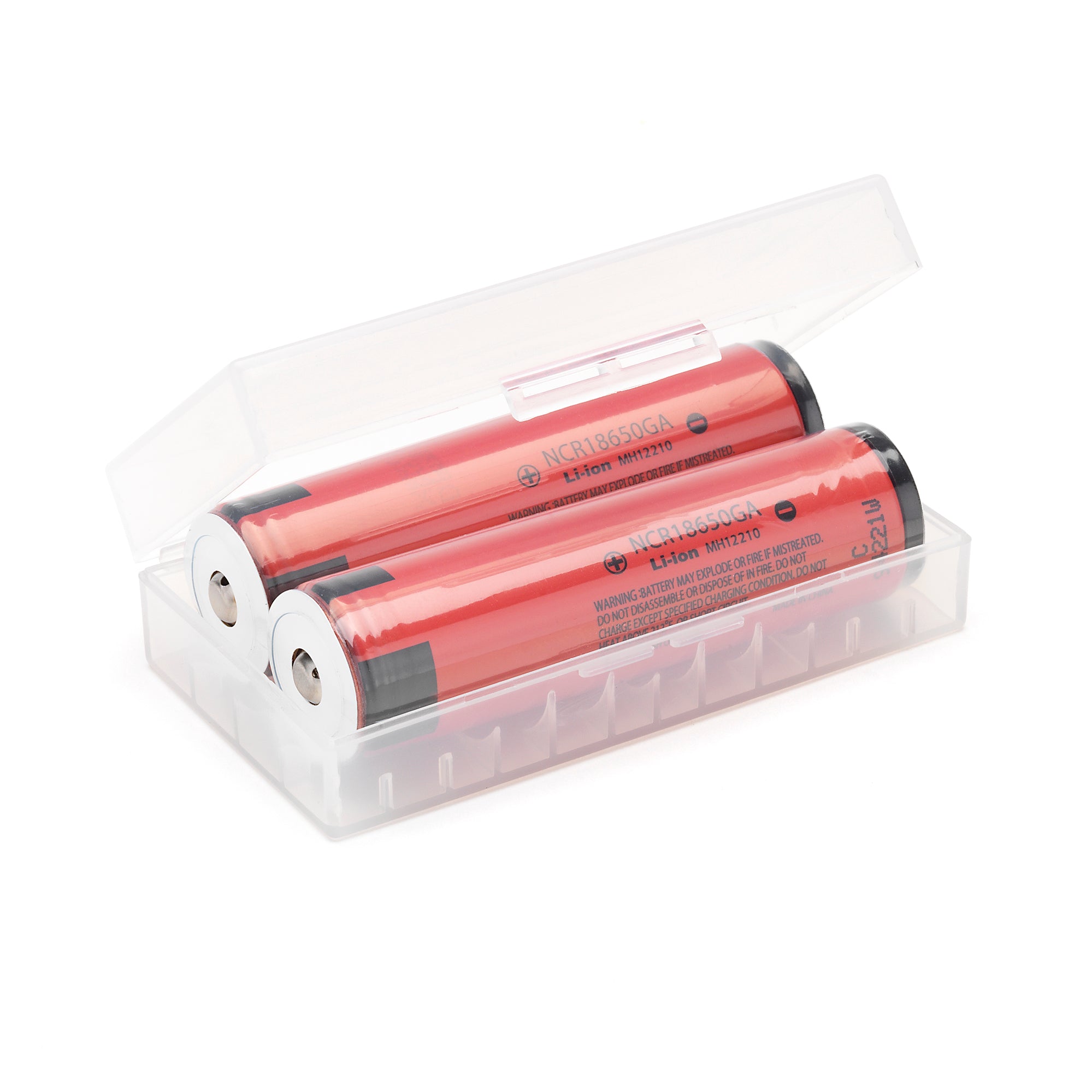

- WHEN NOT IN USE, ALWAYS STORE LITHIUM ION BATTERIES IN THE PROTECTIVE CASE/BOX IN WHICH BATTERIES WERE DELIVERED
- Misusing or mishandling lithium ion batteries can pose a SERIOUS RISK of PERSONAL INJURY, PROPERTY DAMAGE, OR DEATH
- BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
- Usage of batteries is AT YOUR OWN RISK!
- ONLY use with proper protection circuitry
- DO NOT short circuit intentionally or unintentionally
- KEEP AWAY from metal/conductive objects to prevent short circuiting
- DO NOT use if PVC wrapper or terminal insulator is damaged or torn
- DO NOT use if battery is damaged in any way
- DO NOT over-charge or charge above the maximum voltage rating
- DO NOT over-discharge or exceed the continuous discharge rating
- DO NOT modify, disassemble, puncture, cut, crush, or incinerate
- DO NOT expose to liquids or high temperatures
- DO NOT solder onto battery, spot weld only
- DO NOT use force to install or install in reverse/backwards
- ONLY use within manufacturer’s specification
- KEEP AWAY from pets and children
- ALWAYS charge in or on a fire-proof surface and never leave batteries charging unattended
- ONLY use a smart charger designed for this specific type of battery
- DO NOT mix and match brands and models, old and new, used and unused batteries
- STOP immediately if while charging/storing/using the battery it emits an unusual smell, feels hot, changes color or shape, or appears abnormal in any way
- It is your responsibility to determine that your charger or device is functioning properly
- If exposed to battery electrolyte, flush with water immediately and/or immediately contact a physician or emergency services
- DO NOT throw away in trash; contact your local jurisdiction for proper recycling or disposal
- Resellers MUST forward ALL warnings to ALL customers for their reference and safety
