Key Features
- 2600mAh lithium-ion capacity for dependable runtime
- 5.2A maximum continuous discharge capability
- Stable voltage output across discharge cycles
- Flat top design for battery pack integration
- Engineered for reliability under varied operating conditions
Overview

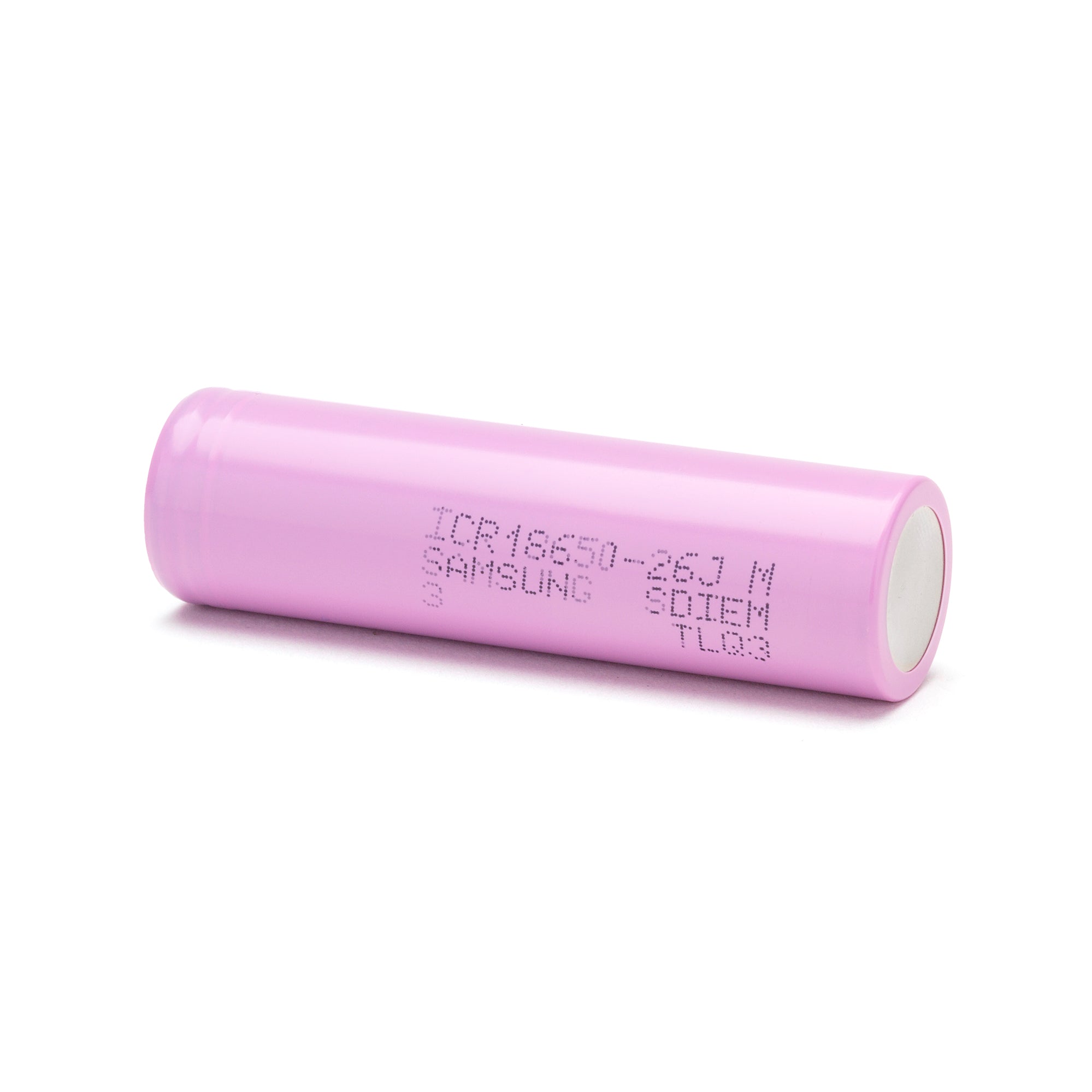

The Samsung 26J 18650 is a proven lithium-ion battery cell designed for applications requiring consistent power delivery and dependable cycle life. With a nominal capacity of 2600mAh and a maximum continuous discharge rating of 5.2A, this flat top cell is well suited for professionally designed battery packs and electronic systems where stability and efficiency are essential.
Applications / Uses
- Battery packs with integrated protection circuitry
- Industrial and commercial electronics
- Portable power banks
- Backup energy systems
- Low to moderate drain electronic devices
SPECIFICATIONS
| Manufacturer | Samsung SDI |
| Model | ICR18650-26J (26J) |
| Size | 18650 |
| Positive Terminal | Flat Top |
| Nominal Capacity | 2600mAh |
| Continuous Discharge Rating | 5.2A Max Continuous |
| Nominal Voltage | 3.6V |
| Maximum Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.75V |
| Protected | No, Unprotected |
| Rechargeable | Yes |
| Approx. Dimensions | 18.40mm × 65.00mm |
| Approx. Weight | 44.7g |
| Data Specification Sheet | Samsung 26J Datasheet |
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or for e-cigarettes, vaporizers, or similar devices.
-
Thermal Runaway: A chain reaction where heat from a failing battery
causes further overheating, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid damage, and store batteries in a cool, dry place.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. Continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger specifically designed for lithium-ion batteries and ensure the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to extreme heat, fire, or liquids.
- Do not short circuit, puncture, crush, or modify the battery.
- Do not charge or discharge beyond the manufacturer’s voltage range.
- Do not dispose of in regular trash—always recycle at approved facilities.
- Emergency Response: If the battery overheats, emits smoke, or swells, move it to a non-flammable surface (e.g., sand or concrete) and stop use immediately. In case of fire, use a Class D fire extinguisher or sand. Do not use water.
