Key Features
- 1200mAh genuine rated capacity for extended runtime
- Up to 50% longer performance in compact lighting devices
- Built-in protection circuit for safe, stable operation
- Reliable 3.6V output with 2.5A max continuous discharge
- Durable design rated for 500+ recharge cycles
Overview

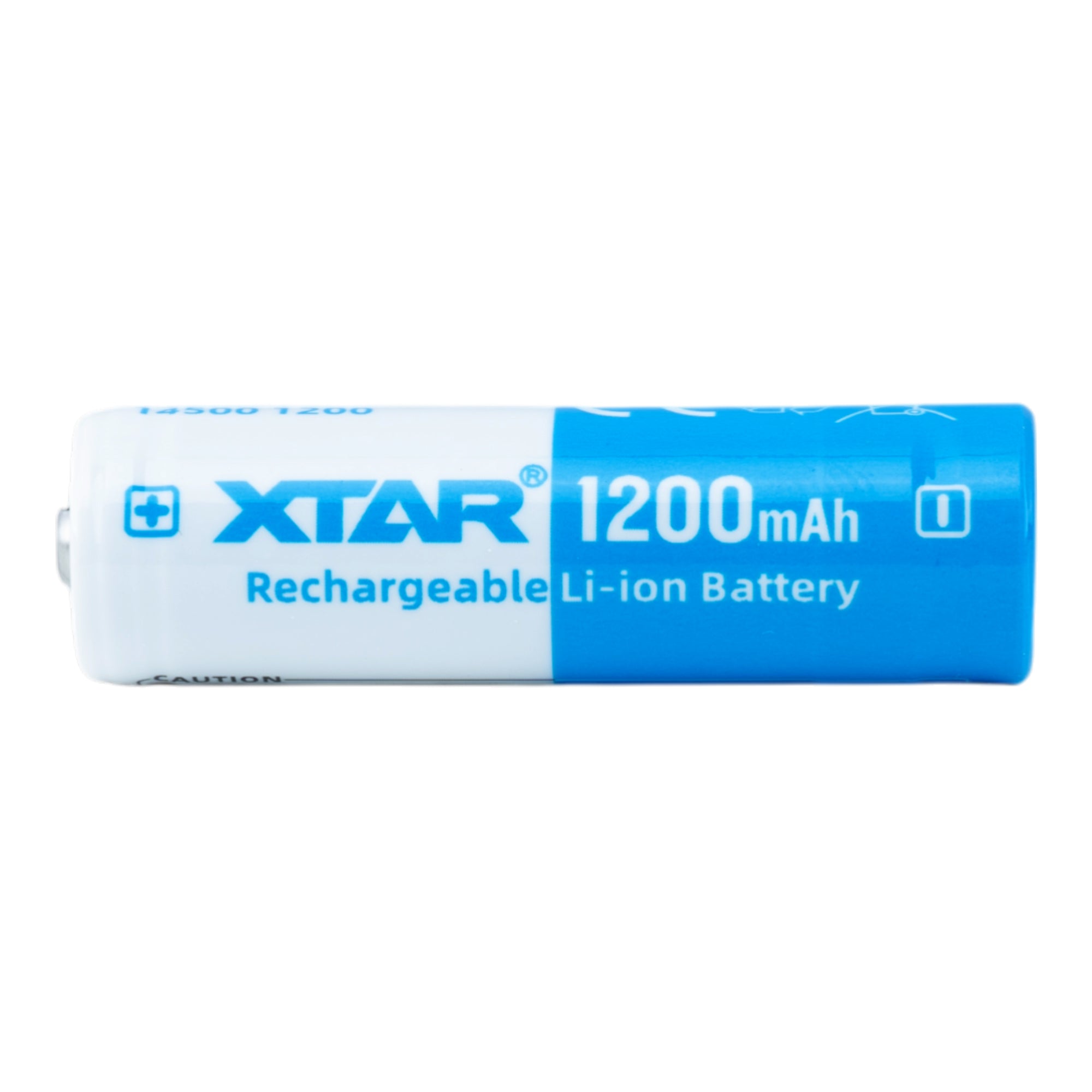

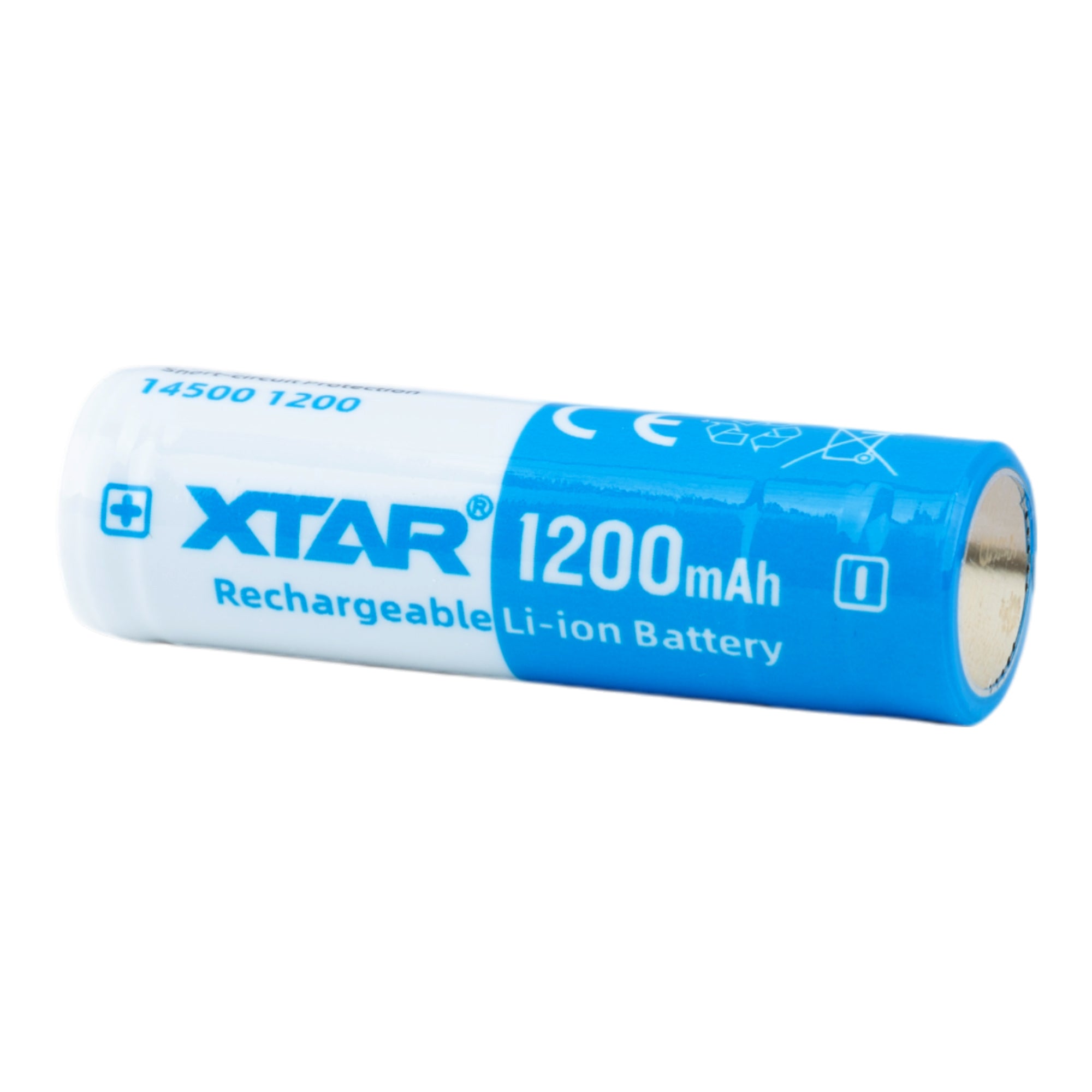

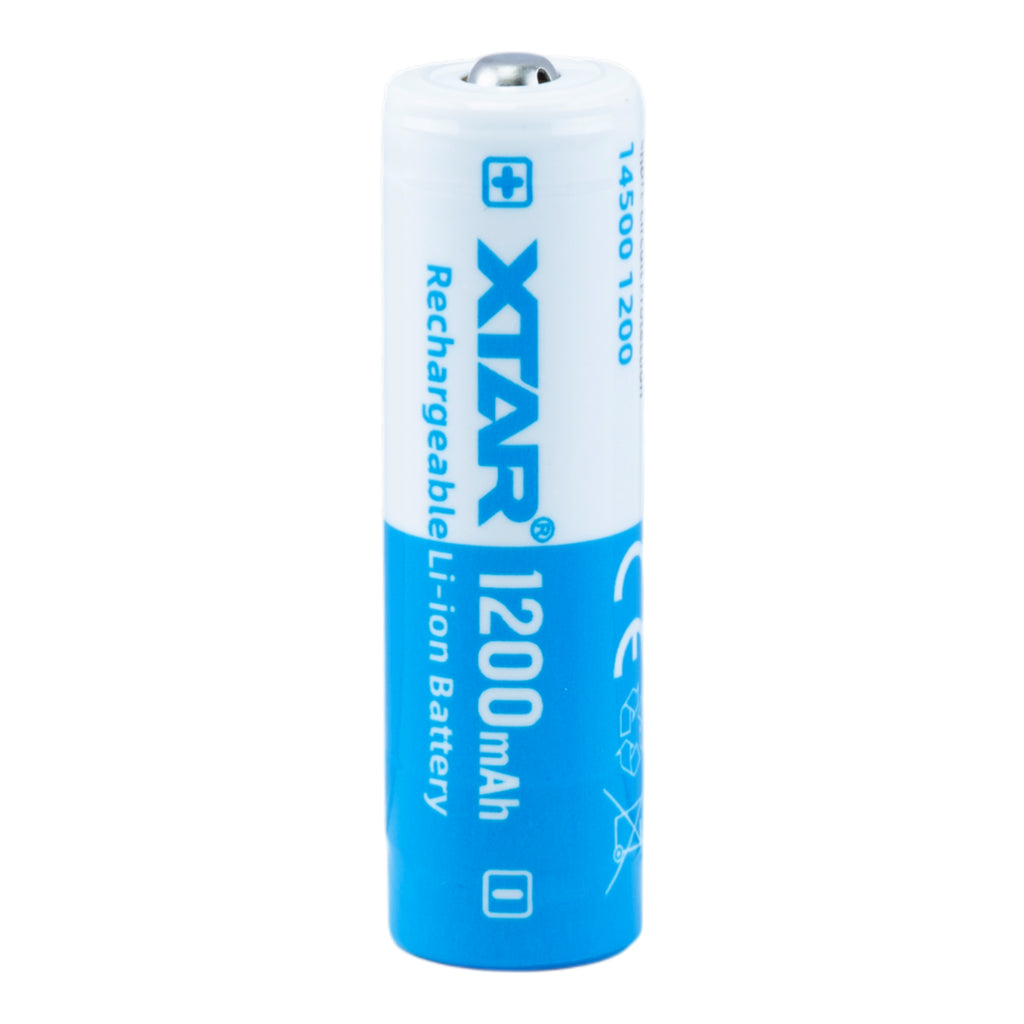

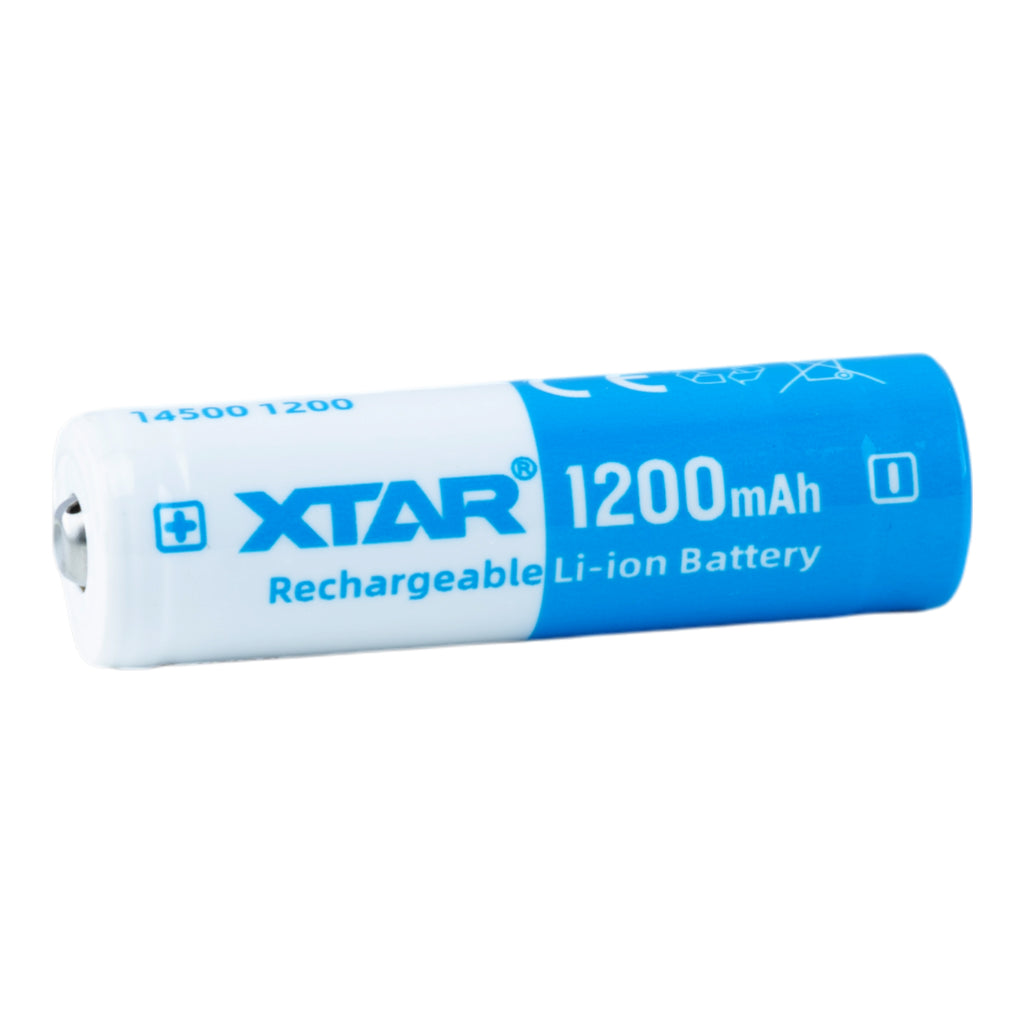

The XTAR 3.6V 14500 1200mAh Lithium Battery delivers high-capacity performance and enhanced safety in a compact form factor. With a genuine 1200mAh rating, protection circuitry, and consistent 2.5A output, this cell is engineered for small devices that require dependable and long-lasting power.
Applications / Uses
- High-performance LED flashlights
- Portable compact electronics
- Professional lighting tools
- Measurement and inspection devices
- Hobby and specialty power applications
SPECIFICATIONS
| Model | 14500 |
| Nominal Capacity | 1200mAh |
| Nominal Voltage | 3.6V |
| Fully Charged Voltage | 4.2V |
| Discharge End Voltage | 2.5V |
| Max Continuous Discharge Current | 2.5A |
| Transport Voltage | 3.7V–3.9V |
| Protected | Yes |
| Positive Terminal | Button Top |
| Cycles | 500+ |
| Storage Temperature | -20~50℃ (Best 25±5℃) |
| Dimensions | φ14.3±0.3 × H50.5±0.5 mm |
| Net Weight | ≤20g |
| Data Specification Sheet: | XTAR 3.6V 14500 1200mAh Lithium battery Datasheet |
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If the battery overheats, emits smoke, or shows other signs of failure, stop using it immediately. Move the battery to a safe, non-flammable surface (e.g., sand or concrete) and follow emergency protocols.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
