Key Features
- 850mAh Nominal Capacity: Reliable energy output with a guaranteed minimum capacity of 800mAh.
- Integrated Protection Circuit: Built-in PCB safeguards against overcharge, over-discharge, and over-current.
- Stable 2.5A Discharge: Maintains consistent voltage under continuous load conditions.
- Extended Cycle Life: Rated for 800+ charge cycles for long-term dependability.
- Protected Button Top Design: Optimized for compact devices requiring added safety.
Overview

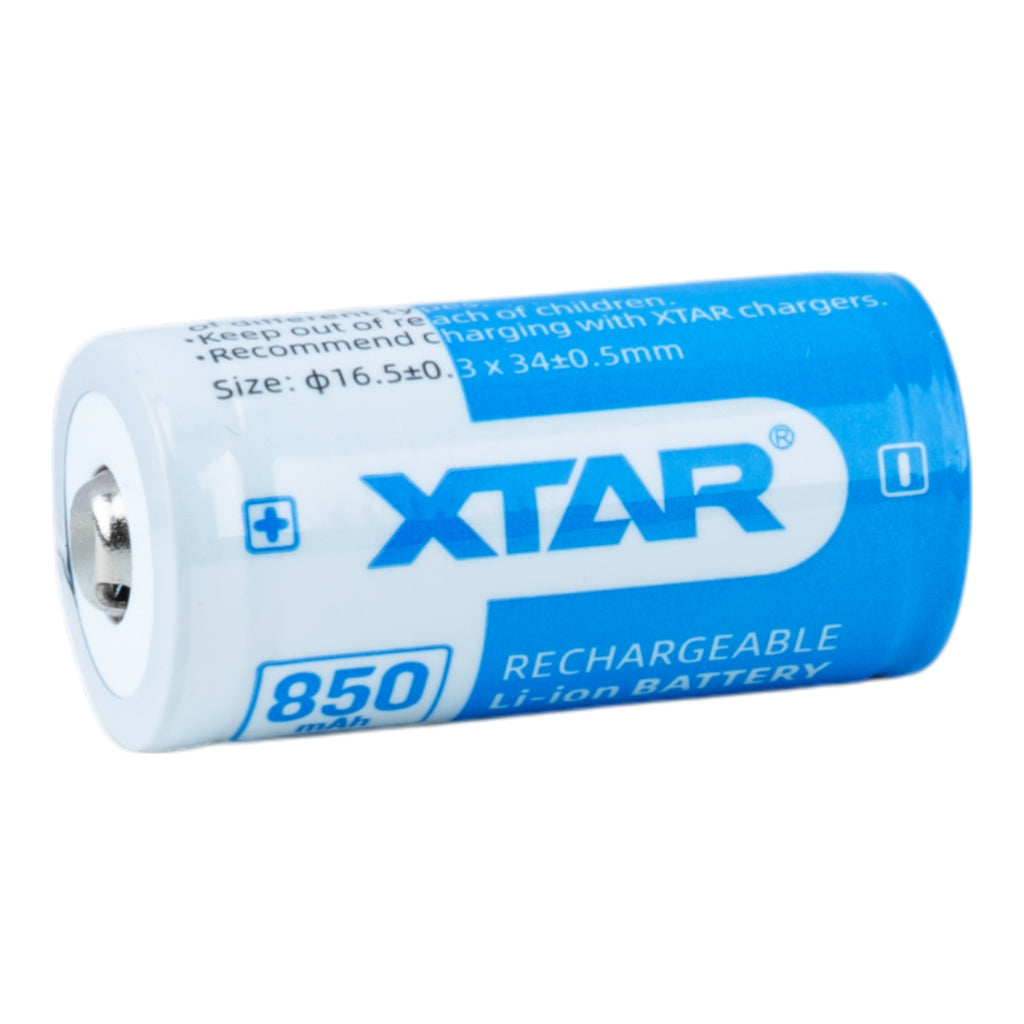

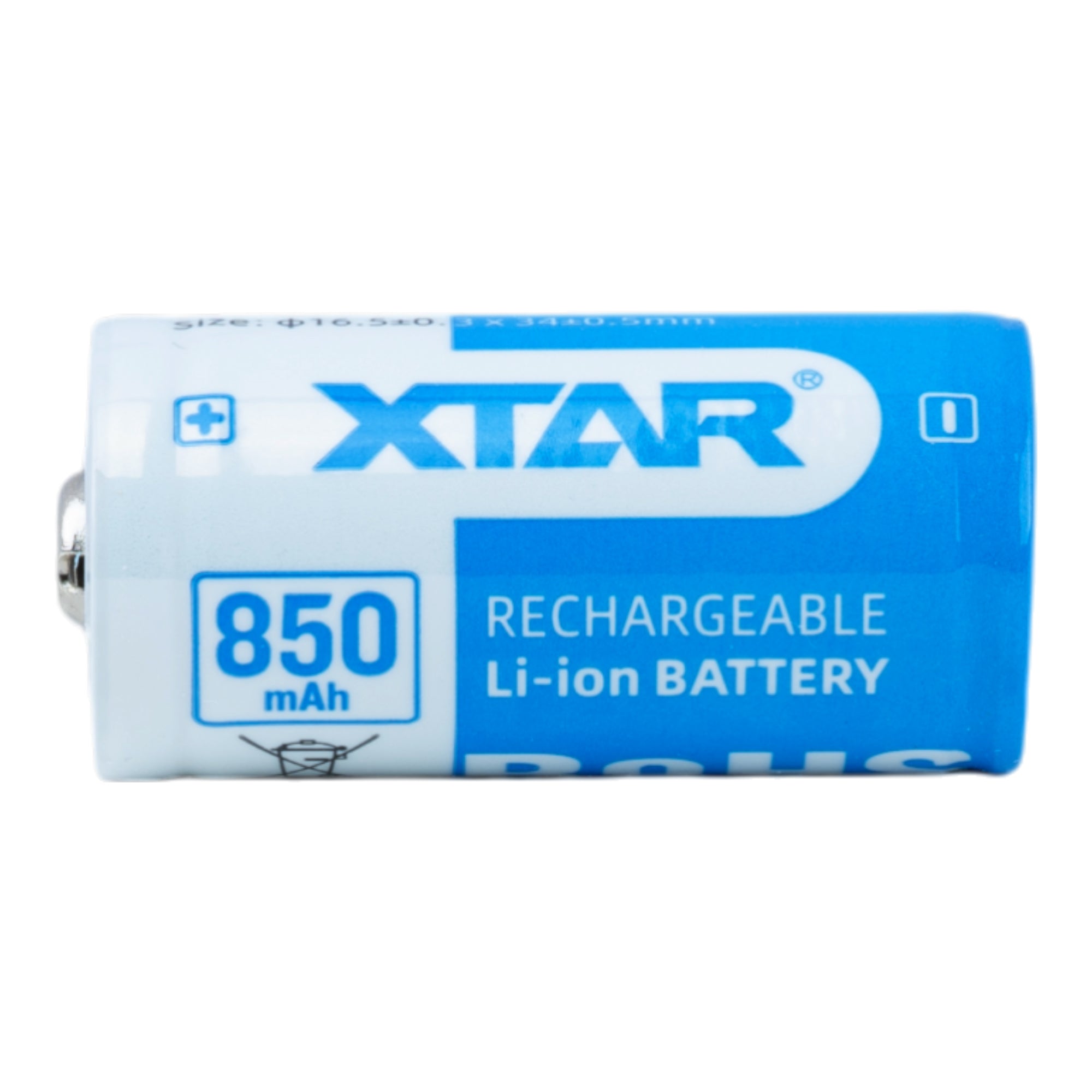

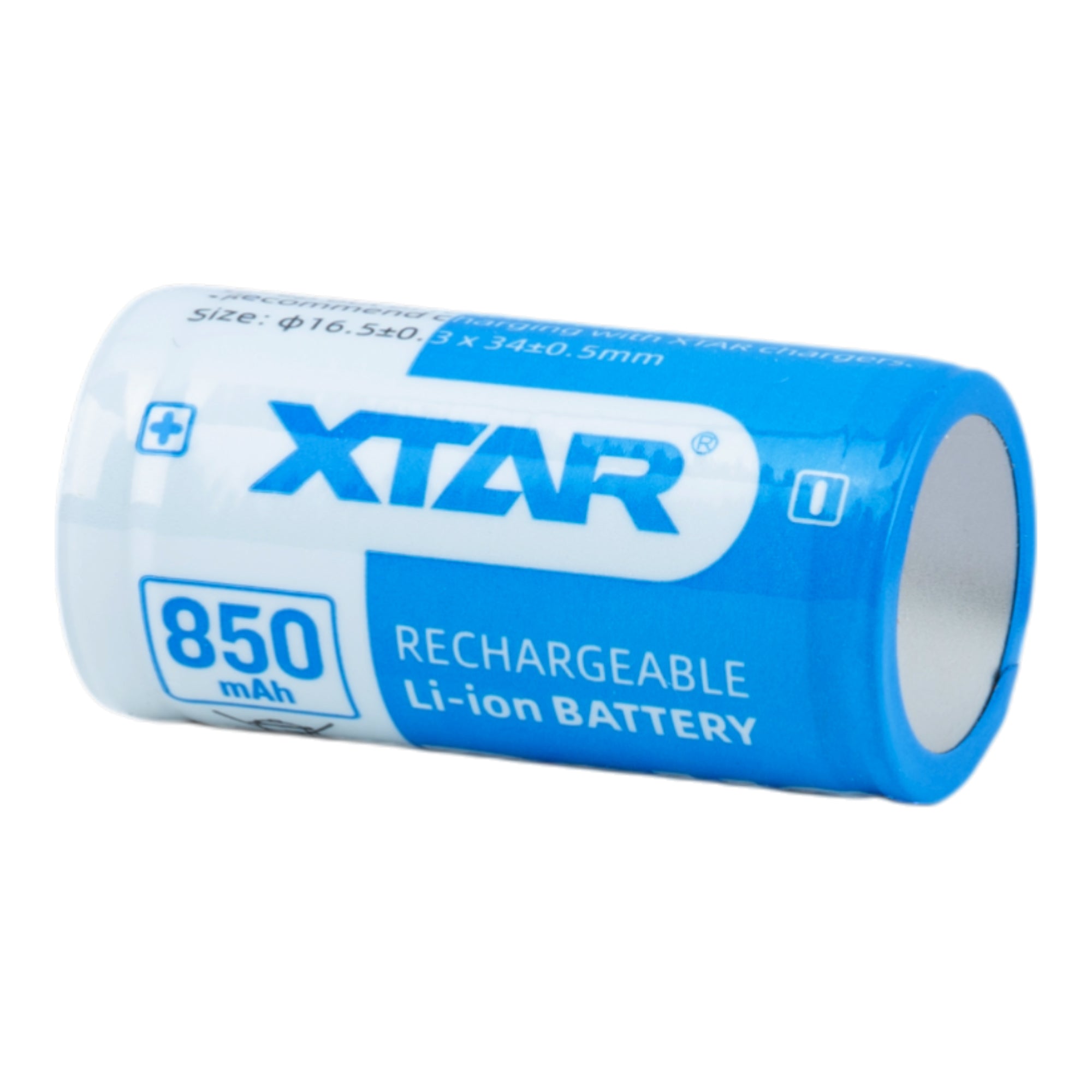

The XTAR 16340 850mAh rechargeable lithium-ion battery is engineered for consistent performance and enhanced protection. Featuring a button top terminal and integrated PCB, this cell delivers stable output with a maximum continuous discharge of 2.5A. Its compact size, long cycle life, and protective features make it a dependable power solution for precision electronics and portable systems.
Applications / Uses
- High-output LED flashlights
- Portable electronic instruments
- Medical and monitoring equipment
- Security and inspection devices
- Compact rechargeable power systems
SPECIFICATIONS
| Manufacturer: | XTAR |
| Battery Size: | 16340 |
| Positive Terminal: | Button Top |
| Protected: | Yes, PCB |
| Nominal Capacity: | 850mAh |
| Minimum Capacity: | 800mAh |
| Max Continuous Discharge: | 2.5A |
| Nominal Voltage: | 3.6V |
| Charge Voltage: | 4.2 ±0.03V |
| Discharge Cut-Off Voltage: | 2.5V |
| Cycle Life: | 800+ |
| Internal Resistance: | ≤130mΩ |
| Approx. Dimensions: | 16.5mm × 34.0mm |
| Approx. Weight: | ≤18.2g |
| Data Specification Sheet: | XTAR 16340 850mAh Datasheet |
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If a cell shows signs of thermal runaway (e.g., smoke, swelling, hissing, or heat), stop use immediately and, if it can be done safely, move it to a non-flammable surface (e.g., concrete or sand) away from combustible materials. Lithium-ion cells burn as Class B fires — use an ABC / dry-chemical fire extinguisher, or douse with large amounts of water to cool the cell and prevent the fire from spreading. Do not rely on a small spray; thorough cooling is required, and cells can reignite from residual heat, so monitor the area afterward. (Class D extinguishers are intended for lithium-metal batteries, not lithium-ion.) For any fire beyond a single small cell, evacuate and call emergency services.
