Key Features
- Large 7000mAh capacity for maximum runtime
- 10A max continuous discharge for stable high-power output
- Rated for 500+ charge cycles for long-term reliability
- Integrated protection circuit ensures safe operation
- Big button-top terminal for improved device compatibility
Overview

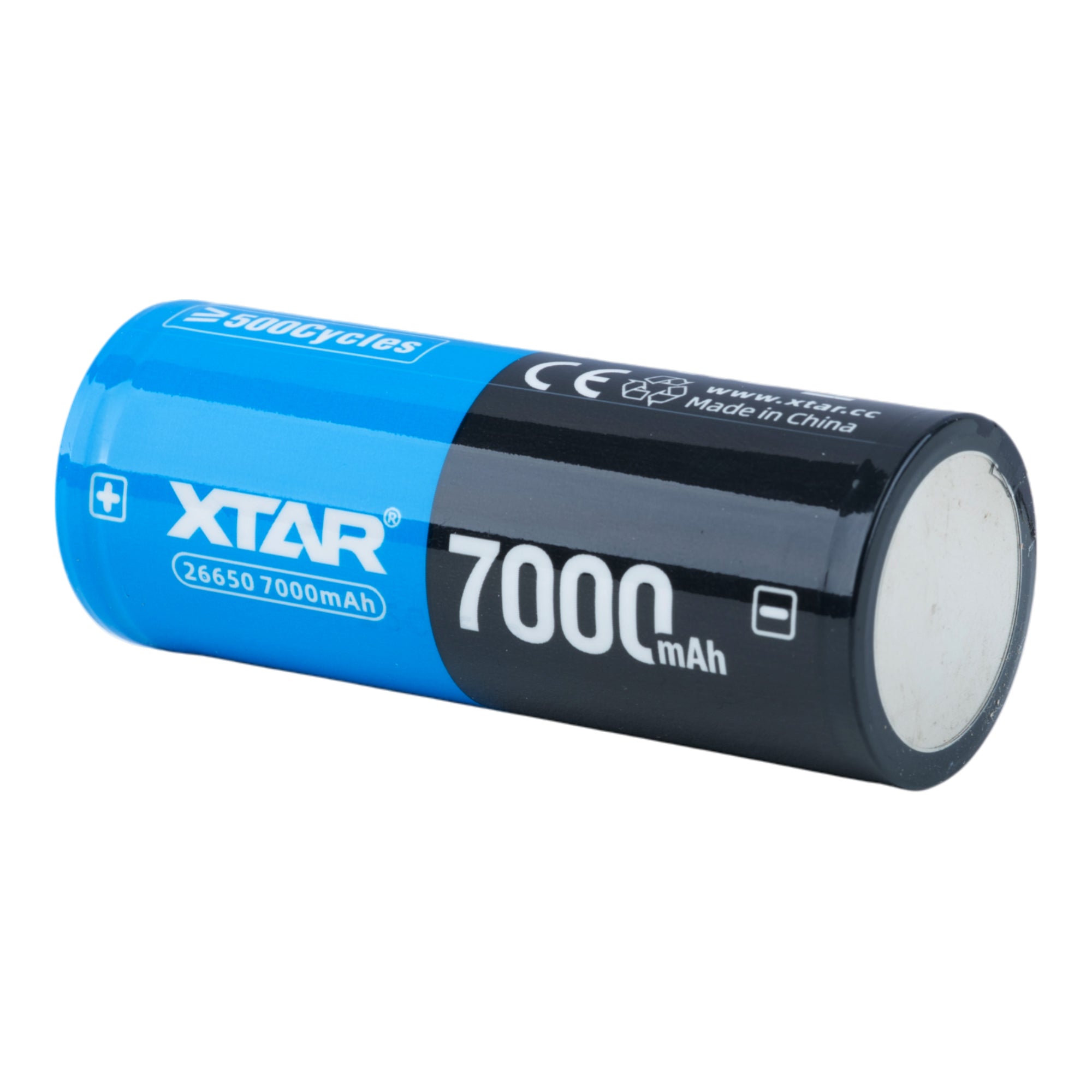

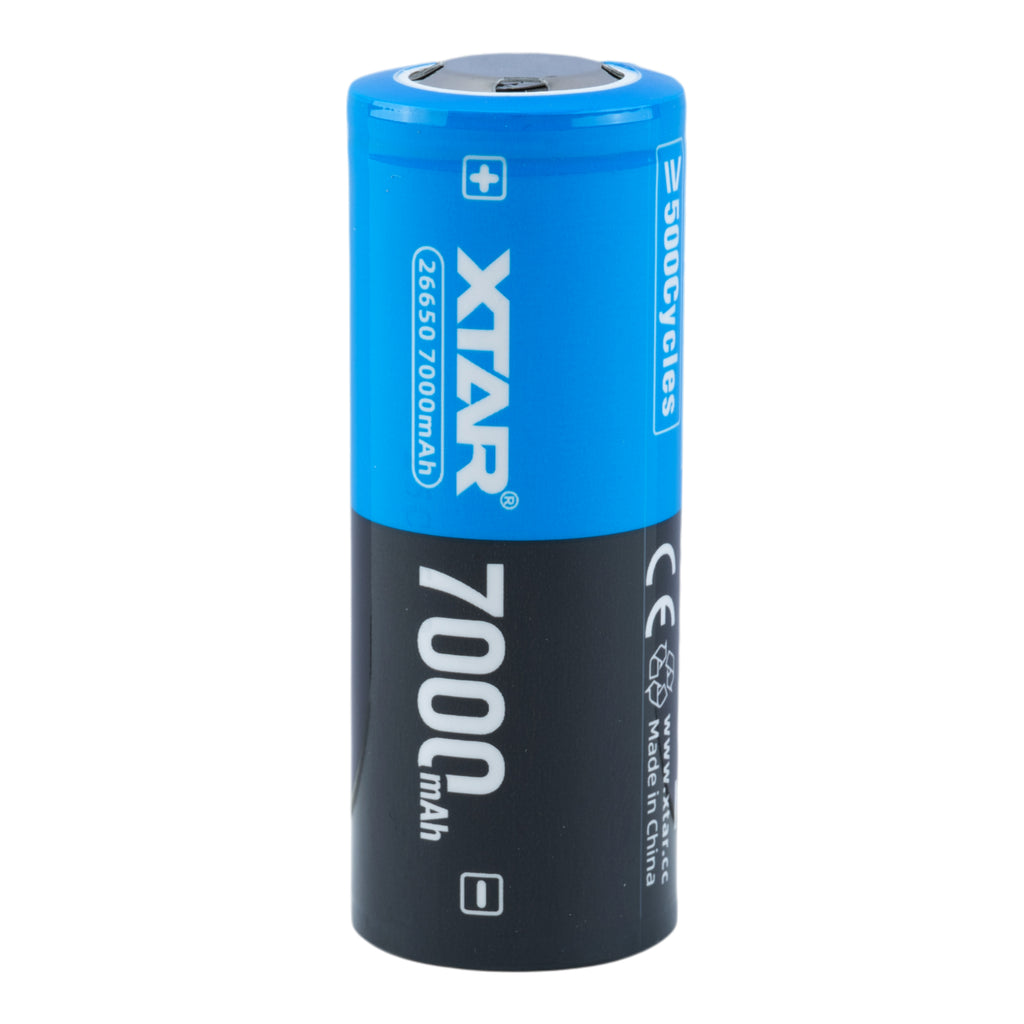

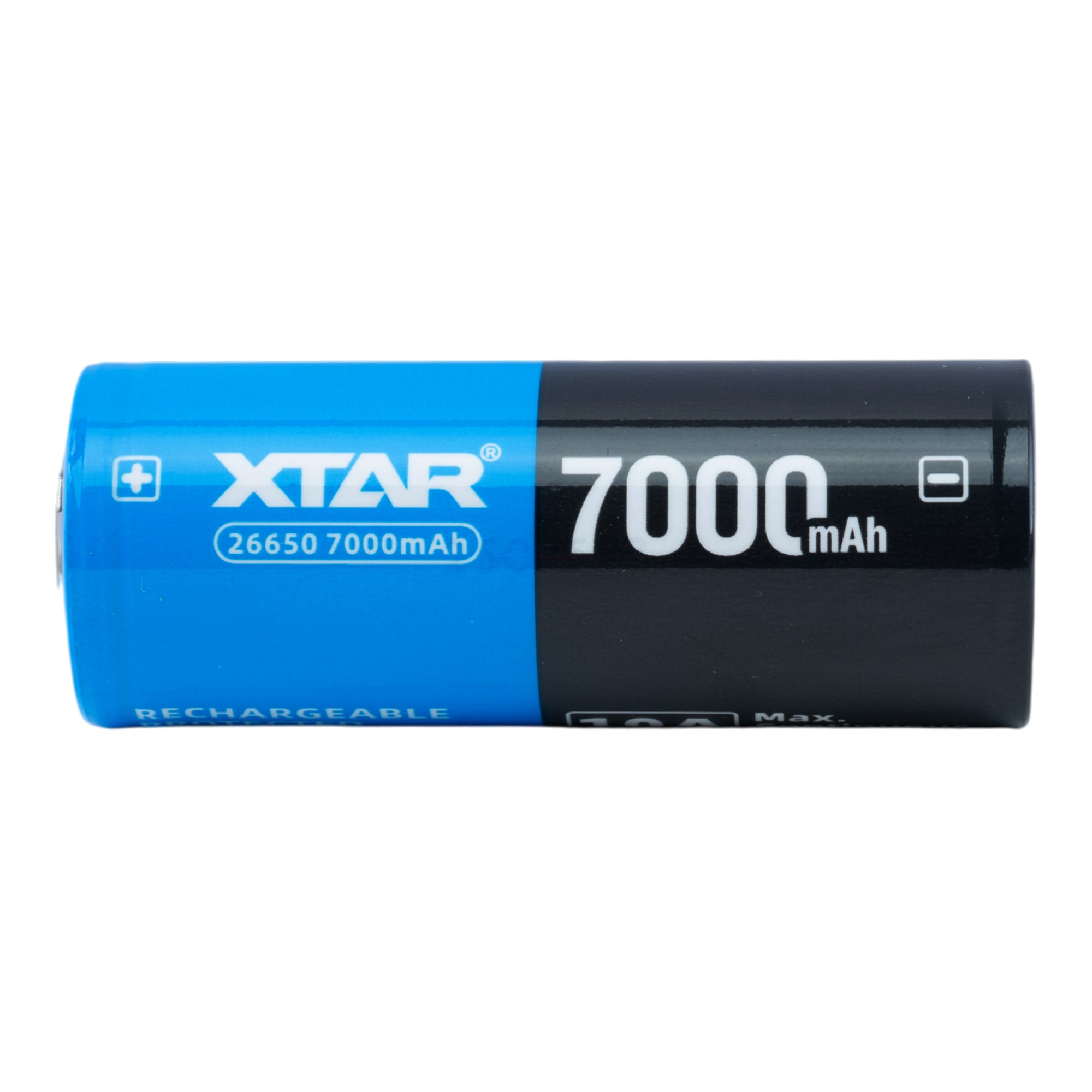

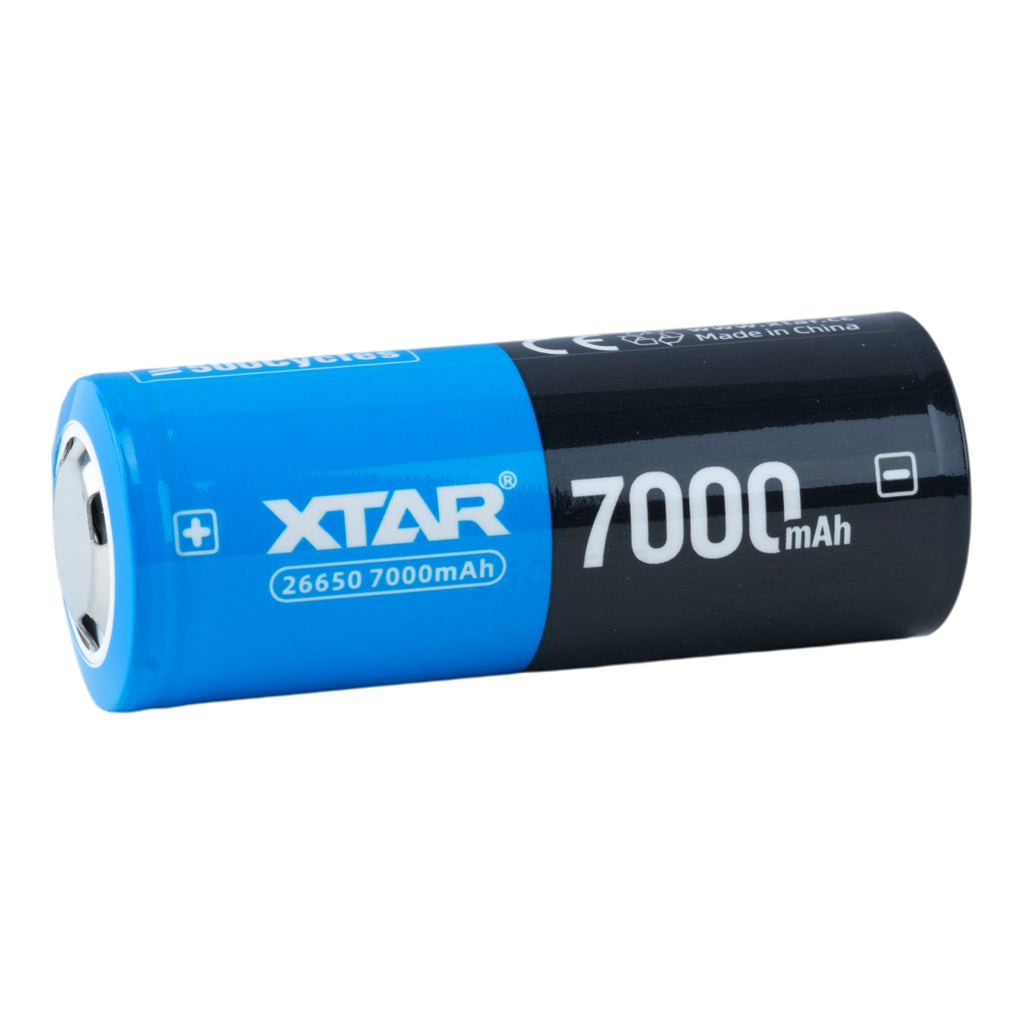

The XTAR 3.6V 26650 7000mAh Lithium Battery is built for high-capacity applications requiring dependable performance and enhanced safety. With a robust 7000mAh capacity, 10A discharge capability, and integrated protection circuit, this big button-top cell delivers consistent, long-lasting power for both professional and everyday equipment.
Applications / Uses
- High-capacity LED flashlights
- Portable lighting and work lamps
- High-demand electronic devices
- Battery packs requiring large-format cells
- Specialty and hobby electronics
SPECIFICATIONS
| Model | 26650 7000mAh |
| Capacity | 7000mAh |
| Voltage | 3.6V |
| Max Discharge Current | 10A |
| Charging Voltage | 4.2±0.03V |
| Charging Current | 1.35±0.15A |
| Operating Temperature | -20 to 60℃ |
| Storage Temperature | -20 to 45℃ (Recommended -5~35℃) |
| Cycle Life | 500+ |
| Protected | Yes |
| Positive Terminal | Big Button Top |
| Dimensions | Φ26.5±0.3 × H69.3±0.5 mm |
| Net Weight | ≤108g |
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If the battery overheats, emits smoke, or shows other signs of failure, stop using it immediately. Move the battery to a safe, non-flammable surface (e.g., sand or concrete) and follow emergency protocols.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
