Key Features
- 3000mAh / 3950mWh High Capacity: Delivers consistent, high-energy output per cell with a rated cycle life of 1200+ charges, providing long-term reliability and cost efficiency over repeated use.
- Constant 1.5V Output: Maintains a stable 1.5V nominal voltage throughout the discharge cycle, delivering consistent performance in devices designed for standard AA alkaline batteries.
- Built-In USB-C Charging Port: Each battery features an integrated USB-C charging port, enabling direct recharging from any standard 5V USB-C power source at 0.35A without the need for a separate charger.
- 2.5A Maximum Discharge Current: Supports up to 2.5A continuous discharge for reliable performance across a wide range of everyday and moderate to high-drain AA-powered applications.
- Multi-Status LED Indicator: Integrated LED provides clear status indication — 1Hz flash during charging, solid when complete, 8Hz high-speed flash for unconnected battery or short circuit detection, and blink pattern on low voltage warning.
Overview

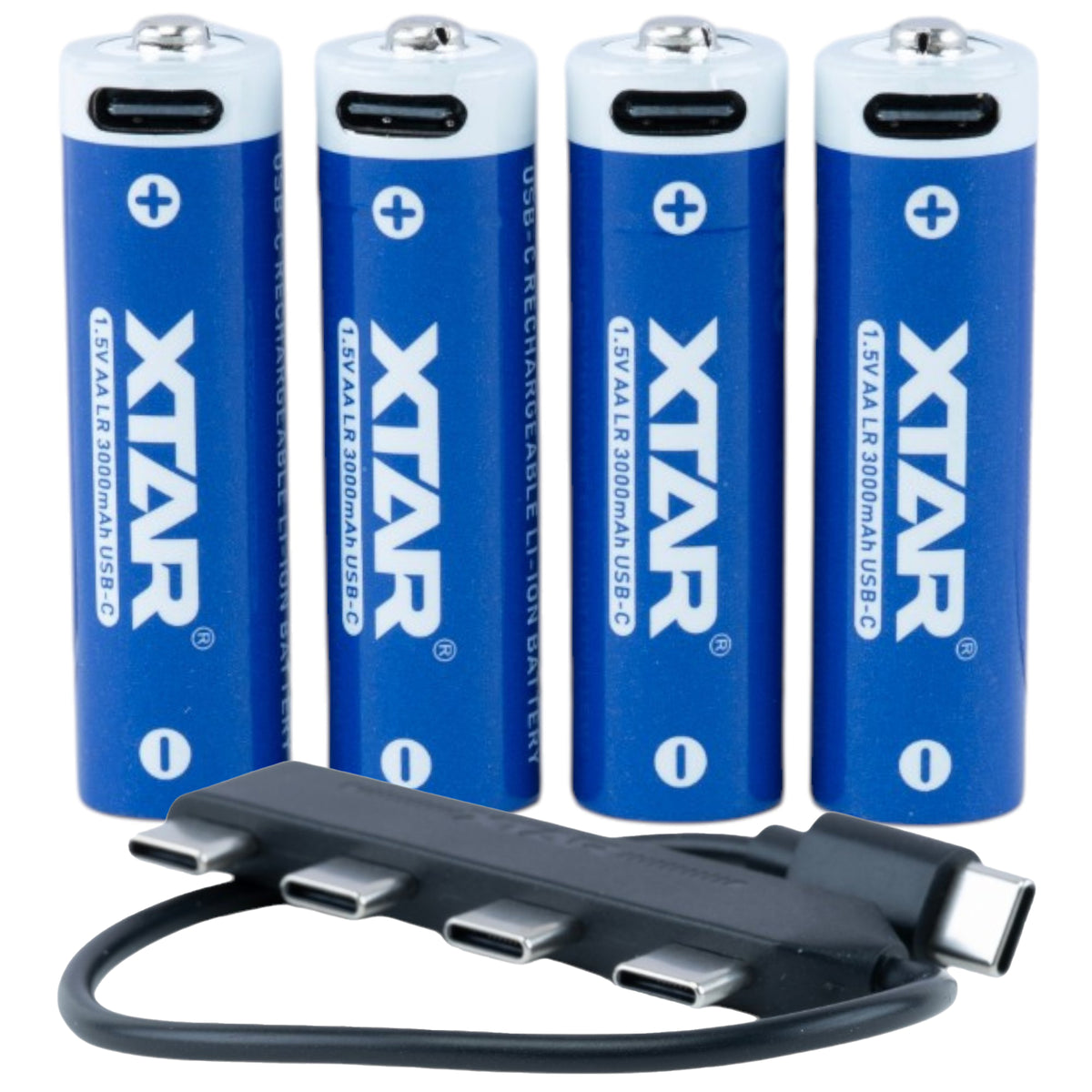

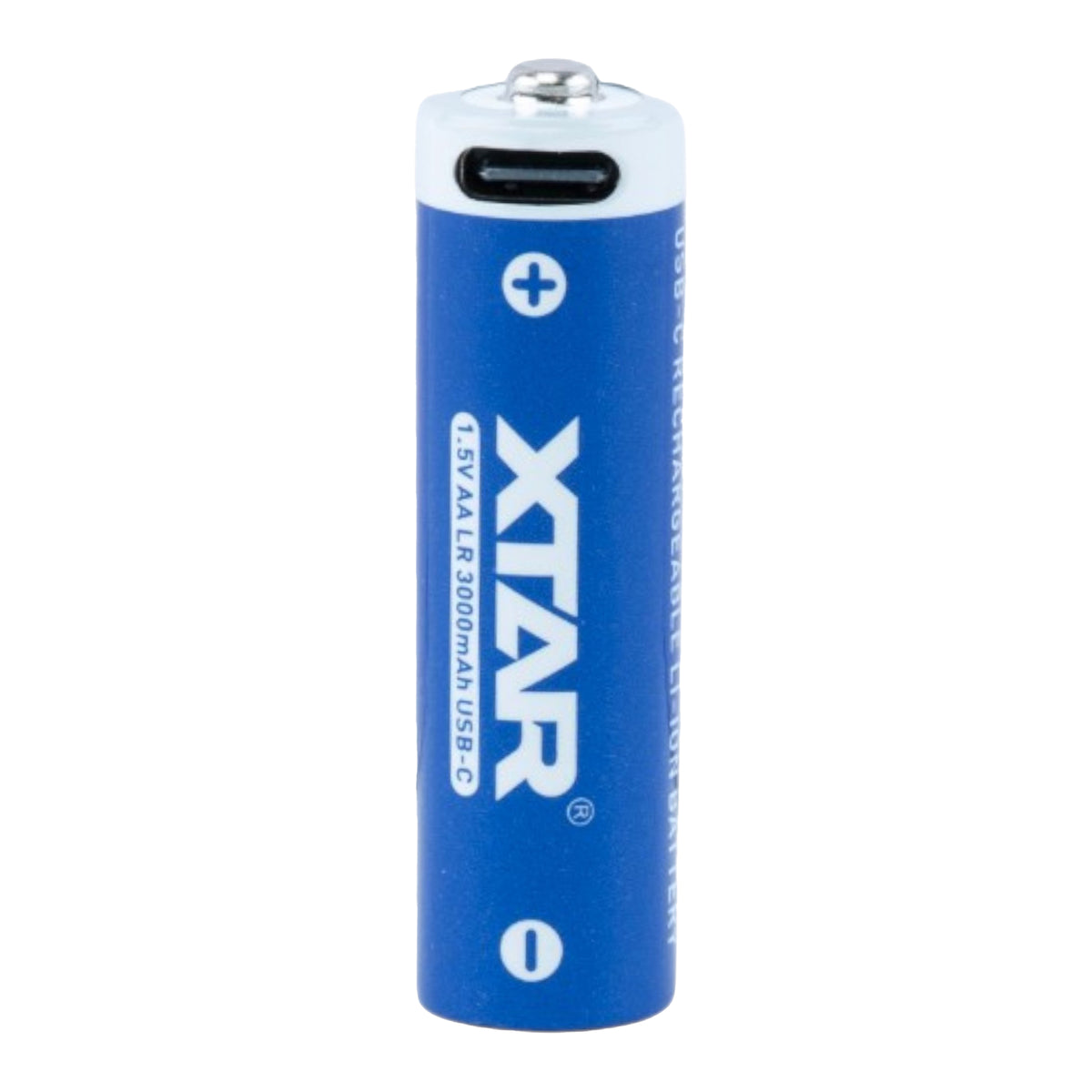

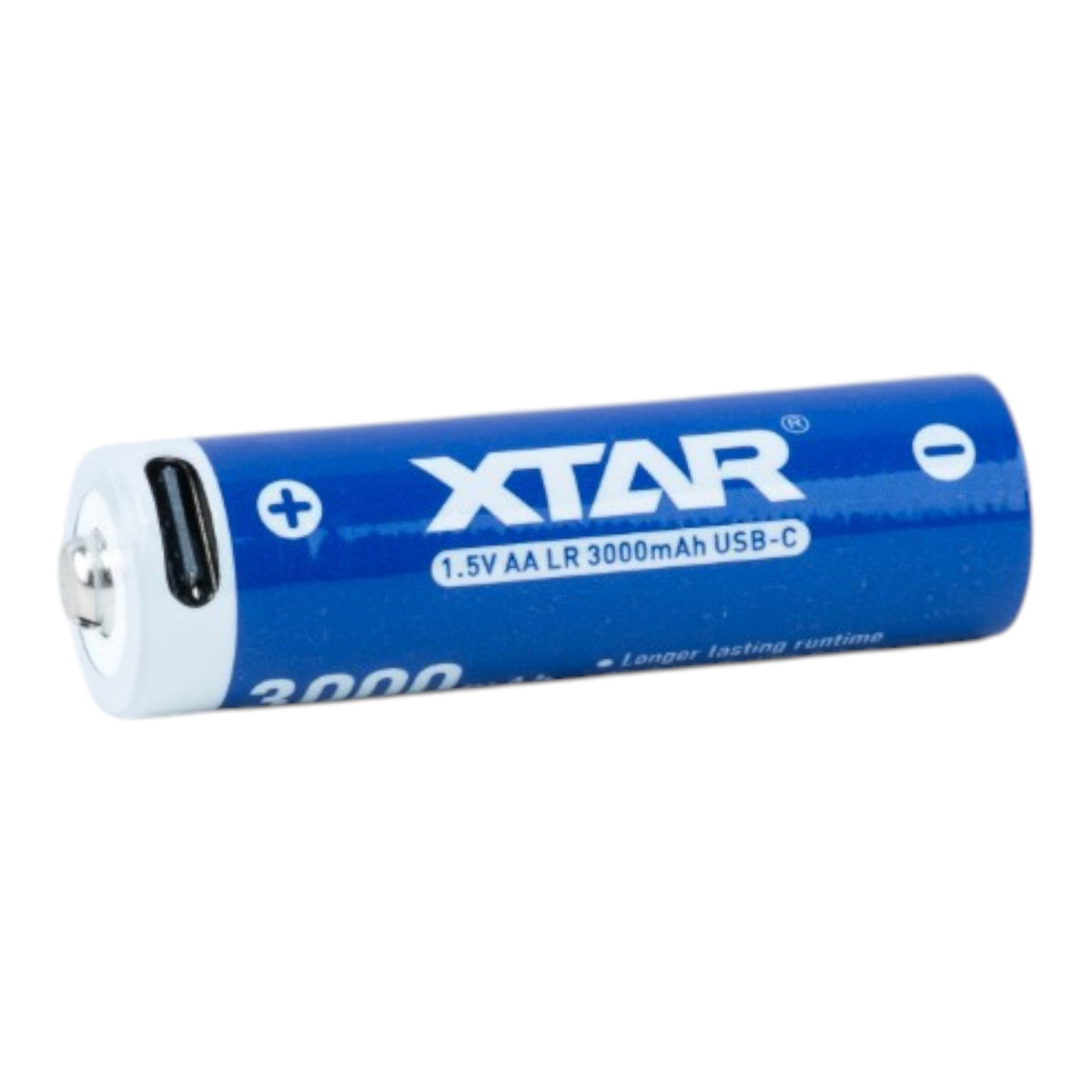

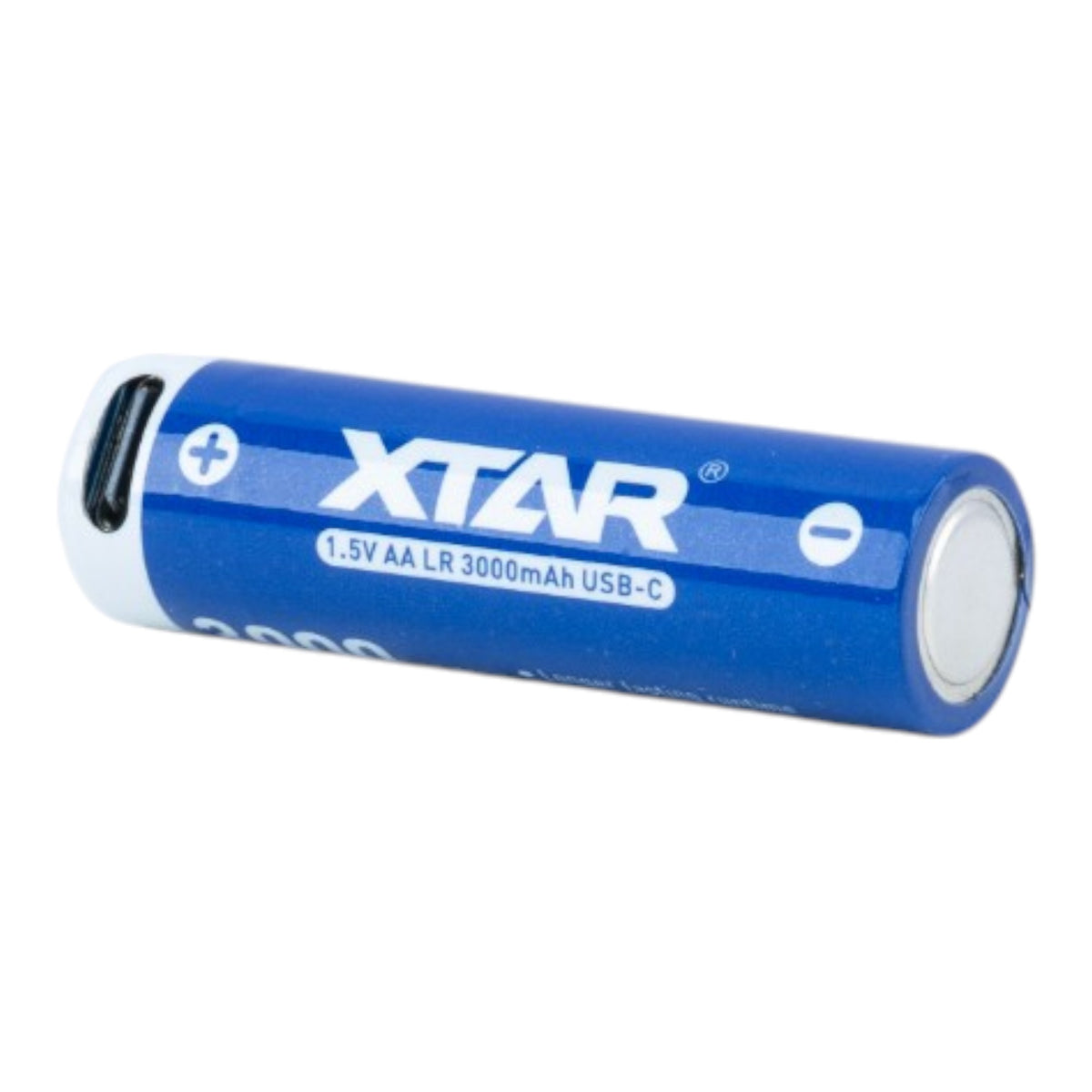

The XTAR 1.5V AA LR 3000 is a USB-C rechargeable lithium-ion AA battery engineered to deliver stable, constant 1.5V output — matching the voltage profile of standard alkaline AA cells while offering the long-term economy and convenience of a built-in rechargeable power source. Each cell provides 3000mAh / 3950mWh of capacity with a rated cycle life of 1200+ charges. The integrated USB-C charging port allows direct recharging from any standard 5V USB-C source at 0.35A, eliminating the need for a dedicated external charger. The multi-status LED indicator provides clear, real-time charge status visibility at every stage of the charge and discharge cycle. Operating across -20°C to 60°C, the LR 3000 is suited to indoor and outdoor applications year-round. Compatible also with the XTAR L8 charger for those who prefer a dedicated charging solution. This listing includes two batteries.
Applications / Uses
- Smart door locks, digital cameras, and home security devices requiring stable 1.5V AA power over extended use periods
- Wireless microphone transmitters, wireless mice, and low-drain electronics benefiting from long standby runtime
- Home medical equipment, audio recorders, and personal grooming devices requiring dependable everyday power
- Portable lighting, camping equipment, and outdoor electronics where built-in USB-C recharging adds real convenience
- Any device designed for standard AA alkaline batteries where rechargeable convenience and long cycle life are desired
Specifications
| Brand: | XTAR |
| Model: | 1.5V AA LR 3000 USB-C |
| Battery Type: | AA Rechargeable Lithium-Ion |
| Nominal Capacity: | 3000mAh (3950mWh) |
| Nominal Voltage: | 1.5V |
| Discharge Cut-off Voltage: | 0.9+/-0.1V |
| Max Discharge Current: | 2.5A |
| Charging Voltage: | 5V |
| Charging Current: | 0.35+/-0.05A |
| Charging Port: | Built-In USB-C |
| Cycle Life: | 1200+ |
| Protected: | Yes (PCB) |
| Positive Terminal: | Button Top |
| LED Indicator: | Yes — 1Hz flash = charging / solid = complete / 8Hz flash = unconnected or short circuit / blink x8 = low voltage |
| Operating Temperature: | -20°C to 60°C |
| Charging Temperature: | 0°C to 45°C |
| Storage Temperature: | -20°C to 50°C (best at 25+/-5°C) |
| Dimensions: | 14.3+/-0.3mm (D) x 50.3+/-0.5mm (H) |
| Net Weight: | 20.5g per cell |
| Pack Quantity: | 2 batteries |
| Data Specification Sheet: | View Datasheet |
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or for e-cigarettes, vaporizers, or similar devices.
-
Thermal Runaway: A chain reaction where heat from a failing battery
causes further overheating, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid damage, and store batteries in a cool, dry place.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. Continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger specifically designed for lithium-ion batteries and ensure the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to extreme heat, fire, or liquids.
- Do not short circuit, puncture, crush, or modify the battery.
- Do not charge or discharge beyond the manufacturer’s voltage range.
- Do not dispose of in regular trash—always recycle at approved facilities.
- Emergency Response: If a cell shows signs of thermal runaway (e.g., smoke, swelling, hissing, or heat), stop use immediately and, if it can be done safely, move it to a non-flammable surface (e.g., concrete or sand) away from combustible materials. Lithium-ion cells burn as Class B fires — use an ABC / dry-chemical fire extinguisher, or douse with large amounts of water to cool the cell and prevent the fire from spreading. Do not rely on a small spray; thorough cooling is required, and cells can reignite from residual heat, so monitor the area afterward. (Class D extinguishers are intended for lithium-metal batteries, not lithium-ion.) For any fire beyond a single small cell, evacuate and call emergency services.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
