Description
The XTAR Dragon VP4 Plus 4 Bay Digital Battery Charger is a powerhouse of versatility and safety, engineered to cater to the needs of modern tech enthusiasts. This charger features four independent battery slots and multiple charging speeds, making it ideal for high-demand users. Charge faster with options of 2A for two batteries or 1A for all four, or choose a slower charge for smaller batteries. With its 0V activation function, the D4 can revive over-discharged batteries, effectively extending their usability. The charger's elaborate heat dissipation design and ABS durable fireproof shell ensure safety and durability, even under intensive use. Its sophisticated three-stage charging mechanism (TC-CC-CV) maximizes the lifespan of your batteries, while built-in reverse polarity and short circuit protections offer peace of mind. Compact yet robust, the D4 is the perfect blend of functionality and safety, designed to keep you powered up without hassles.
- Fast Charging Options: Features two charging speeds – 1A x 2 or 2A x 1 for rapid, efficient charging.
- Intelligent Design: Unique owl-like UI with dual independent battery slots ensures ease of use and monitoring.
- Safety First: Includes reverse polarity protection, over-discharge activation, and an automatic stop feature for overnight charging.
- Optimized for Vapers: Designed to meet quick charging times and compatible with 18650, 20700, 21700, 26650, and more.
- Durable and Portable: Lightweight with a fireproof ABS shell, perfect for travel and home use with dimensions of 130mm x 58mm x 33mm and a weight of 103g.
Compatible with:
Lithium Ion/IMR/INR/ICR: 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650, 32650
1.2V NiMh/NiCd: AAAA / AAA/ AA / A / SC / C / D
11.V/3S: LiPo battery packs
Technical Info:
- Input voltage: DC 12V 3.0A
- Output current:2A x 2 / 1A x 4 / 0.5A x 2(CH2 and CH3) + 1A x 2
- Cutoff Voltage for Li-ion Battery: 4.2V ±.05V
- SIZE/TYPE COMPATIBILITY - ✔ 18650 ✔ 20700 ✔ 21700

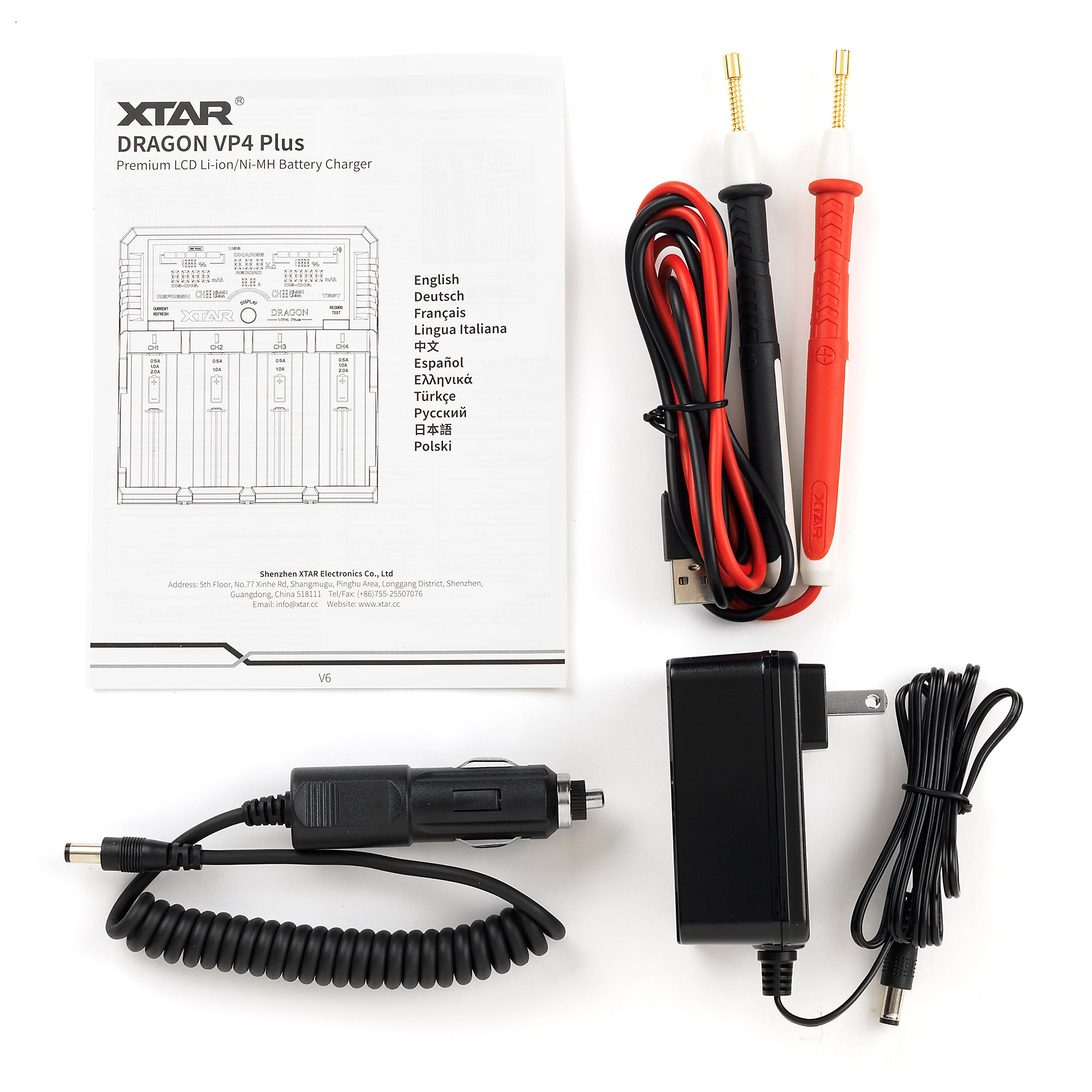

- XTAR Dragon VP4 Plus 4 Bay Digital Battery Charger User Manual
- Xtar VP4 digital battery charger
- Probes
- Xtar power cable (USA)
- Xtar DC 12V car adapter
- Carry Pouch with handles
- Warranty Card
- User Manual
- Scratch and Check validation serial number
⚠ Important Safety Warnings
Improper use of a battery charger can result in overcharging, short circuits, or damage to the battery, causing FIRE, EXPLOSION, or ELECTRICAL SHOCK. Users must follow all safety guidelines to ensure proper operation. Click here to review the full safety guidelines.
-
Device Compatibility:
- Use the charger only for compatible battery types and sizes as specified by the charger manufacturer. Ensure the charger is appropriate for the battery chemistry, size, and protection status (e.g., unprotected or protected cells).
- Do not charge non-rechargeable batteries (e.g., alkaline or primary cells).
-
Proper Use:
- Only charge batteries in a fireproof or non-flammable area. Avoid charging on beds, couches, or other flammable surfaces.
- Do not force a battery into the charger slot if it does not fit properly. This can damage the charger or battery and may result in unsafe charging conditions.
- Inspect batteries before charging: Do not charge if the battery casing, wrapper, or terminals are damaged, dented, leaking, or bulging.
- Never leave batteries unattended while charging. Monitor the charging process, and unplug the charger when charging is complete.
- Avoid exposing the charger to liquids, high heat, or direct sunlight.
-
Inspection:
- Do not use the charger if the power cord, plug, or device is damaged.
- Inspect both the charger and the battery for any signs of damage before use.
-
Storage & Handling:
- Keep the charger away from children and pets.
- When not in use, unplug the charger and store it in a cool, dry place.
-
Prohibited Activities:
- Do not modify or disassemble the charger.
- Do not attempt to repair a damaged charger—replace it with a new one.
- Avoid using extension cords or adapters that exceed the manufacturer’s recommendations.
-
Emergency Response:
- If the charger or battery emits smoke, sparks, or a burning smell, disconnect the power immediately and move the battery and charger to a safe area.
- In case of fire, use a Class D fire extinguisher or sand to extinguish the flames.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Battery chargers must only be used with compatible battery types and operated in accordance with manufacturer instructions. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to their customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
