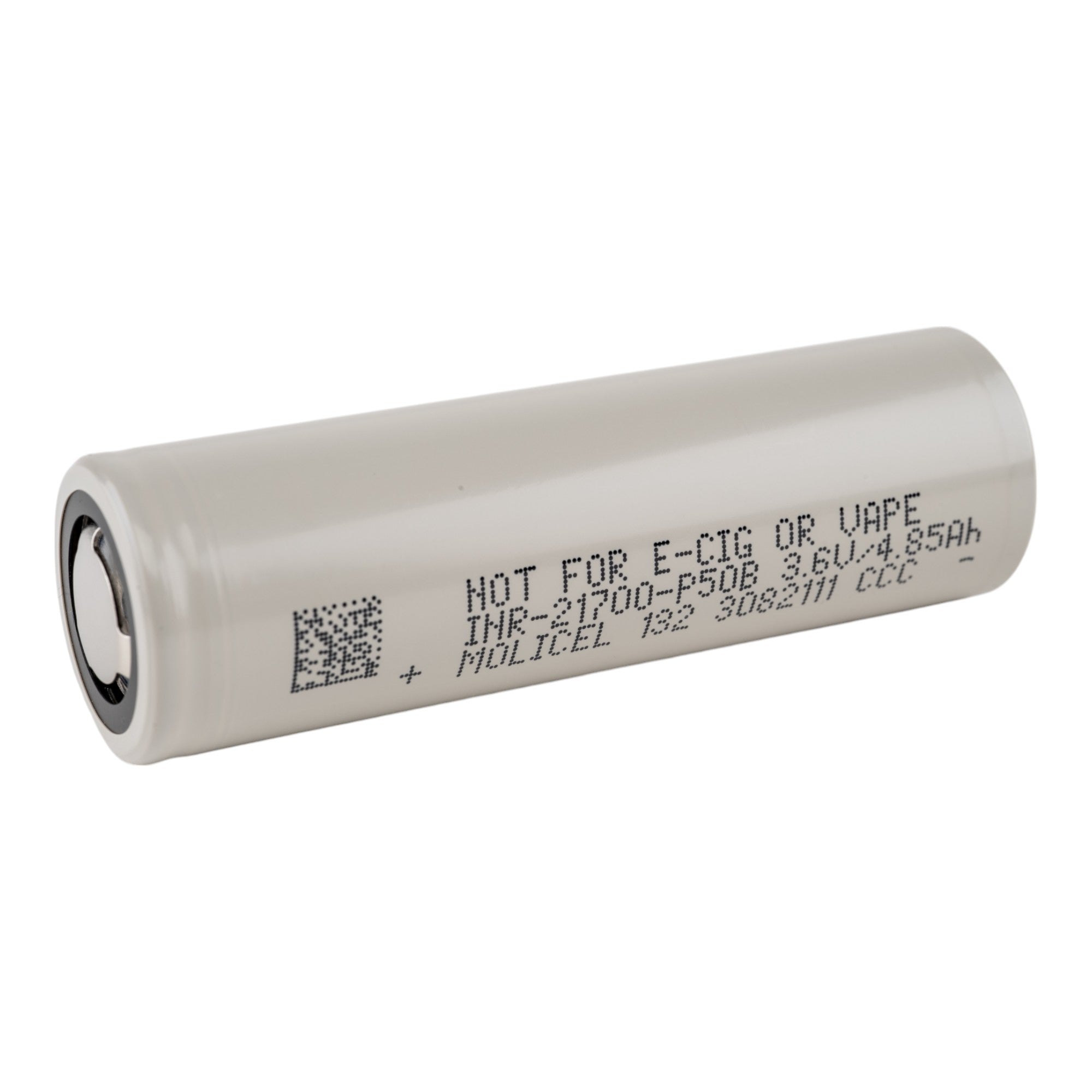

Molicel 21700 P50B 5000mAh 60A Battery


Price:
Sale price$9.99
Stock:
Sold out

Description

sets a new standard for power and energy efficiency in the 21700 format. With a superior power-to-energy ratio, this battery is designed to cater to premium segments, including Hyper EVs, racing sports cars, eVTOLs, 2-wheeled motorcycle racing, and heavy-lift drones. Boasting an impressive 5000mAh capacity and 60A continuous discharge rating, the P50B delivers outstanding performance with low impedance, ensuring efficient power delivery and minimal heat generation.

Key Specifications:

  • Manufacturer: Molicel
  • Model: P50B
  • Size: 21700
  • Nominal Capacity: 5000mAh
  • Continuous Discharge Rating: 60A (80°C Temp cut-off)
  • Nominal Voltage: 3.6V
  • Maximum Voltage: 4.2V
  • Discharge Cut-off Voltage: 2.5V
  • Rechargeable: Yes
  • Approx. Dimensions: 21.55mm x 70.15mm (Max)
  • Approx. Weight: 70g (Max)
  • Country of Origin: Canada or Taiwan

Applications:

Hyper EVs & Racing Sports Cars

  • Designed for Hyper EVs, plug-in hybrid EVs, hybrid EVs, and motocross bikes.
  • High discharge current of 60A for exceptional power.
  • High energy density of 265 Wh/kg for optimal energy storage.
  • Fast charge rate of 5C for rapid recharging.

2-Wheeled Motorcycle Racing

  • Perfect for e-motorcycles, dirt bikes, and off-road motocross bikes.
  • Low impedance of 13.5 m? ensures efficient power flow.
  • High discharge current of 60A for peak performance.
  • High energy density and fast charge rate for intense sports applications.

Drones & eVTOLs

  • Ideal for heavy-lift drones, agricultural drones, cargo drones, and 4-seater eVTOLs.
  • Double the discharge cycle life from 700 to 1400 cycles (+1C, -100W).
  • High discharge current of 60A and energy density of 265 Wh/kg.
  • Fast charge rate of 5C for maximum efficiency.

Backup Battery Units (BBUs)

  • Perfect for backup power in data centers, CSPs, and AI computing environments.
  • Provides over 1.5 minutes of backup time and up to 6 years of long-term storage capability.
  • Supports up to 210W and maximum discharge current of 75A.
  • Optimized thermal behavior for safety and reliable power recovery at 35°C.

The Molicel P50B 21700 battery is a cutting-edge solution for those who demand high-performance power, durability, and efficiency in critical applications. With fast charge rates, long cycle life, and exceptional discharge capabilities, this battery is the ideal choice for electric vehicles, motorsports, drones, and more.


SPECIFICATIONS
Manufacturer: Molicel
Model: 21700
Model: P50B
Positive Terminal: Flat Top
Nominal Capacity: 5000mAh
Continuous Discharge Rating (max): 60A (80C Temp cut-off)
Nominal Voltage: 3.6V
Maximum Voltage: 4.2V
Discharge cut-off Voltage: 2.5V
Protected: NO, UNPROTECTED.
Rechargeable: Yes
Approx. Dimensions: 21.55mm x 70.15mm (Max)
Approx. Weight: 70g (MAX)
Country of Origin: Canda or Taiwan
Data Specification Sheet: Molicel P45B Datasheet

You MUST read the safety warnings and resources before purchasing, using, and/or handling batteries.

WARNING:


Use caution as misusing or mishandling the battery may cause a FIRE or EXPLOSION which may result in personal injury, property damage, or death. The user must have an appropriate understanding of the potential dangers of LITHIUM ION BATTERIES before purchase and usage. No express or implied guarantee of compatibility, suitability, or fitness for any particular purpose or device can be made. This battery is manufactured and sold for the intended use of system integrations with proper protection circuitry or battery packs with a BMS (battery management system) or PCB (circuit board/module). This battery is neither designed nor intended to be used with an E-CIGARETTE, VAPORIZER, or similar device and MUST NOT be used with such devices due to RISK OF FIRE or EXPLOSION. If purchasing this battery for resale purposes, you MUST forward ALL warnings to ALL customers for their reference and safety!
This cell is unprotected and intended for use in protected battery packs only and NOT individually or as a standalone product. In order to operate safely it must have additional protection in the form of a PCB (printed circuit board) or BMS (battery management system), which is not included.



  • DO NOT USE WITH E-CIGARETTE, VAPORIZER, OR SIMILAR DEVICE
  • Additional battery manufacturer and battery industry association warnings for using lithium-ion batteries in e-cigarette or vaping devices can be viewed here: Be-CigaretteSafe.org
  • BATTERY IS ONLY FOR USE IN PROTECTED BATTERY PACKS
  • ONLY ASSEMBLE A BATTERY PACK IF YOU ARE COMPETENT IN DOING SO

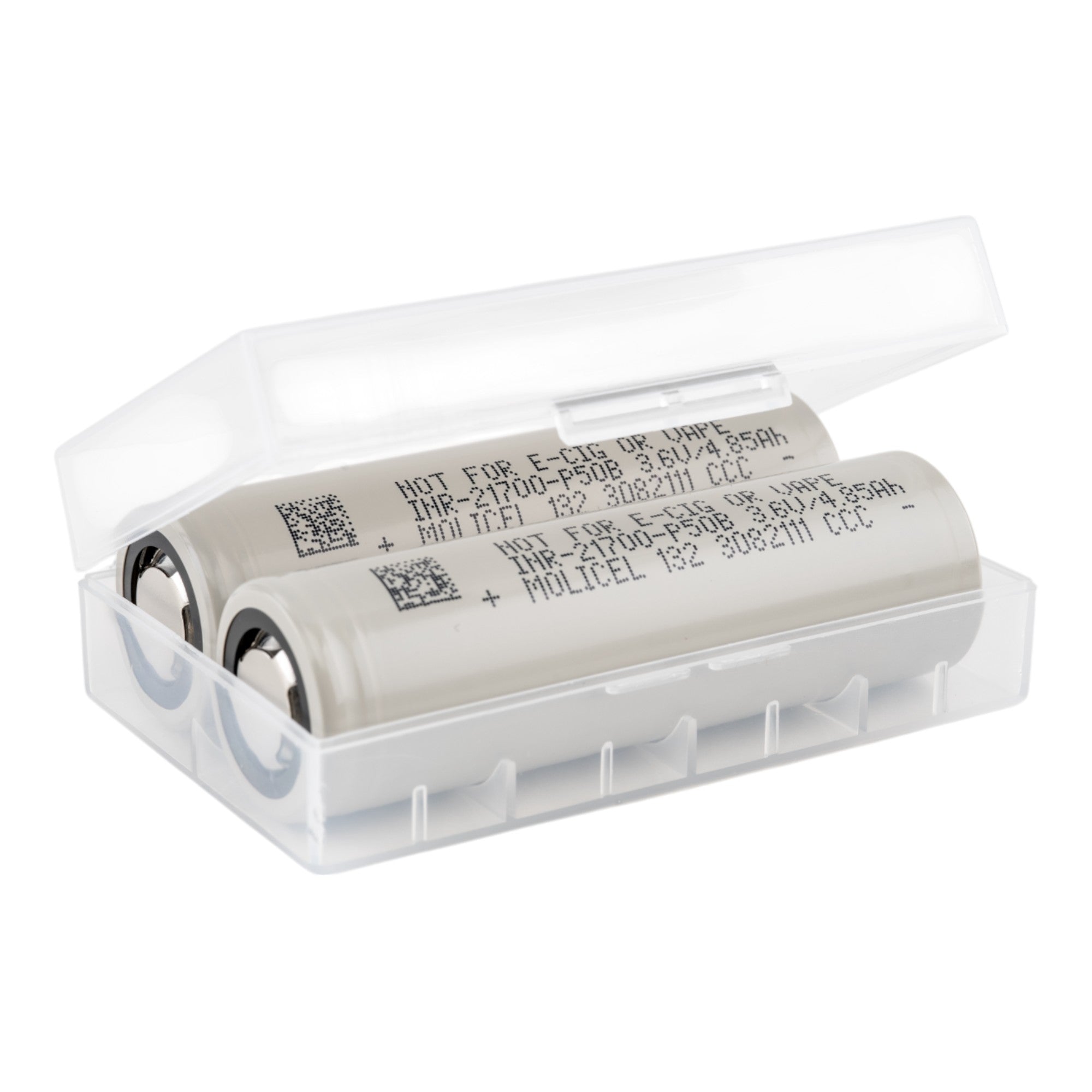

  • DO NOT STORE BATTERY/CELL LOOSE OR IN A POCKET, PURSE, ETC. ALWAYS USE A PROTECTIVE CASE OR BOX FOR STORAGE AND TRANSPORT
  • WHEN NOT IN USE, ALWAYS STORE LITHIUM ION BATTERIES IN THE PROTECTIVE CASE/BOX IN WHICH BATTERIES WERE DELIVERED
  • Misusing or mishandling lithium ion batteries can pose a SERIOUS RISK of PERSONAL INJURY, PROPERTY DAMAGE, OR DEATH
  • BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
  • Usage of batteries is AT YOUR OWN RISK!
  • ONLY use with proper protection circuitry
  • DO NOT short circuit intentionally or unintentionally
  • KEEP AWAY from metal/conductive objects to prevent short circuiting
  • DO NOT use if PVC wrapper or terminal insulator is damaged or torn
  • DO NOT use if battery is damaged in any way
  • DO NOT over-charge or charge above the maximum voltage rating
  • DO NOT over-discharge or exceed the continuous discharge rating
  • DO NOT modify, disassemble, puncture, cut, crush, or incinerate
  • DO NOT expose to liquids or high temperatures
  • DO NOT solder onto battery, spot weld only
  • DO NOT use force to install or install in reverse/backwards
  • ONLY use within manufacturer’s specification
  • KEEP AWAY from pets and children
  • ALWAYS charge in or on a fire-proof surface and never leave batteries charging unattended
  • ONLY use a smart charger designed for this specific type of battery
  • DO NOT mix and match brands and models, old and new, used and unused batteries
  • STOP immediately if while charging/storing/using the battery it emits an unusual smell, feels hot, changes color or shape, or appears abnormal in any way
  • It is your responsibility to determine that your charger or device is functioning properly
  • If exposed to battery electrolyte, flush with water immediately and/or immediately contact a physician or emergency services
  • DO NOT throw away in trash; contact your local jurisdiction for proper recycling or disposal
  • Resellers MUST forward ALL warnings to ALL customers for their reference and safety
