Key Features
- High Power Output: 35A continuous discharge supports demanding electronic systems.
- 3000mAh Capacity: Delivers strong runtime without sacrificing performance.
- Flat Top Terminal: Designed for use in battery packs and custom builds.
- 21700 Size: Offers improved efficiency compared to smaller cell formats.
- Rechargeable Design: Built for repeated use with consistent output.
Overview

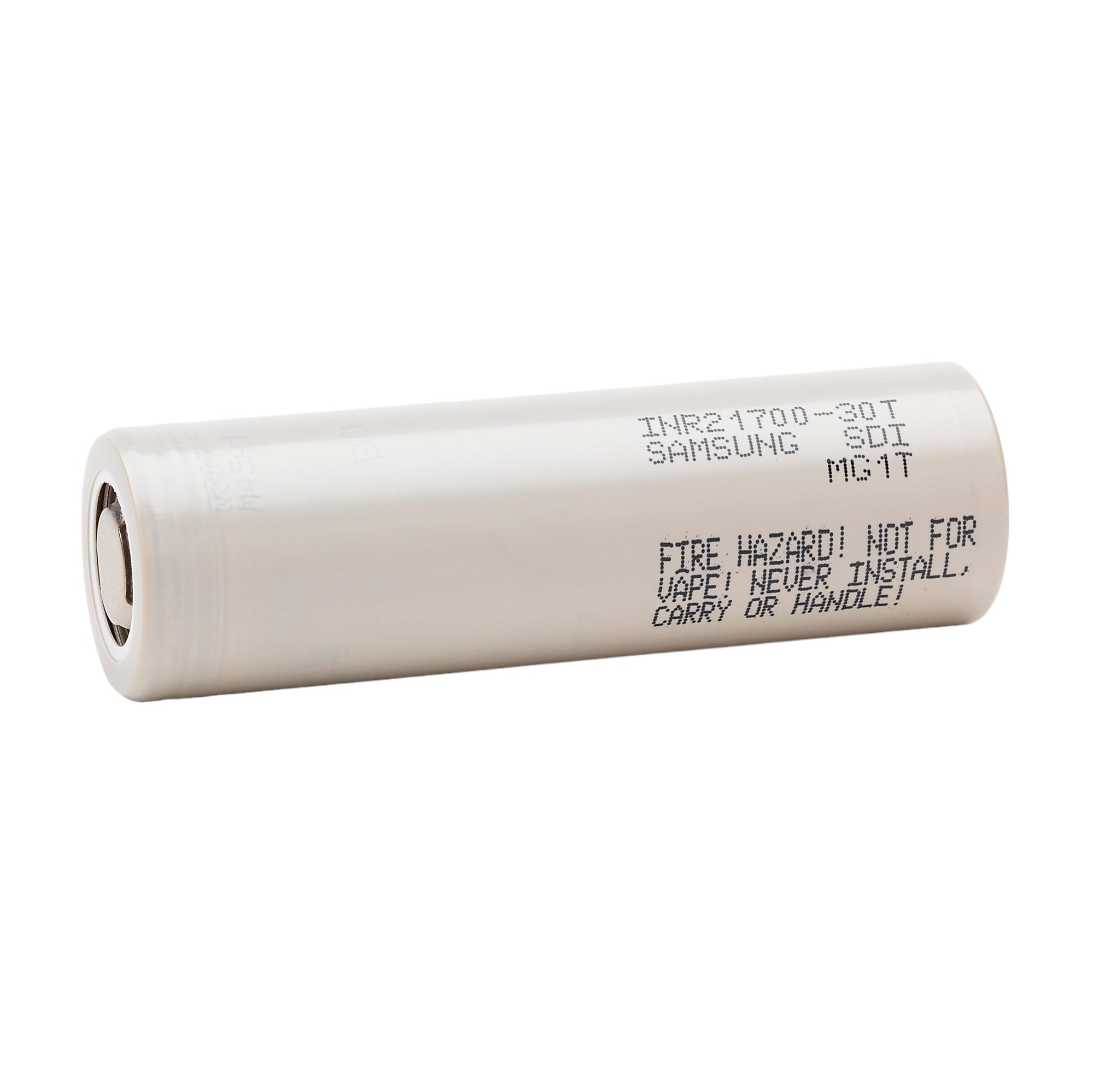

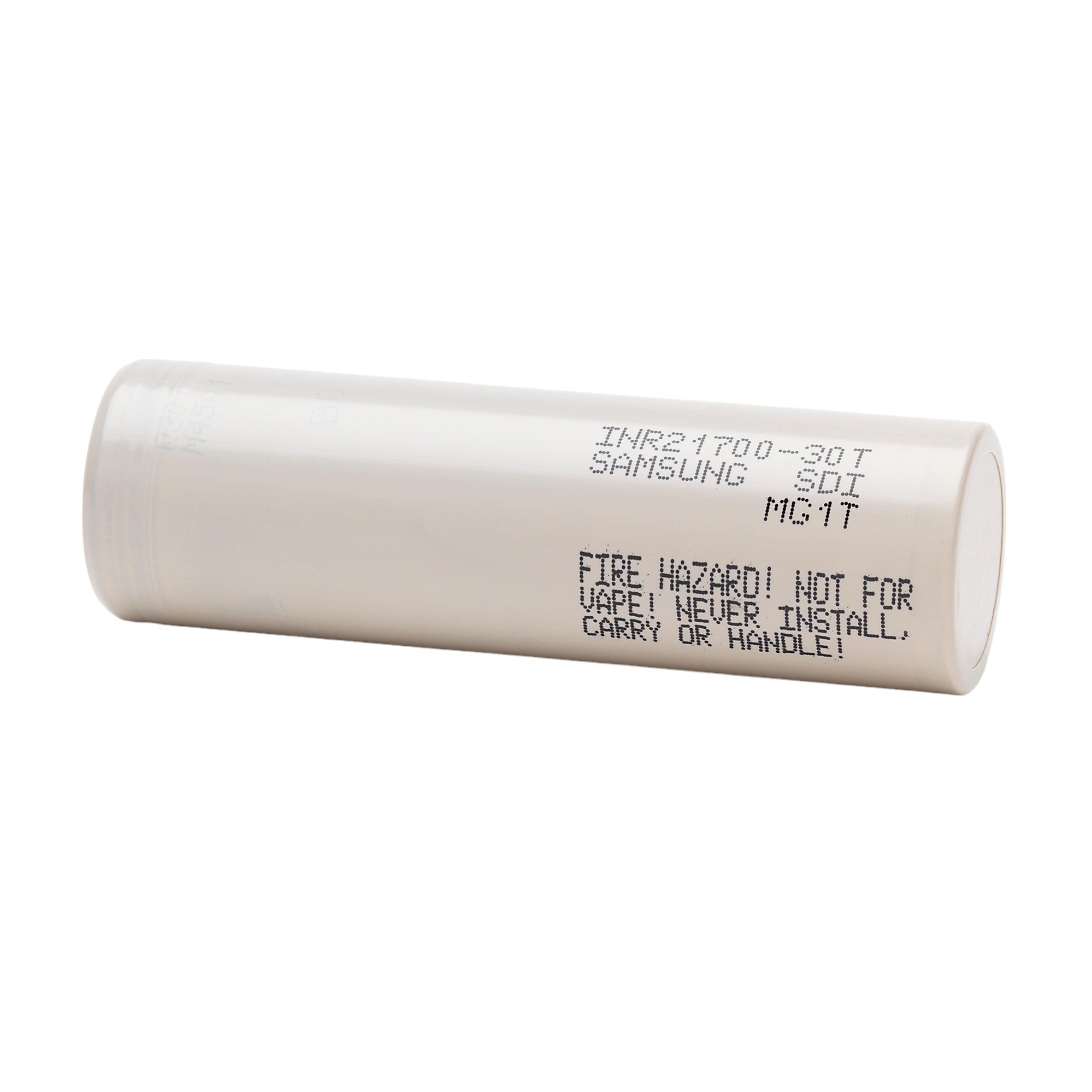

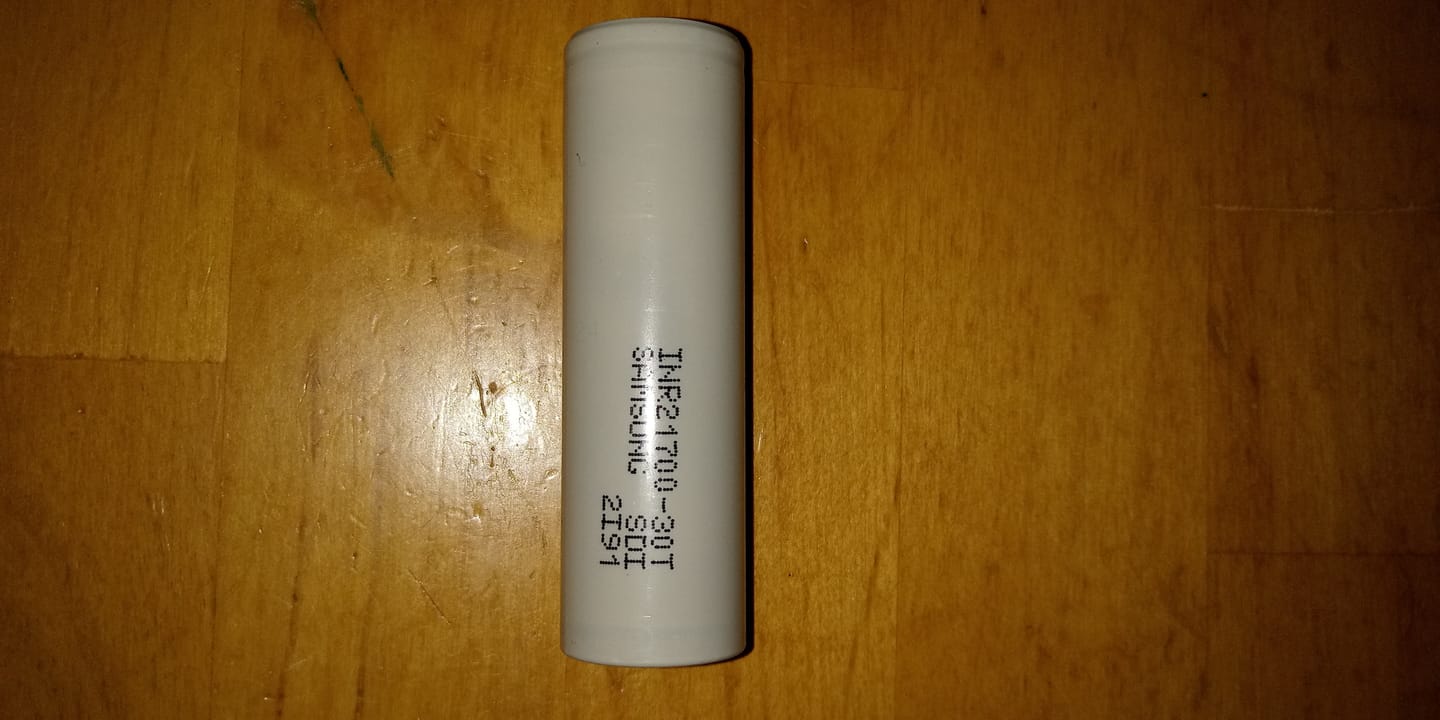

The Samsung 30T 21700 battery delivers exceptional power in a compact, high-performance cell. Built to handle heavy current demands, this battery provides a strong 35A continuous discharge while maintaining a reliable 3000mAh capacity. Its flat top design makes it a dependable choice for professional battery assemblies and high-power applications.
Applications / Uses
- High-demand power tools
- Portable industrial equipment
- Electric transportation systems
- Energy storage packs
- Custom lithium-ion battery builds
SPECIFICATIONS
| Manufacturer: | Samsung SDI |
| Model: | INR21700-30T |
| Battery Size: | 21700 |
| Positive Terminal: | Flat Top |
| Nominal Capacity: | 3000mAh |
| Max Continuous Discharge: | 35A |
| Nominal Voltage: | 3.6V |
| Maximum Voltage: | 4.2V |
| Discharge Cut-Off Voltage: | 2.5V |
| Protected: | No, unprotected |
| Rechargeable: | Yes |
| Approx. Dimensions: | 21.1mm × 70.2mm |
| Approx. Weight: | 68.2g |
| Data Specification Sheet: | Samsung 30T Datasheet |
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or for e-cigarettes, vaporizers, or similar devices.
-
Thermal Runaway: A chain reaction where heat from a failing battery
causes further overheating, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid damage, and store batteries in a cool, dry place.

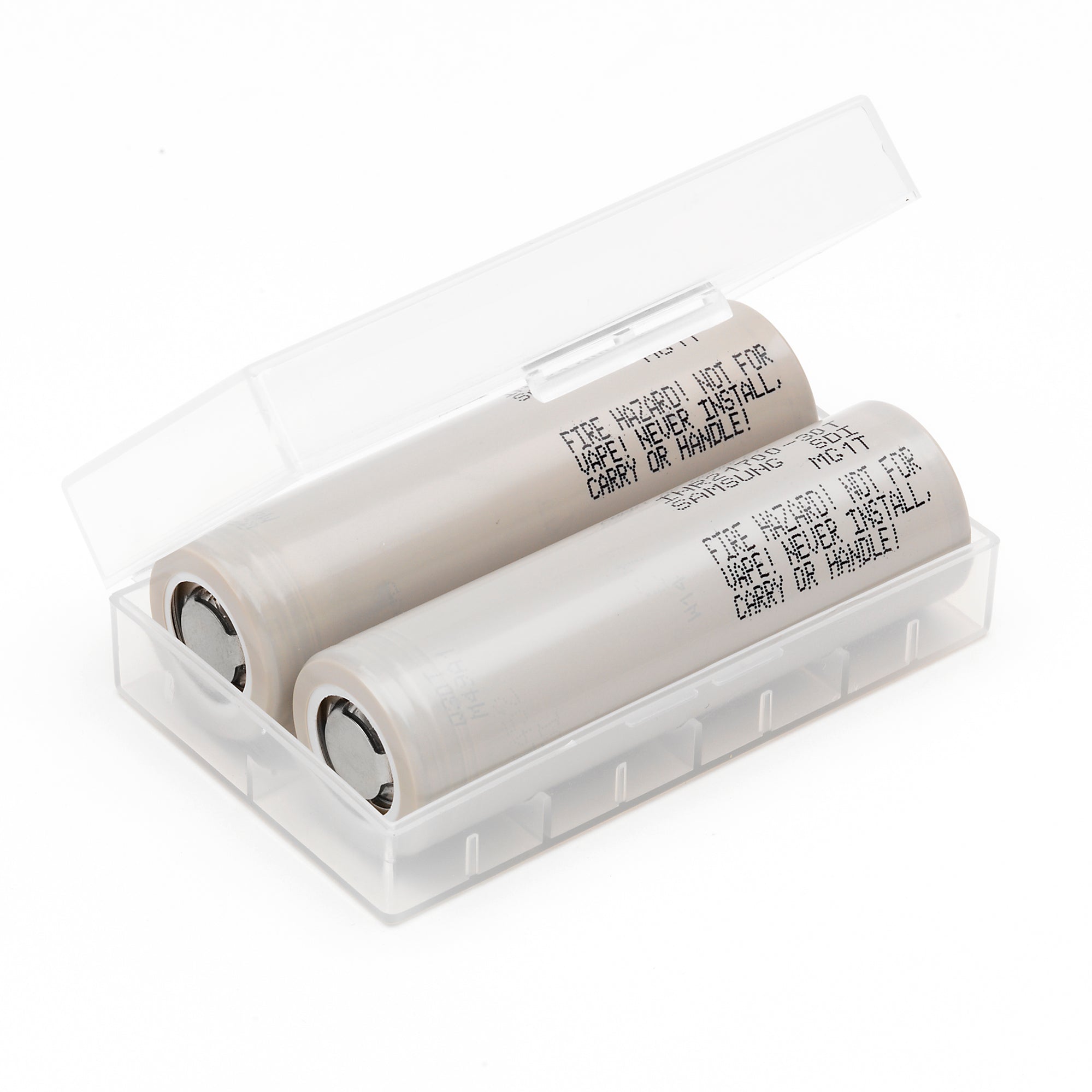

- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. Continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger specifically designed for lithium-ion batteries and ensure the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to extreme heat, fire, or liquids.
- Do not short circuit, puncture, crush, or modify the battery.
- Do not charge or discharge beyond the manufacturer’s voltage range.
- Do not dispose of in regular trash—always recycle at approved facilities.
- Emergency Response: If a cell shows signs of thermal runaway (e.g., smoke, swelling, hissing, or heat), stop use immediately and, if it can be done safely, move it to a non-flammable surface (e.g., concrete or sand) away from combustible materials. Lithium-ion cells burn as Class B fires — use an ABC / dry-chemical fire extinguisher, or douse with large amounts of water to cool the cell and prevent the fire from spreading. Do not rely on a small spray; thorough cooling is required, and cells can reignite from residual heat, so monitor the area afterward. (Class D extinguishers are intended for lithium-metal batteries, not lithium-ion.) For any fire beyond a single small cell, evacuate and call emergency services.
