Description

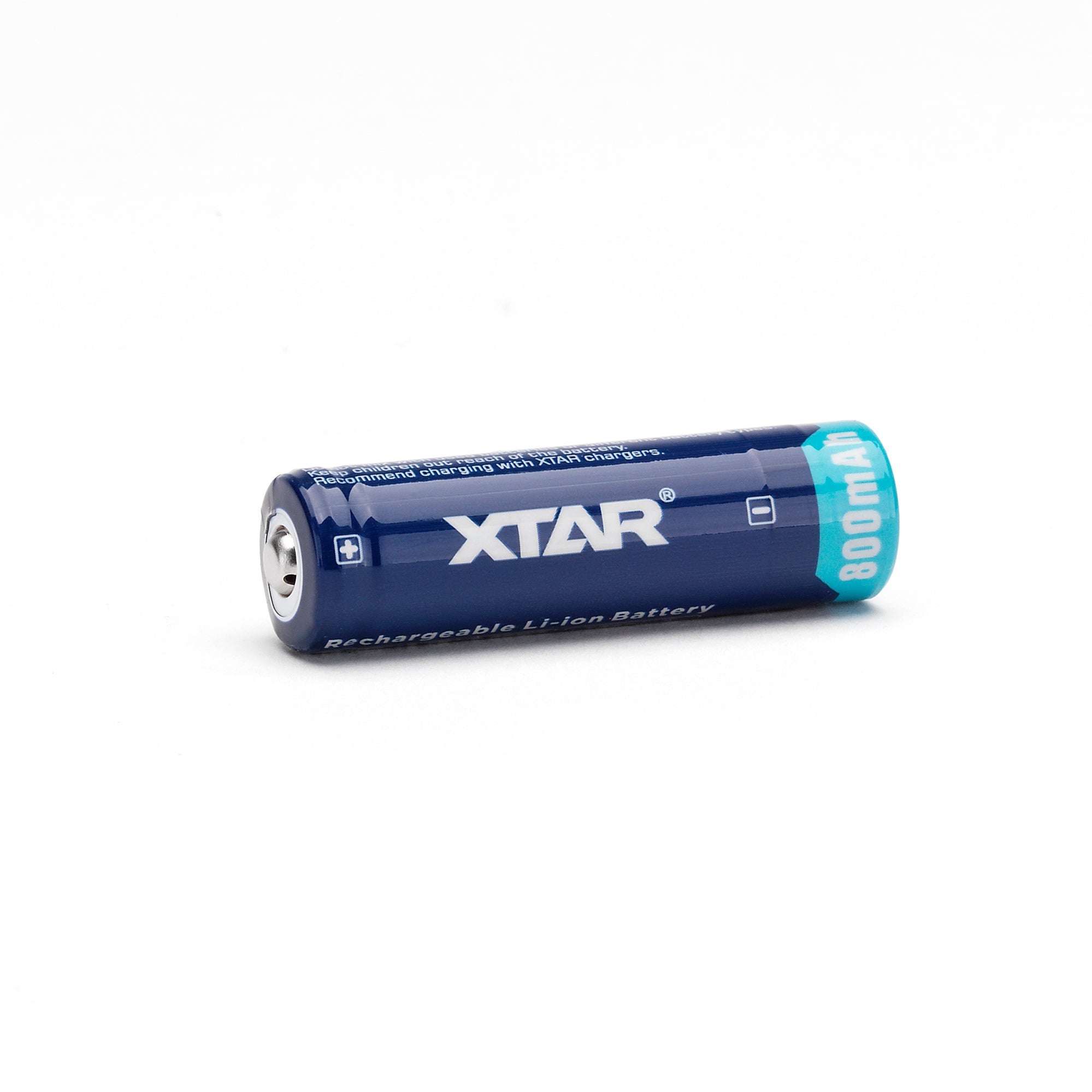

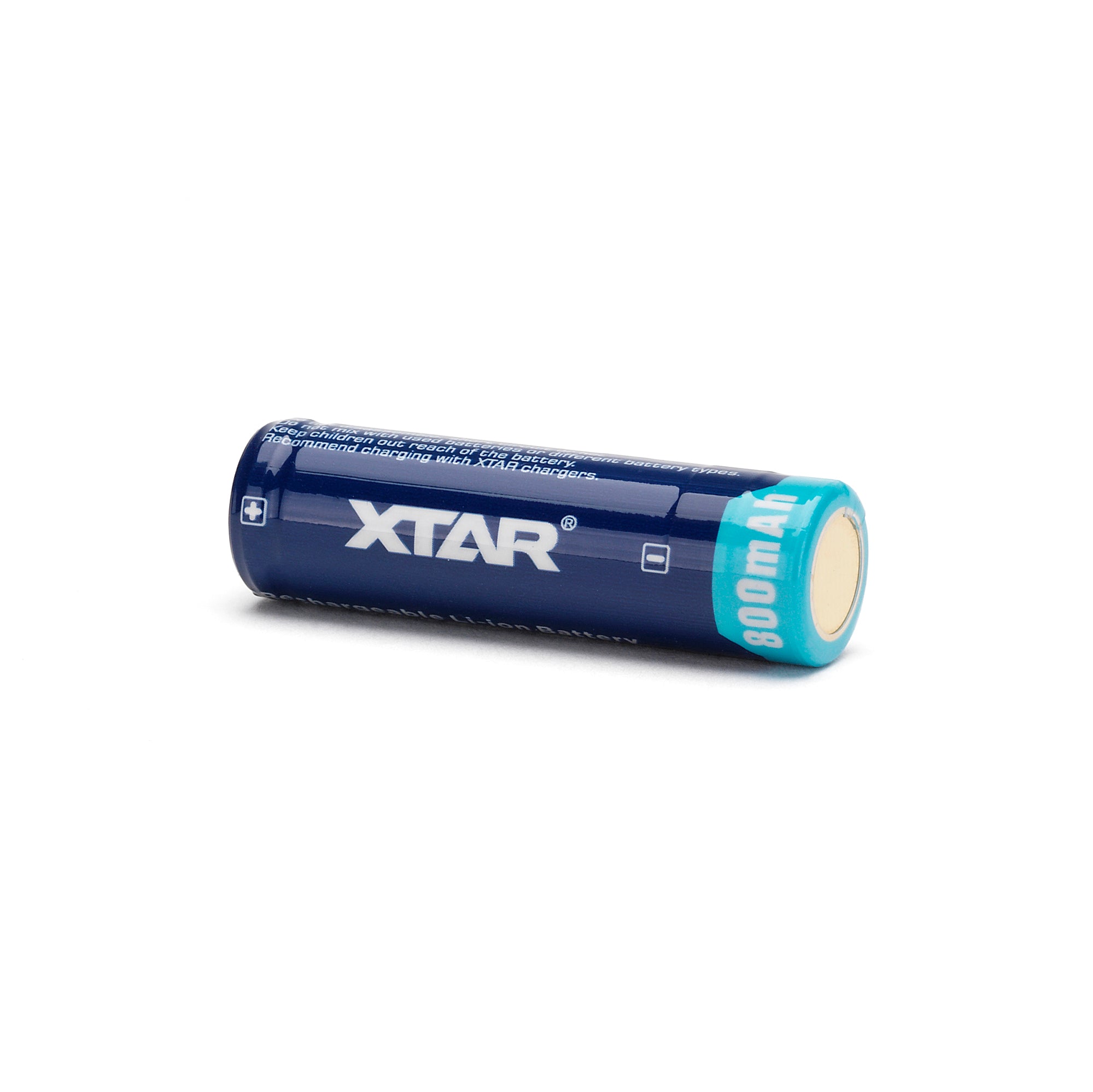

Power up your devices with the XTAR 14500 800mAh Battery, designed to provide reliable and long-lasting energy. This battery features a protected button top with a PCB (Protection Circuit Board) ensuring safety against overcharging, deep discharge, and short circuits. With a nominal capacity of 800mAh and a maximum continuous discharge rate of 2.5A, it's ideal for high-performance electronics requiring consistent power delivery. The nominal voltage of 3.7V reaches up to 4.2V when fully charged, housed in a compact form factor that fits perfectly in various portable devices.
Please note this is a button top protected 18650 battery and it is longer than a standard flat top 18650 battery. The PCB offers protection from over charge, over discharge, over current, and short circuit. This cell has an additional outer wrapper and insulator which must not be removed.
- High Capacity: Offers an 800mAh capacity for substantial runtime, suitable for everyday devices.
- Safe and Protected: Equipped with a PCB for comprehensive protection against overcharging, excessive discharge, and short circuits.
- Optimized Performance: Delivers a 2.5A max continuous discharge, providing steady power when you need it most.
- Compact Dimensions: Perfectly sized at 14.13mm x 50.68mm, the battery fits easily into smaller electronic devices.
- Lightweight Design: Weighing only 20.2g, it offers portability without adding bulk to your gear.
SPECIFICATIONS
| Manufacturer: | XTAR |
| Size: | 14500 |
| Positive Terminal: | Button Top |
| Protected: | Yes, PCB. |
| Nominal Capacity: | 800mAh |
| Discharge Current: | .8A Max Continuous (PCB limit) |
| Nominal Voltage: | 3.7V |
| Maximum Voltage: | 4.2V |
| Approx. Dimensions: | 14.13mm x 50.68mm |
| Approx. Weight: | 20.2g |
| Country of Origin: | China |
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.

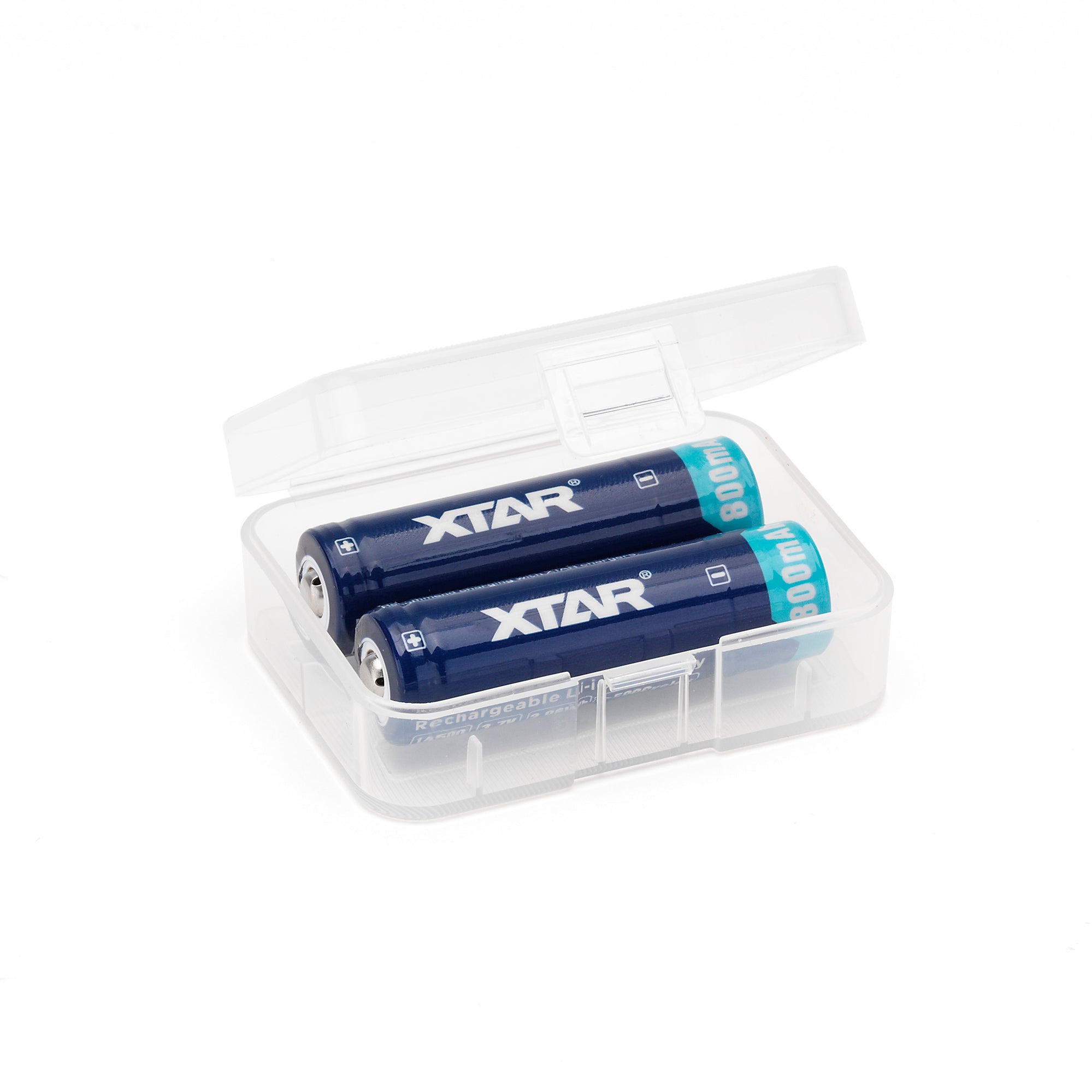

- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If the battery overheats, emits smoke, or shows other signs of failure, stop using it immediately. Move the battery to a safe, non-flammable surface (e.g., sand or concrete) and follow emergency protocols.
Disclaimer
18650Battery.com is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
